Hydraulic Rubber Mold Vacuum Vulcanizing Press Machine Semi Automatic

Hydraulic Rubber Mold Vacuum Vulcanizing Press Machine Semi Automatic

  • High Light

    Rubber Mold Vacuum Vulcanizing Press Machine

    ,

    Semi Automatic Vacuum Vulcanizing Press Machine

  • NAME
    Flat Vulcanizing Machine
  • Automatic Grade
    Semi-Automatic, Automatic, Manual
  • Price
    Competitive
  • Core Components
    PLC
  • Dimension(L*W*H)
    1400*2000*1600MM
  • Voltage
    AC380V±5%
  • Power (kW)
    12
  • Keyword 1
    Press Vulcanized Rubber Mold Hydraulic
  • Keyword 2
    Rubber Vacuum Vulcanizing Press Machine
  • Keyword 3
    Vulcanizing Rubber Sole Press Machine
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-B09-1
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

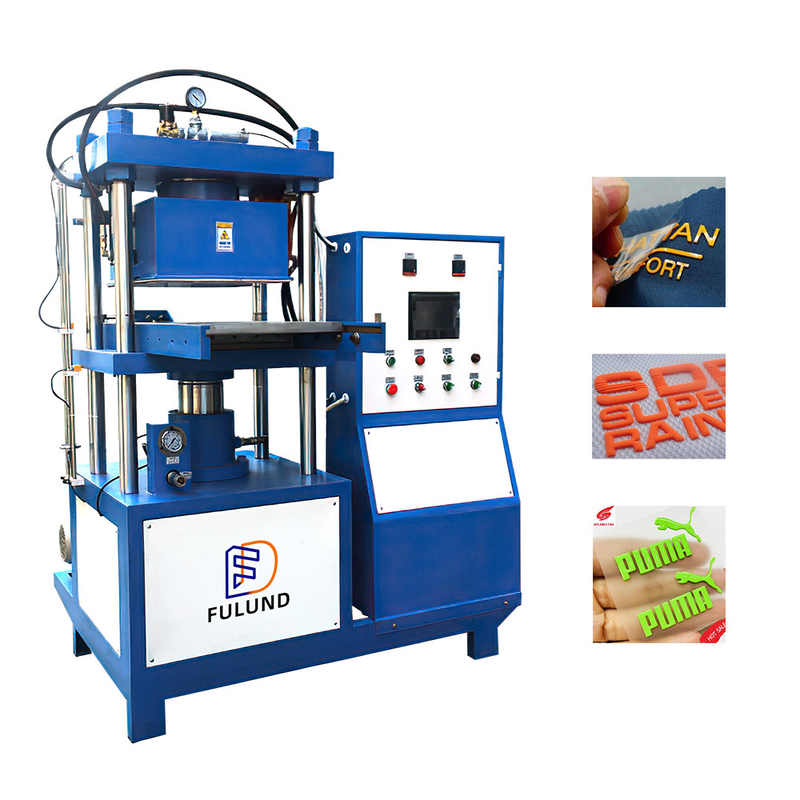

Hydraulic Rubber Mold Vacuum Vulcanizing Press Machine Semi Automatic

Press Vulcanized Rubber Mold Hydraulic Rubber Vacuum Vulcanizing Press Machine



Silicon rubber vacuum compression molding machine price

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.



Features:

1. These series products are high efficiency, energy-saving, stable and reliable.

2. Standard configurations are full computer, the electro-hydraulic proportional control system, high degree of automation. It can provide special configuration for users with computerized frequency conversion power- saving control system of independent intellectual property rights.

3. Using large screen LCD to show parameters, the interface is intuitive and easy to operate. Heating plate temperature control adopts computer PID control with high accuracy.

4. Using electro-hydraulic proportional control system with high efficiency, low noise, long service life.

5. Adopting the world's top brand vacuum components, vacuum system is high efficiency and reliable.

6. With fast mould-opening &closing, production efficiency is high.

7. With automatic mould in &out mechanism, 3RT injector mechanism, low labor intensity and no-damage to the mould.



Model 30T 40T 50(63)T
Temperature regulation At room temperature ~ 300 At room temperature ~ 300 At room temperature ~ 300
normal temperature-200 degrees heating speed about15min about15min about15min
Temperature precision automatic/±2°C automatic/±2°C automatic/±2°C
Machine operation control Circuit control Circuit PLC touch-screen
Drive way hydraulic hydraulic hydraulic
pressure 10-20Mpa 10-20Mpa 10-20Mpa
power supply AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz
Power: 12KW 15KW 18KW
Motor Power 4KW 4KW 5.5KW
Heating plate distance 200MM 200MM 200MM
Oil cylinder stroke 200MM 200MM 200MM
Movement mode of skateboard Automatic Automatic Automatic
Speed of rise and fall ≥15mm/s ≥15mm/s ≥25mm/s
Pressure regulation mode Pressure relay Pressure relay Digital modulation
Hot pressing time 0.1s to 999s 0.1s to 999s 0.1s to 999s
Maximum pressure 300KN 400KN 500(630)KN
Sliding plate area 440 * 500MM 440 * 500MM 460 * 550MM
Heating plate area

400 × 400MM



400 * 400MM



400 * 450MM



host volume 1400 × 2000 × 1600MM 1400 × 2000 × 1700MM 1500 × 2000 × 1800MM
weight 1200KG 1350KG

1500KG
