Vacuum Compression Rubber Molding Machine Vulcanization Press

Vacuum Compression Rubber Molding Machine Vulcanization Press

  • High Light

    Vacuum Compression Rubber Molding Machine

    ,

    Vulcanization Press Rubber Molding Machine

  • NAME
    Flat Vulcanizing Machine
  • Automatic Grade
    Semi-Automatic, Automatic, Manual
  • Price
    Competitive
  • Core Components
    PLC
  • Dimension(L*W*H)
    1400*2000*1600MM
  • Voltage
    AC380V±5%
  • Power (kW)
    12
  • Keyword 1
    Compression Molding
  • Keyword 2
    Rubber Machine
  • Keyword 3
    Vulcanization Press
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-B09-1
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

Vacuum Compression Rubber Molding Machine Vulcanization Press

Vacuum Compression Molding rubber machine vulcanization press

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.



Features:

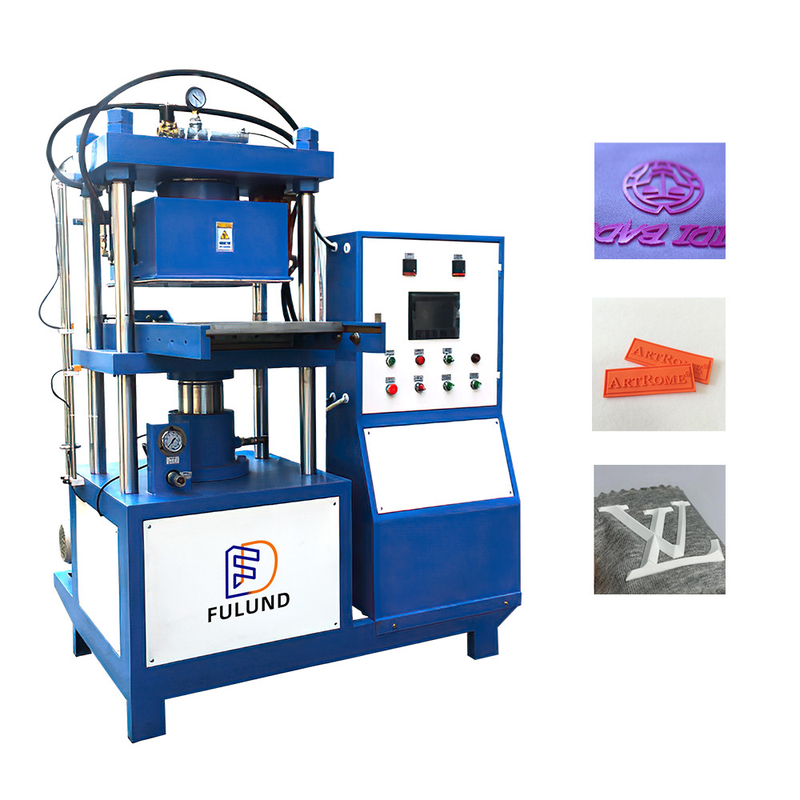

1. Stable structure: it adopts the classic 4-column and 3-beam structure, the medium carbon steel is thickened on the upper seat and the thickened and hardened columns ensure the structure is stable.

2. With a vacuum pump: before pressing the material, vacuum pump get work and get out of the air form material, which is convenient and make sure there are no bubble in the product.

3. Precision clamping: using technical plane pressure equalization correction, maximum pressure(200Kg) nut leveling device, can increase the parallelism of the upper and lower heating plates to 0.05mm.

4. Precise temperature control: adjustable from room temperture to 400℃,using intelligent temperature control the temperature fluctuation range within ±2℃

5. Easy to operate: PLC combined with touch screen, whether it is debugging or production can be operated directly and easily.

6. Easy to adjust the pressure: there is a botton below the PLC screen and you can adjust the adjust the pressing pressure by hand easily and visually, which is convenient when you want to press some flexible pattern, like cotton and the pad.





Model 30T 40T 50(63)T
Temperature regulation At room temperature ~ 300 At room temperature ~ 300 At room temperature ~ 300
normal temperature-200 degrees heating speed about15min about15min about15min
Temperature precision automatic/±2°C automatic/±2°C automatic/±2°C
Machine operation control Circuit control Circuit PLC touch-screen
Drive way hydraulic hydraulic hydraulic
pressure 10-20Mpa 10-20Mpa 10-20Mpa
power supply AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz
Power: 12KW 15KW 18KW
Motor Power 4KW 4KW 5.5KW
Heating plate distance 200MM 200MM 200MM
Oil cylinder stroke 200MM 200MM 200MM
Movement mode of skateboard Automatic Automatic Automatic
Speed of rise and fall ≥15mm/s ≥15mm/s ≥25mm/s
Pressure regulation mode Pressure relay Pressure relay Digital modulation
Hot pressing time 0.1s to 999s 0.1s to 999s 0.1s to 999s
Maximum pressure 300KN 400KN 500(630)KN
Sliding plate area 440 * 500MM 440 * 500MM 460 * 550MM
Heating plate area

400 × 400MM



400 * 400MM



400 * 450MM



host volume 1400 × 2000 × 1600MM 1400 × 2000 × 1700MM 1500 × 2000 × 1800MM
weight 1200KG 1350KG

1500KG
