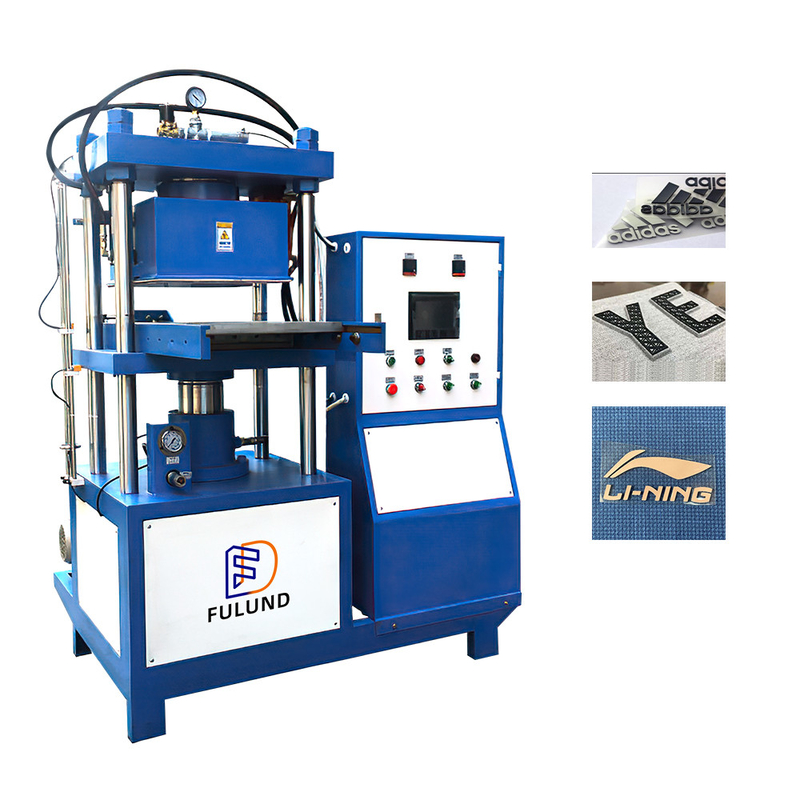

AC380V Silicone Products Making Machine Modern Vacuum Rubber Curing Vulcanizing Rolling Press

AC380V Silicone Products Making Machine Modern Vacuum Rubber Curing Vulcanizing Rolling Press

  • High Light

    AC380V Silicone Products Making Machine

    ,

    Vulcanizing Rolling Silicone Products Making Machine

  • NAME
    Flat Vulcanizing Machine
  • Automatic Grade
    Semi-Automatic, Automatic, Manual
  • Price
    Competitive
  • Core Components
    PLC
  • Dimension(L*W*H)
    1400*2000*1600MM
  • Voltage
    AC380V±5%
  • Power (kW)
    12
  • Keyword 1
    Vacuum Rubber Vulcanizing Press
  • Keyword 2
    Rubber Curing Vulcanizing Press
  • Keyword 3
    Rubber Vulcanizing Rolling Press
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-B09-1
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

AC380V Silicone Products Making Machine Modern Vacuum Rubber Curing Vulcanizing Rolling Press

Modern Fashionable Vacuum Rubber Curing Vulcanizing Rolling Press

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.



Product Description
The machine applies to production of all kinds of O-rings, rubber keyboards, medical rubber parts and automotive rubber parts, etc. As the most economic and traditional type, it features simple operation and rapid molding and can support 3-layer mold release.

Product Feature


1. Through computer pressure and strain analysis of machine structure, this machine has a long service life;
2. Special heat plate design ensures even temperature distribution and one-step molding;
3. Heat plate 40 Cr nitrogen treatment ensures precision and long service life;
4. High-efficiency rapid vacuum system ensures no starved feeding and finished products contain no bubble.
5. Single machine and double machine for option;
6. 2RT/3RT/4RT for option;
7. Double motors:Doble motor and double oil pump,control and maintain convenient.




Model 30T 40T 50(63)T
Temperature regulation At room temperature ~ 300 At room temperature ~ 300 At room temperature ~ 300
normal temperature-200 degrees heating speed about15min about15min about15min
Temperature precision automatic/±2°C automatic/±2°C automatic/±2°C
Machine operation control Circuit control Circuit PLC touch-screen
Drive way hydraulic hydraulic hydraulic
pressure 10-20Mpa 10-20Mpa 10-20Mpa
power supply AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz
Power: 12KW 15KW 18KW
Motor Power 4KW 4KW 5.5KW
Heating plate distance 200MM 200MM 200MM
Oil cylinder stroke 200MM 200MM 200MM
Movement mode of skateboard Automatic Automatic Automatic
Speed of rise and fall ≥15mm/s ≥15mm/s ≥25mm/s
Pressure regulation mode Pressure relay Pressure relay Digital modulation
Hot pressing time 0.1s to 999s 0.1s to 999s 0.1s to 999s
Maximum pressure 300KN 400KN 500(630)KN
Sliding plate area 440 * 500MM 440 * 500MM 460 * 550MM
Heating plate area

400 × 400MM



400 * 400MM



400 * 450MM



host volume 1400 × 2000 × 1600MM 1400 × 2000 × 1700MM 1500 × 2000 × 1800MM
weight 1200KG 1350KG

1500KG
