High Speed Vacuum Compression Molding Machine Energy Saving

High Speed Vacuum Compression Molding Machine Energy Saving

  • High Light

    High Speed Vacuum Compression Molding Machine

    ,

    Energy Saving Vacuum Compression Molding Machine

  • NAME
    Flat Vulcanizing Machine
  • Automatic Grade
    Semi-Automatic, Automatic, Manual
  • Price
    Competitive
  • Core Components
    PLC
  • Dimension(L*W*H)
    1400*2000*1600MM
  • Voltage
    AC380V±5%
  • Power (kW)
    12
  • Keyword 1
    Compression Molding Machine Price
  • Keyword 2
    Vacuum Compression Molding Machine
  • Keyword 3
    Molding Machine
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-B09-1
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

High Speed Vacuum Compression Molding Machine Energy Saving

High Speed Energy-Saving Vacuum Compression Molding Machine Price

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.



Automatic Vacuum Compression Molding Machine is suitable for vulcanization molding of Natural Rubber, Acrylonitrile Rubber, EPDM Rubber, Chloroprene Rubber and Silicone, and some rubber products produced by vulcanization molding, such as frame oil seal, seal ring, organ sets ect. It is also be used to the forming and shallow tensile technique of bakelite thermosetting materials,magnetic material and powder metallurgy products.

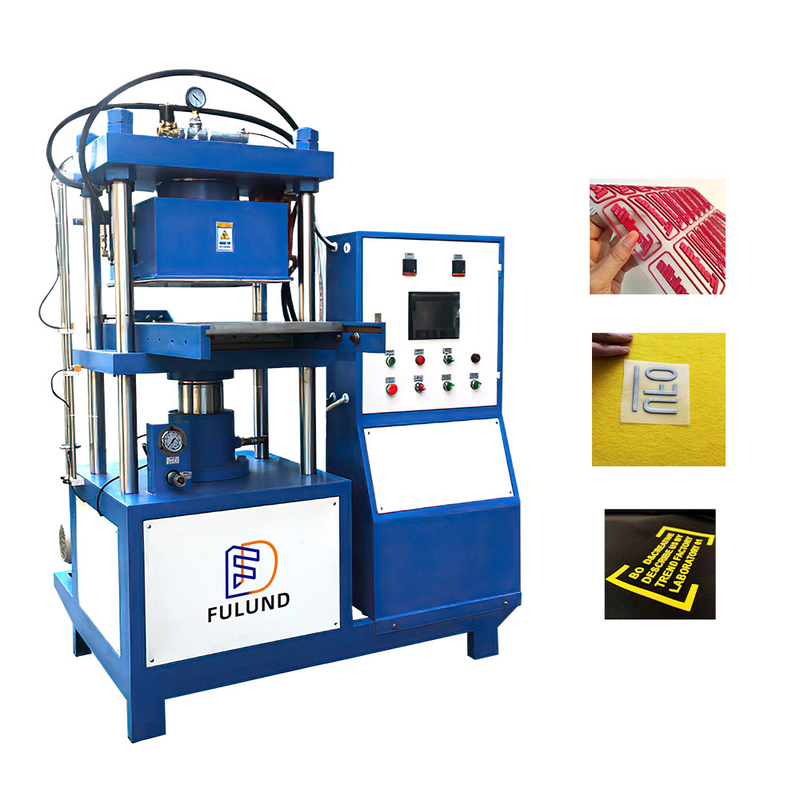

This vacuum compression molding machine collects vacuum and vulcanization molding technology in one machine. It is not only high automatically and efficient, but also improves quality of the products efficiently. It is your ideal one for the rubber material products.





Model 30T 40T 50(63)T
Temperature regulation At room temperature ~ 300 At room temperature ~ 300 At room temperature ~ 300
normal temperature-200 degrees heating speed about15min about15min about15min
Temperature precision automatic/±2°C automatic/±2°C automatic/±2°C
Machine operation control Circuit control Circuit PLC touch-screen
Drive way hydraulic hydraulic hydraulic
pressure 10-20Mpa 10-20Mpa 10-20Mpa
power supply AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz
Power: 12KW 15KW 18KW
Motor Power 4KW 4KW 5.5KW
Heating plate distance 200MM 200MM 200MM
Oil cylinder stroke 200MM 200MM 200MM
Movement mode of skateboard Automatic Automatic Automatic
Speed of rise and fall ≥15mm/s ≥15mm/s ≥25mm/s
Pressure regulation mode Pressure relay Pressure relay Digital modulation
Hot pressing time 0.1s to 999s 0.1s to 999s 0.1s to 999s
Maximum pressure 300KN 400KN 500(630)KN
Sliding plate area 440 * 500MM 440 * 500MM 460 * 550MM
Heating plate area

400 × 400MM



400 * 400MM



400 * 450MM



host volume 1400 × 2000 × 1600MM 1400 × 2000 × 1700MM 1500 × 2000 × 1800MM
weight 1200KG 1350KG

1500KG
