Dongguan Fulund Intelligent Technology Co., Ltd. 86-0769-21687193 sales@fulund-tech.com
Vacuum Rubber Mold Vulcanizer Machine Silicone Plate Vulcanizing Hydraulic Press

Vacuum Rubber Mold Vulcanizer Machine Silicone Plate Vulcanizing Hydraulic Press

  • High Light

    Vacuum Rubber Mold Vulcanizer Machine

    ,

    Silicone Rubber Mold Vulcanizer Machine

  • NAME
    Flat Vulcanizing Machine
  • Automatic Grade
    Semi-Automatic, Automatic, Manual
  • Price
    Competitive
  • Core Components
    PLC
  • Dimension(L*W*H)
    1400*2000*1600MM
  • Voltage
    AC380V±5%
  • Power (kW)
    12
  • Keyword 1
    Silicone Plate Vulcanizing Hydraulic Press
  • Keyword 2
    Vacuum Rubber Mould Vulcanizer Machine
  • Keyword 3
    Vacuum Silicone Plate Vulcanizing Hydraulic Press
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-B09-1
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

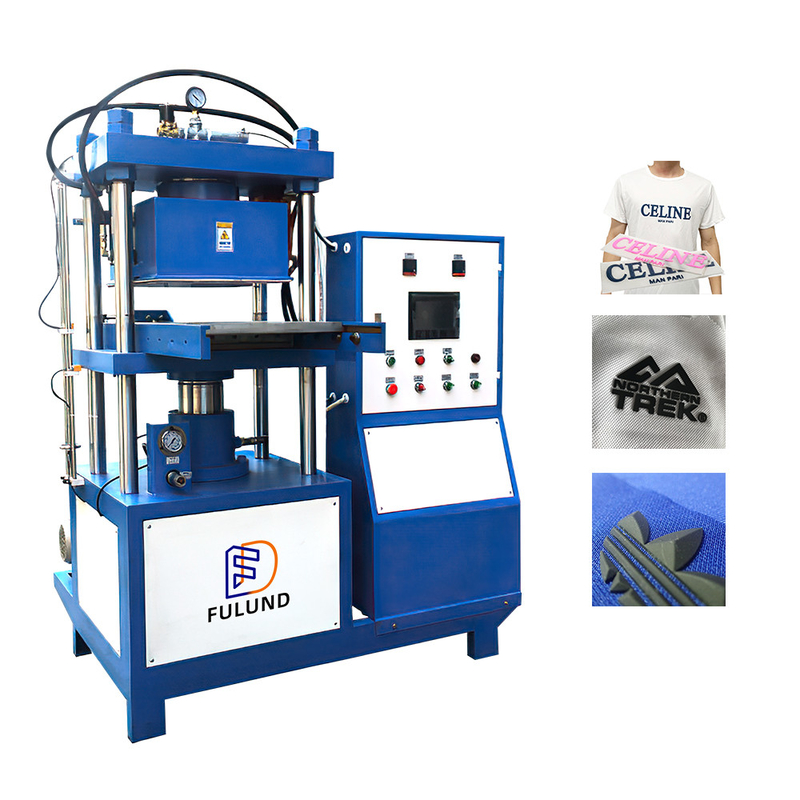

Vacuum Rubber Mold Vulcanizer Machine Silicone Plate Vulcanizing Hydraulic Press

Vacuum Rubber Mould Vulcanizer Machine Vacuum Silicone Plate Vulcanizing Hydraulic Press

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.



Details of the rubber vulcanizer

1.Material of steel plate:

We use hight quality carbon steel Q-235,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel

2.Weldment of frame : world technique

Welded together as a whole part,Stewing fire treatment after weldment.

(Carbon dioxide gas shielded welding,alloyed welding wire).submerged arc welding, VSR treatment after weldment.

3.Piston:

the material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.

4.Heating way&precision temperature control:

Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity) range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it )

Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C

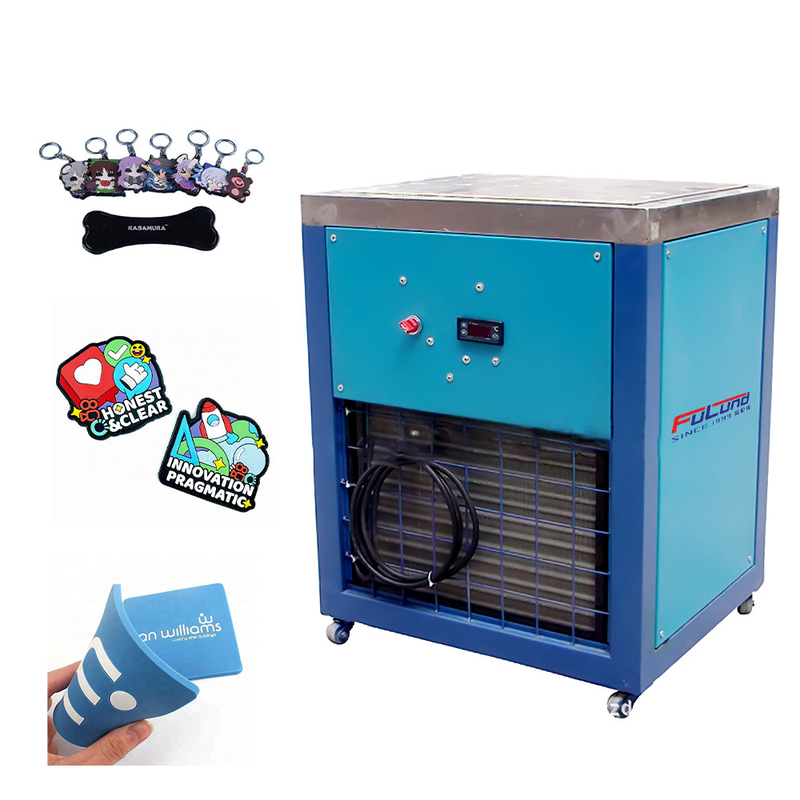

Also we can produce the machine with water cooling system.

5.Hydraulic system: (PLC control)

the professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.



Model 30T 40T 50(63)T
Temperature regulation At room temperature ~ 300 At room temperature ~ 300 At room temperature ~ 300
normal temperature-200 degrees heating speed about15min about15min about15min
Temperature precision automatic/±2°C automatic/±2°C automatic/±2°C
Machine operation control Circuit control Circuit PLC touch-screen
Drive way hydraulic hydraulic hydraulic
pressure 10-20Mpa 10-20Mpa 10-20Mpa
power supply AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz
Power: 12KW 15KW 18KW
Motor Power 4KW 4KW 5.5KW
Heating plate distance 200MM 200MM 200MM
Oil cylinder stroke 200MM 200MM 200MM
Movement mode of skateboard Automatic Automatic Automatic
Speed of rise and fall ≥15mm/s ≥15mm/s ≥25mm/s
Pressure regulation mode Pressure relay Pressure relay Digital modulation
Hot pressing time 0.1s to 999s 0.1s to 999s 0.1s to 999s
Maximum pressure 300KN 400KN 500(630)KN
Sliding plate area 440 * 500MM 440 * 500MM 460 * 550MM
Heating plate area

400 × 400MM



400 * 400MM



400 * 450MM



host volume 1400 × 2000 × 1600MM 1400 × 2000 × 1700MM 1500 × 2000 × 1800MM
weight 1200KG 1350KG

1500KG
