Automatic Vacuum Vulcanizing Press For High Precision Rubber Oil Seal

Automatic Vacuum Vulcanizing Press For High Precision Rubber Oil Seal

  • High Light

    Automatic Vacuum Vulcanizing Press

    ,

    High Precision Rubber Vacuum Vulcanizing Press

  • NAME
    Flat Vulcanizing Machine
  • Automatic Grade
    Semi-Automatic, Automatic, Manual
  • Price
    Competitive
  • Core Components
    PLC
  • Dimension(L*W*H)
    1400*2000*1600MM
  • Voltage
    AC380V±5%
  • Power (kW)
    12
  • Keyword 1
    Silicone Rubber Oil Seal Vacuum Press Vulcanization Machine
  • Keyword 2
    Natural Rubber Seal Vulcanizing Machine For Sale
  • Keyword 3
    Vacuum Vulcanizing Rubber Oil Seal Machine Price
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-B09-1
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

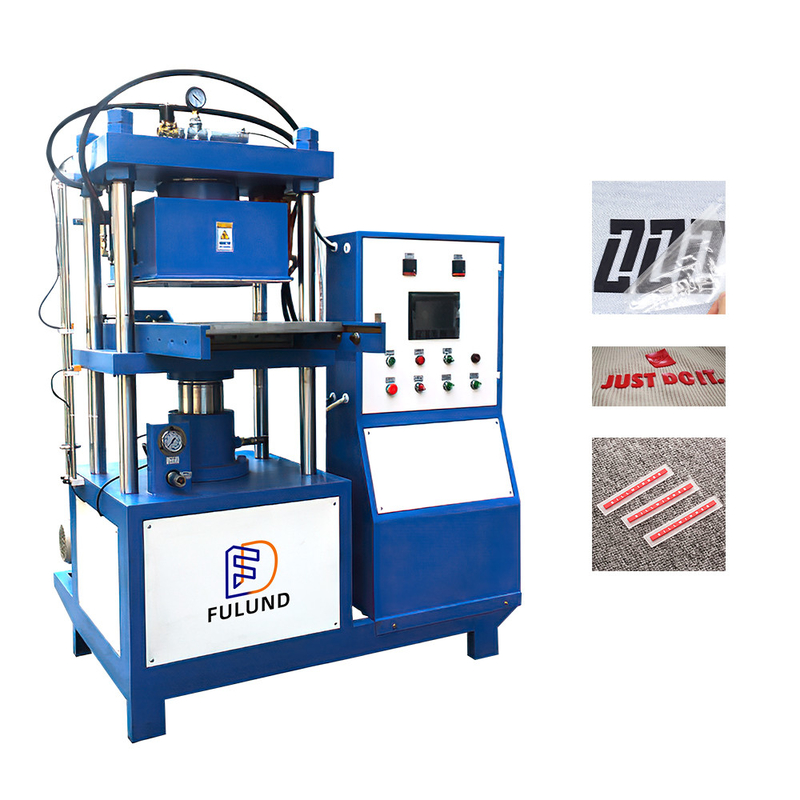

Automatic Vacuum Vulcanizing Press For High Precision Rubber Oil Seal

Automatic Vacuum Vulcanizing Press For High Precision Rubber Oil Seal

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.



1.Characteristics:

1, dynamic template adopts lift cylinder method, realized the empty trip rising fast, slow pressure clamping when molds are shut, shorten the auxiliary time in the process of production, improve the productivity.

2, the secondary institutions, can decomposition layers mould, reduces the manual labor intensity and avoid the mould periodic damage

3 high pressure pump, hydraulic system configuration variables, proportional pressure and flow compound valve hydraulic system, mechanical noise is lower, more smoothly, and energy saving.
4, electrical system adopts PLC control, touch display, parameter setting and the production process monitoring and convenience.
5, semi-automatic, hand move ,2 work mode, operation process, one pace reachs the designated position, the adjustment is convenient.
6, is used in metal insert, complex shape, large section, after the wall system process conditions, such as complex, forming high difficulty of rubber products production.



Model 30T 40T 50(63)T
Temperature regulation At room temperature ~ 300 At room temperature ~ 300 At room temperature ~ 300
normal temperature-200 degrees heating speed about15min about15min about15min
Temperature precision automatic/±2°C automatic/±2°C automatic/±2°C
Machine operation control Circuit control Circuit PLC touch-screen
Drive way hydraulic hydraulic hydraulic
pressure 10-20Mpa 10-20Mpa 10-20Mpa
power supply AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz
Power: 12KW 15KW 18KW
Motor Power 4KW 4KW 5.5KW
Heating plate distance 200MM 200MM 200MM
Oil cylinder stroke 200MM 200MM 200MM
Movement mode of skateboard Automatic Automatic Automatic
Speed of rise and fall ≥15mm/s ≥15mm/s ≥25mm/s
Pressure regulation mode Pressure relay Pressure relay Digital modulation
Hot pressing time 0.1s to 999s 0.1s to 999s 0.1s to 999s
Maximum pressure 300KN 400KN 500(630)KN
Sliding plate area 440 * 500MM 440 * 500MM 460 * 550MM
Heating plate area

400 × 400MM



400 * 400MM



400 * 450MM



host volume 1400 × 2000 × 1600MM 1400 × 2000 × 1700MM 1500 × 2000 × 1800MM
weight 1200KG 1350KG

1500KG
