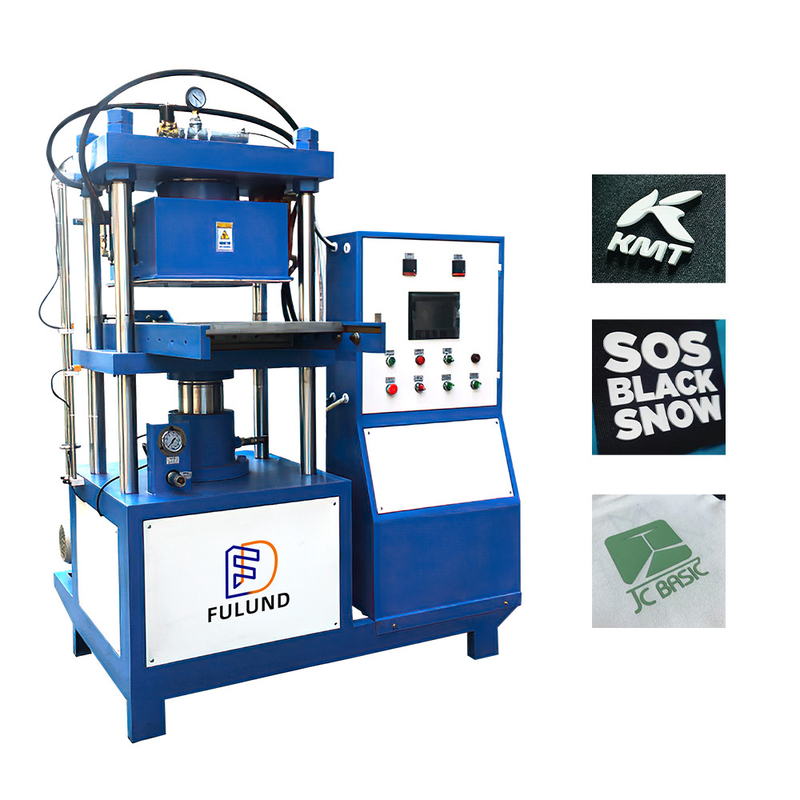

Vacuum curing press Automatic ejection vulcanizing machine
Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.
Other name : rubber vulcanizing press , hydraulic vucanizer , hydraulic vulcanizing press . small curing press , large curing press . rubber daylight press
Type : lab vulcanizer , plate vulcanizer , frame vulcanizer , rubber tile press , vulcanizer for making rubber tire gasket ,large vulcanizer , conveyor belt vulcanizer. rubber tiles vulcanizing press . rubber mat vulcanizer. we can offer main machine and xuailiary also.
Application : lab use ,rubber & plastic vulcanizing , rubber tiles making , rubber gasket making , conveyor belt and so on .
| Model | 30T | 40T | 50(63)T |
| Temperature regulation | At room temperature ~ 300 | At room temperature ~ 300 | At room temperature ~ 300 |
| normal temperature-200 degrees heating speed | about15min | about15min | about15min |
| Temperature precision | automatic/±2°C | automatic/±2°C | automatic/±2°C |
| Machine operation | control Circuit | control Circuit | PLC touch-screen |
| Drive way | hydraulic | hydraulic | hydraulic |
| pressure | 10-20Mpa | 10-20Mpa | 10-20Mpa |
| power supply | AC380V ± 5%50/60Hz | AC380V ± 5%50/60Hz | AC380V ± 5%50/60Hz |
| Power: | 12KW | 15KW | 18KW |
| Motor Power | 4KW | 4KW | 5.5KW |
| Heating plate distance | 200MM | 200MM | 200MM |
| Oil cylinder stroke | 200MM | 200MM | 200MM |
| Movement mode of skateboard | Automatic | Automatic | Automatic |
| Speed of rise and fall | ≥15mm/s | ≥15mm/s | ≥25mm/s |
| Pressure regulation mode | Pressure relay | Pressure relay | Digital modulation |
| Hot pressing time | 0.1s to 999s | 0.1s to 999s | 0.1s to 999s |
| Maximum pressure | 300KN | 400KN | 500(630)KN |
| Sliding plate area | 440 * 500MM | 440 * 500MM | 460 * 550MM |
| Heating plate area |
400 × 400MM
|
400 * 400MM
|
400 * 450MM
|
| host volume | 1400 × 2000 × 1600MM | 1400 × 2000 × 1700MM | 1500 × 2000 × 1800MM |
| weight | 1200KG | 1350KG |
1500KG |
Our products are sold all over the world, you can rest assured.
