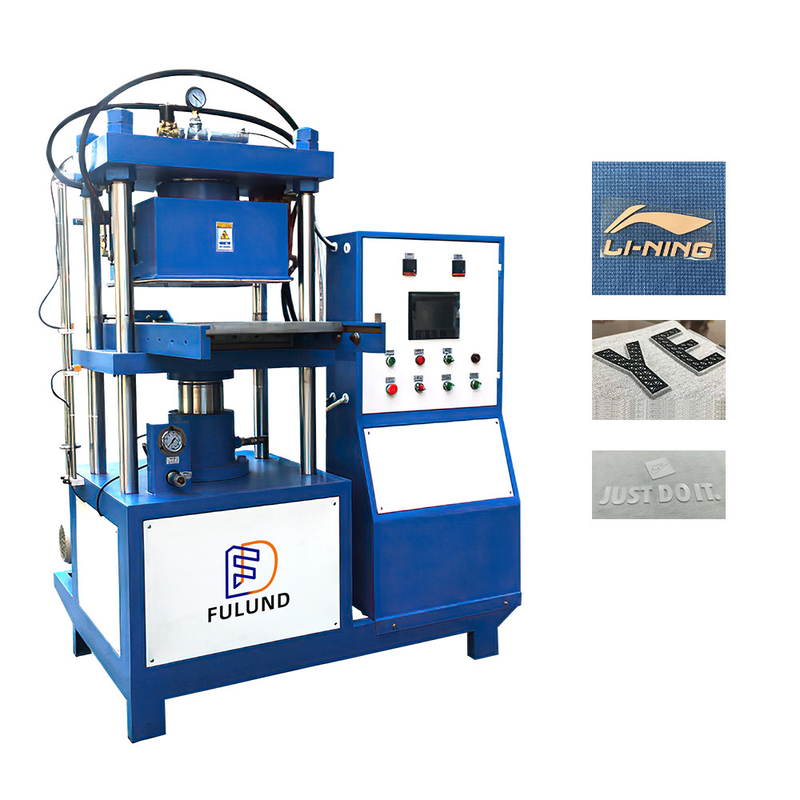

Rubber Vacuum Vulcanizing Press
Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.
1.Main uses:
The Curing Press mainly works for the clampdown of rubber, which can be used as normal hydraulic machine.
We have both column and frame structure.
2.Advantages:
1. Simple and convenient structure, flexible operation,commodious space. The cylinder and plunger are made up of high–quality materials.
2. Hydraulic station and electric cabinet are Located in both sides of the main engine.
3. Conveniently operated.
4. Without oil spilling or off pressure.
5. Excellent reputation.
Model | 30T | 40T | 50(63)T |
Temperature regulation | At room temperature ~ 300 | At room temperature ~ 300 | At room temperature ~ 300 |
normal temperature-200 degrees heating speed | about15min | about15min | about15min |
Temperature precision | automatic/±2°C | automatic/±2°C | automatic/±2°C |
Machine operation | control Circuit | control Circuit | PLC touch-screen |
Drive way | hydraulic | hydraulic | hydraulic |
pressure | 10-20Mpa | 10-20Mpa | 10-20Mpa |
power supply | AC380V ± 5%50/60Hz | AC380V ± 5%50/60Hz | AC380V ± 5%50/60Hz |
Power: | 12KW | 15KW | 18KW |
Motor Power | 4KW | 4KW | 5.5KW |
Heating plate distance | 200MM | 200MM | 200MM |
Oil cylinder stroke | 200MM | 200MM | 200MM |
Movement mode of skateboard | Automatic | Automatic | Automatic |
Speed of rise and fall | ≥15mm/s | ≥15mm/s | ≥25mm/s |
Pressure regulation mode | Pressure relay | Pressure relay | Digital modulation |
Hot pressing time | 0.1s to 999s | 0.1s to 999s | 0.1s to 999s |
Maximum pressure | 300KN | 400KN | 500(630)KN |
Sliding plate area | 440 * 500MM | 440 * 500MM | 460 * 550MM |
Heating plate area |
400 × 400MM
|
400 * 400MM
|
400 * 450MM
|
host volume | 1400 × 2000 × 1600MM | 1400 × 2000 × 1700MM | 1500 × 2000 × 1800MM |
weight | 1200KG | 1350KG |
1500KG |
