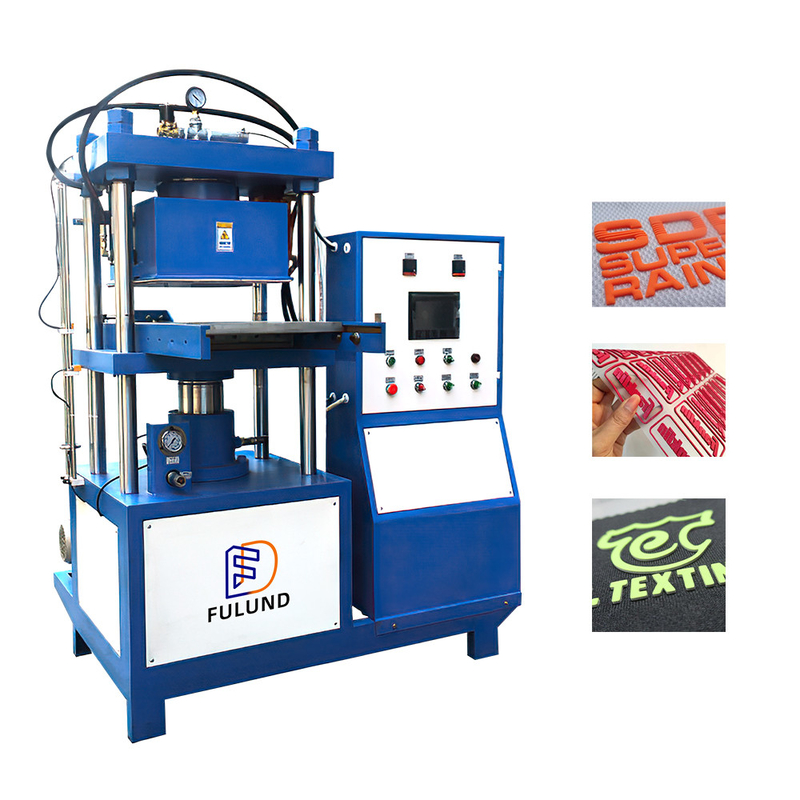

Four Column Vacuum Vulcanizing Machine Silicone Rubber Oil Seal Making Machine For Shoe Label

Four Column Vacuum Vulcanizing Machine Silicone Rubber Oil Seal Making Machine For Shoe Label

  • High Light

    Four column Vacuum Vulcanizing Machine

    ,

    Shoe Label Vacuum Vulcanizing Machine

  • NAME
    Flat Vulcanizing Machine
  • Automatic Grade
    Semi-Automatic, Automatic, Manual
  • Price
    Competitive
  • Core Components
    PLC
  • Dimension(L*W*H)
    1400*2000*1600MM
  • Voltage
    AC380V±5%
  • Power (kW)
    12
  • Keyword 1
    Heat Transfer Label Production Machine
  • Keyword 2
    Glow-in-the-dark Shoe Label Production Machine
  • Keyword 3
    Vacuum Vulcanizing Machine
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-B09-1
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

Four Column Vacuum Vulcanizing Machine Silicone Rubber Oil Seal Making Machine For Shoe Label

Vacuum Vulcanizing Machine silicone rubber oil seal making machine molding machine for make shoe label

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.



Application:

this machine is usedfor pressing all kinds of rubber model products,rubber plate,thermosetting plastic,and so on.

Also can be used as common hydraulic machine,this machine is structured of pillar type bottom cylinder curing,it adopts hydraulic drive,electric relay control,the curing time and pressure can be adjusted,So it has economical advantage of compact structure,high working pressure,high producing efficiency,Operation is safe and reliable,Also we can provide hand control and electric controll as customer"s request .



1. Automatic constant temperature

2. Automatic timing

3. Automatic counting

4. Four column structure



Model 30T 40T 50(63)T
Temperature regulation At room temperature ~ 300 At room temperature ~ 300 At room temperature ~ 300
normal temperature-200 degrees heating speed about15min about15min about15min
Temperature precision automatic/±2°C automatic/±2°C automatic/±2°C
Machine operation control Circuit control Circuit PLC touch-screen
Drive way hydraulic hydraulic hydraulic
pressure 10-20Mpa 10-20Mpa 10-20Mpa
power supply AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz
Power: 12KW 15KW 18KW
Motor Power 4KW 4KW 5.5KW
Heating plate distance 200MM 200MM 200MM
Oil cylinder stroke 200MM 200MM 200MM
Movement mode of skateboard Automatic Automatic Automatic
Speed of rise and fall ≥15mm/s ≥15mm/s ≥25mm/s
Pressure regulation mode Pressure relay Pressure relay Digital modulation
Hot pressing time 0.1s to 999s 0.1s to 999s 0.1s to 999s
Maximum pressure 300KN 400KN 500(630)KN
Sliding plate area 440 * 500MM 440 * 500MM 460 * 550MM
Heating plate area

400 × 400MM



400 * 400MM



400 * 450MM



host volume 1400 × 2000 × 1600MM 1400 × 2000 × 1700MM 1500 × 2000 × 1800MM
weight 1200KG 1350KG

1500KG
