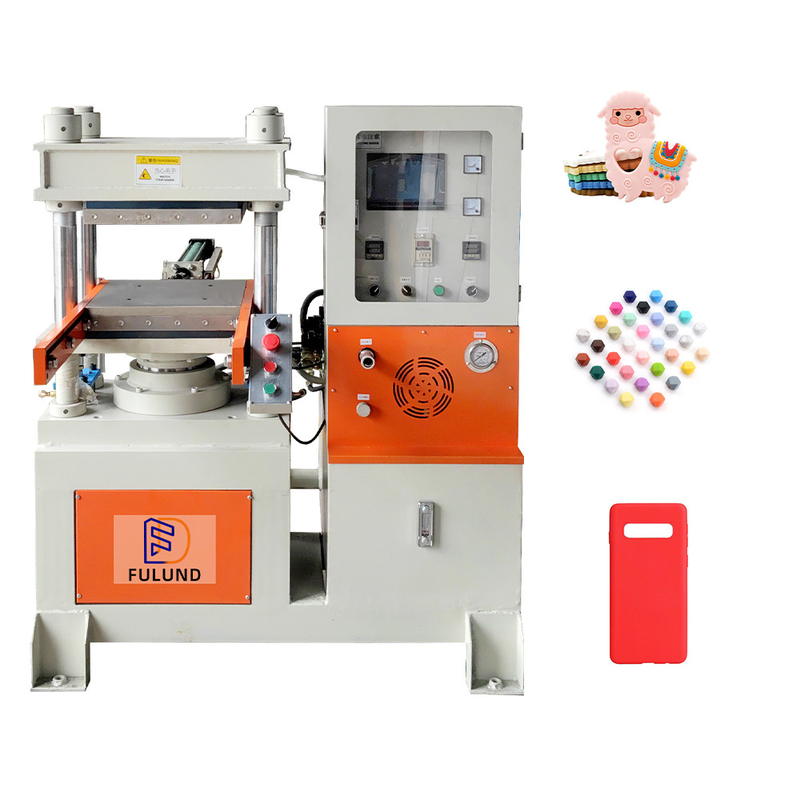

13kW Rubber Vulcanizing Press Silicone Plate Vulcanizing Machine

13kW Rubber Vulcanizing Press Silicone Plate Vulcanizing Machine

  • High Light

    13kW Rubber Vulcanizing Press

    ,

    Silicone Plate Rubber Vulcanizing Press

    ,

    Automatic Rubber Vulcanizing Press

  • Machine Type
    Plate Vulcanizing Press, Vulcanizing Press
  • Dimension(L*W*H)
    1600*1200*1600MM
  • Operating Type
    Automatic
  • Voltage
    380V
  • Weight
    1100kg
  • Power (kW)
    13
  • Maximum Stroke
    240mm
  • Maximum Width
    450*450mm
  • Keyword 1
    Rubber Vulcanizing Press
  • Keyword 2
    Vulcanizing Machine For Sale
  • Keyword 3
    Vulcanizing Press
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-V70T
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

13kW Rubber Vulcanizing Press Silicone Plate Vulcanizing Machine

Rubber Vulcanizing Press Rubber Plate Vulcanizing Machine For Sale

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.

Fulund mainly produces: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.



Product Feature


1. Fast-open mold features high production efficiency and slow locking to protect the mold;
2. Automatic move-in-and-out and ejecting units allows low labor intensity;
3. Conventional valve and proportional valve are optional; advanced and rational oil-way configuration is energy saving;
4. Electric system adopts PLC and touch screen man-machine interaction.

Technical parameters:



Model No. FLD-V70T
Machine size 1600*1200*1600mm
Weight 1100kg
Power 13kw
Hot plate specifications 400*400mm
Temperature range Normal temperature -350℃
Hot plate spacing 200mm
Way to heat up Imported heating tube
Mold opening method Automatic mold release
System pressure 18MPa
Main column diameter 210mm
Clamping stroke 220mm
Work level Upper and lower layers
Motor power 3.75kw
Greatest pressure 70 tons
Machine structure Four-column/single-head model
Power specifications 380V/50HZ



Application scope:

Drop plastic production of PVC trademark and soft rubber label

PVC cartoon and handicraft drop plastic production

Production of PVC shoes, bags and other clothing accessories
