Long Life Rubber Vulcanizing Press Machine frame type / four column type

Long Life Rubber Vulcanizing Press Machine frame type / four column type

  • High Light

    18MPa Vulcanizing Press Machine

    ,

    Frame Type Vulcanizing Press Machine

  • Machine Type
    Plate Vulcanizing Press, Vulcanizing Press
  • Dimension(L*W*H)
    1600*1200*1600MM
  • Operating Type
    Automatic
  • Voltage
    380V
  • Weight
    1100kg
  • Power (kW)
    13
  • Maximum Stroke
    240mm
  • Maximum Width
    450*450mm
  • Keyword 1
    Rubber Press
  • Keyword 2
    Vulcanizing Press Machine
  • Keyword 3
    Rubber Vulcanizing Press
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-V70T
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

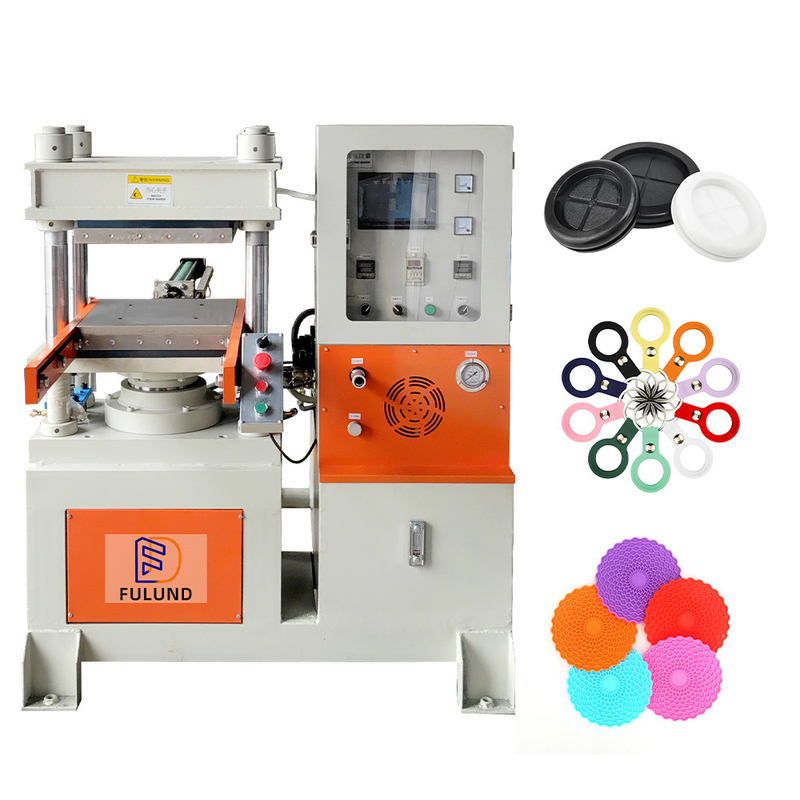

Long Life Rubber Vulcanizing Press Machine frame type / four column type

Long life Rubber Vulcanizing Press Machine with overseal service

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.

Fulund mainly produces: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.



The structure of the vulcanizing machine has a frame type and a four-column type. The heating forms are divided into three heating modes: electric heating, steam heating, and thermal oil heating. With automatic vulcanizing machine, automatic pressure compensation, automatic alarm device

The vulcanizer hydraulic system produced by our company has a scientific design, overall rigidity, low noise, and convenient operation. It can be controlled sequentially according to the pressure, time, speed and temperature required for different products into the PLC. Secondary exhaust to improve product quality and product yield



Technical parameters:



Model No. FLD-V70T
Machine size 1600*1200*1600mm
Weight 1100kg
Power 13kw
Hot plate specifications 400*400mm
Temperature range Normal temperature -350℃
Hot plate spacing 200mm
Way to heat up Imported heating tube
Mold opening method Automatic mold release
System pressure 18MPa
Main column diameter 210mm
Clamping stroke 220mm
Work level Upper and lower layers
Motor power 3.75kw
Greatest pressure 70 tons
Machine structure Four-column/single-head model
Power specifications 380V/50HZ



Application scope:

Drop plastic production of PVC trademark and soft rubber label

PVC cartoon and handicraft drop plastic production

Production of PVC shoes, bags and other clothing accessories

rubber oil seal making machinerubber oil seal making machinerubber oil seal making machinerubber oil seal making machinerubber oil seal making machinerubber oil seal making machinerubber oil seal making machinerubber oil seal making machinerubber oil seal making machinerubber oil seal making machinerubber oil seal making machinerubber oil seal making machinerubber oil seal making machinerubber oil seal making machine

Packing&Shipping
Packing Detail:

☂ Each Vulcanizing press machine with plastic film package first, then placed in a wooden case, wooden case with a foam
filling.

✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.

Delivery Detail :

☀ Shipped in 30 days after payment.
