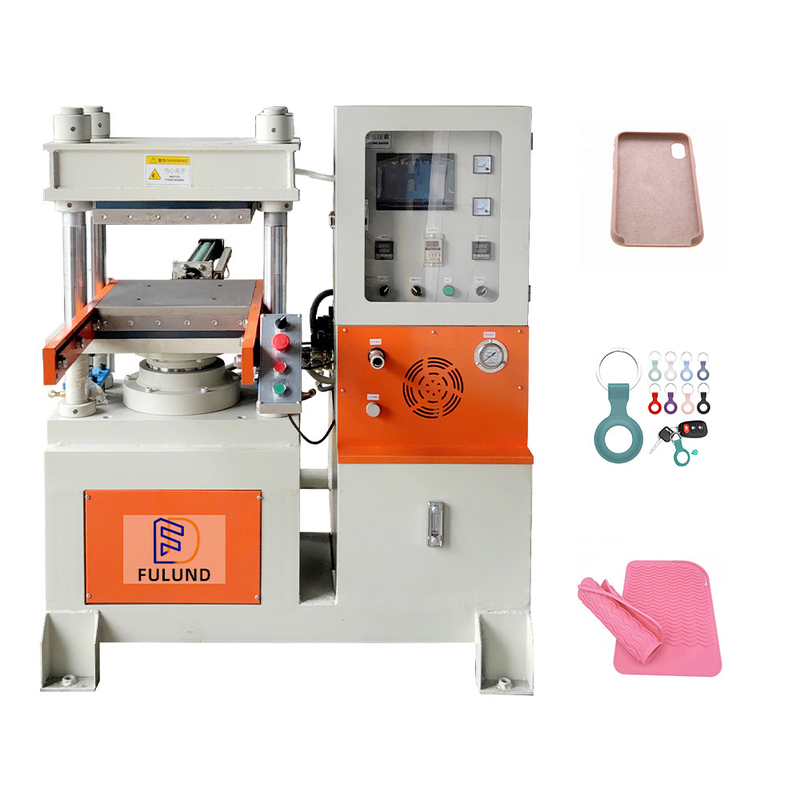

China manufacture rubber machinery oil seal making machine /rubber vulcanizing machine

China manufacture rubber machinery oil seal making machine /rubber vulcanizing machine

  • Machine Type
    Plate Vulcanizing Press, Vulcanizing Press
  • Dimension(L*W*H)
    1600*1200*1600MM
  • Operating Type
    Automatic
  • Voltage
    380V
  • Weight
    1100kg
  • Power (kW)
    13
  • Maximum Stroke
    240mm
  • Maximum Width
    450*450mm
  • Keyword 1
    China Manufacture Rubber Machinery Oil Seal Making Machine /rubber Vulcanizing Machine
  • Keyword 2
    Rubber Vulcanizing Press
  • Keyword 3
    Rubber Curing Press
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-V70T
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

China manufacture rubber machinery oil seal making machine /rubber vulcanizing machine

China manufacture rubber machinery oil seal making machine /rubber vulcanizing machine

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.

Fulund mainly produces: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.



The vulcanizing machine series has two specifications: stand-alone control and PLC control, which can realize three working modes: manual, semi-automatic and fully automatic. The working pressure, pressing speed and stroke range of the vulcanizing machine can be adjusted according to the needs of the process, and the operation is simple and convenient. Suitable for pressing all kinds of rubber and thermosetting plastic model products and non-model products and pressing foam plastic products



Technical parameters:



Model No. FLD-V70T
Machine size 1600*1200*1600mm
Weight 1100kg
Power 13kw
Hot plate specifications 400*400mm
Temperature range Normal temperature -350℃
Hot plate spacing 200mm
Way to heat up Imported heating tube
Mold opening method Automatic mold release
System pressure 18MPa
Main column diameter 210mm
Clamping stroke 220mm
Work level Upper and lower layers
Motor power 3.75kw
Greatest pressure 70 tons
Machine structure Four-column/single-head model
Power specifications 380V/50HZ



Application scope:

Drop plastic production of PVC trademark and soft rubber label

PVC cartoon and handicraft drop plastic production

Production of PVC shoes, bags and other clothing accessories
