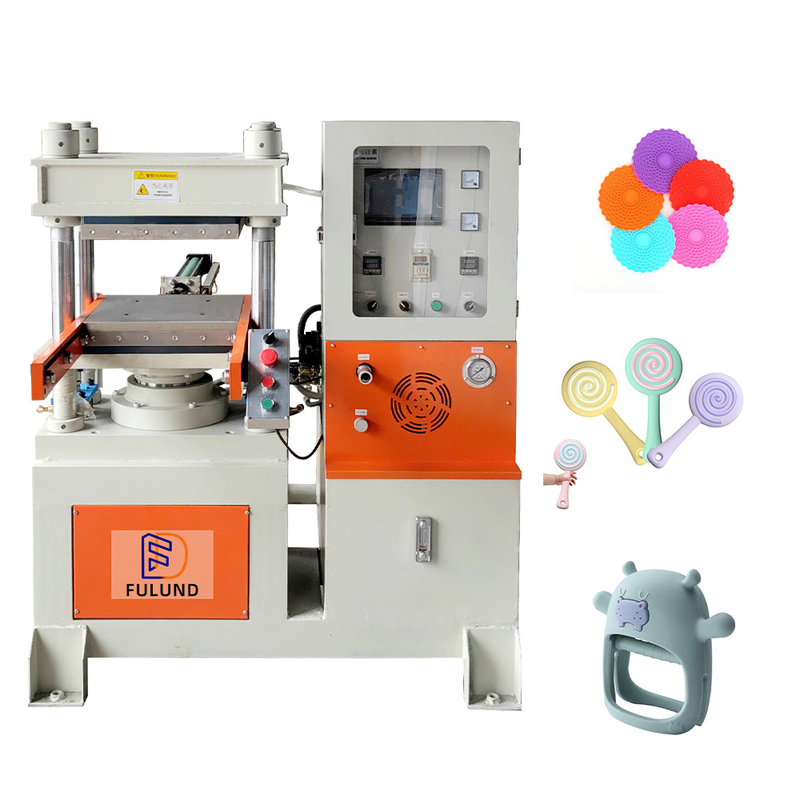

Hydraulic compression moulding press machine/rubber molding press

Hydraulic compression moulding press machine/rubber molding press

  • Machine Type
    Plate Vulcanizing Press, Vulcanizing Press
  • Dimension(L*W*H)
    1600*1200*1600MM
  • Operating Type
    Automatic
  • Voltage
    380V
  • Weight
    1100kg
  • Power (kW)
    13
  • Maximum Stroke
    240mm
  • Maximum Width
    450*450mm
  • Keyword 1
    Hydraulic Compression Moulding Press Machine
  • Keyword 2
    Compression Moulding Press
  • Keyword 3
    Compression Moulding Machine
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-V70T
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

Hydraulic compression moulding press machine/rubber molding press

Hydraulic compression moulding press machine/rubber molding press

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.

Fulund mainly produces: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.



The machine structure decides its precision , service life and stability

1.The machine adopts the world advanced UG software and PO0-E3D analysis aided design to integrally cast and form the optimal design of high rigidity , tight structure and long life service

2.Heating Plate is made of deep hole processing , after carburizing process,by using the principle of heat flux,high precision ,and the advantage temperature analysis of optimal design

3.Use computer CNC processing to ensure the optimal precision of design

4.Japanese technology planar average pressure correction with a highest precision up to 0.2mm

5.Heating plate/ in-and-out template adopts carburizing treatment and is completed by grinding and nitriding , long wearproof,not easy to be deformed and high planar precision



Technical parameters:



Model No. FLD-V70T
Machine size 1600*1200*1600mm
Weight 1100kg
Power 13kw
Hot plate specifications 400*400mm
Temperature range Normal temperature -350℃
Hot plate spacing 200mm
Way to heat up Imported heating tube
Mold opening method Automatic mold release
System pressure 18MPa
Main column diameter 210mm
Clamping stroke 220mm
Work level Upper and lower layers
Motor power 3.75kw
Greatest pressure 70 tons
Machine structure Four-column/single-head model
Power specifications 380V/50HZ



Application scope:

Drop plastic production of PVC trademark and soft rubber label

PVC cartoon and handicraft drop plastic production

Production of PVC shoes, bags and other clothing accessories
