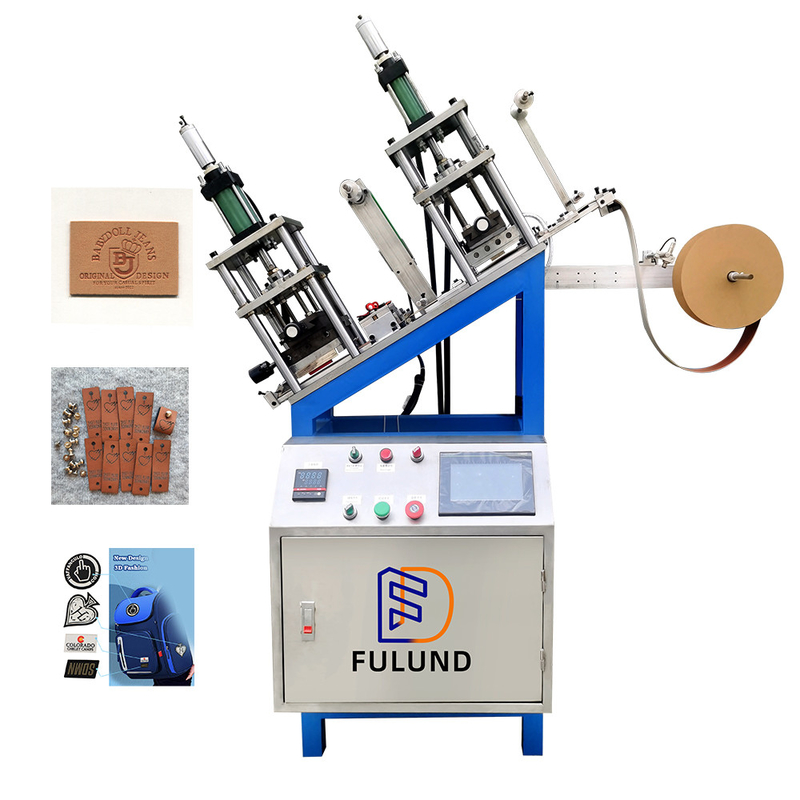

FuLund Automatic PU leather label embossing machinery

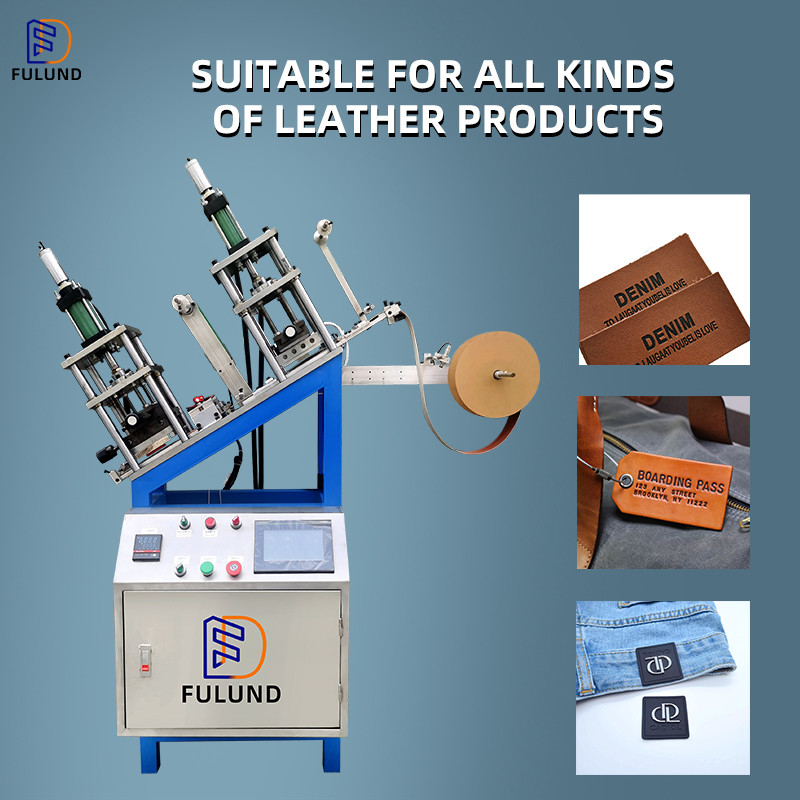

Leather embossing and labeling machine is mainly suitable for pure PVC or any soft and hard rubber containing more than 10% PVC and leather, cloth and industries, plastic packaging industry, garment embossing and processing industry, automotive interior parts industry, inflatable toy industry, home furnishing industry Supplies industry
Technical parameters:
| Mechanical pressure | 30KN |
| Temperature regulation | 10~380°C |
| Temperature accuracy | ±2℃ |
| Drive way | hydraulic |
| Leather conveying mode | servo motor |
| Transmission accuracy | ±0.2MM |
| biggest pressure | 7Mpa |
| power supply | AC380V±5% 50/60HZ |
| Power: | 5KW |
| Cutting direction adjustment | up, down, left, right four directions |
| Hot press direction adjustment | left and right direction |
| Receiving bronzing paper | Automatic |
| Mode of operation | / Inching/automatic |
| Hot pressing time | 0.1S~999S |
| cutting time | 0.1S~999S |
| Way to work | / Manual/automatic |
| Mechanical pressure | 1T -3T |
| Heating plate area | 90×120MM |
| host volume | 1150×1160×1900MM |
| Upper and lower mold distance | 100MM |
| weight | 450KG |
1,Power supply voltage: 380V power 5KW
2,Hydraulic pressure: 1-7Mpa
3,Automatic bronzing function: the receiving speed can be adjusted automatically
4,Easy to operate, directly input the data you want on the system, mechanical automatic completion of hot pressing, blanking
5,work efficiency is 8-10 times that of manual production
6.,High accuracy, automatic feeding, fast speed, the fastest can reach 0.2s/PCS
7,Automatic constant temperature, room temperature -350 degrees arbitrary adjustment
8,PLC + touch screen operation, servo system control leather transportation
9,The limit device on the top of the hydraulic cylinder, the depth of embossing and cutting can be controlled, and the embossing and cutting can be accurately positioned.
mechanical weight: 450 kg,
Machine volume: 1.15*1.16*1.98M
