30KN Hydraulic Leather Embossing Machine Left And Right Direction Adjustment

30KN Hydraulic Leather Embossing Machine Left And Right Direction Adjustment

  • High Light

    30KN Hydraulic Leather Embossing Machine

    ,

    Direction Adjustment Leather Embossing Machine

  • Product Name
    Automatic PU Leather Brand Machine
  • Application
    PU Leather Trademark
  • Usage
    Leather
  • Condition
    New
  • Type
    Heat Press Machine
  • Place Of Origin
    Guangdong, China
  • Warranty Of Core Components
    1 Year
  • Keywords1
    Embossing Machine For Leather
  • Keywords2
    Leather Logo Embossing Machine
  • Keywords3
    Hydraulic Leather Embossing Machine
  • Place of Origin
    CHINA
  • Brand Name
    FuLund
  • Certification
    CE
  • Model Number
    FLD-PB1
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    Wooden Case
  • Delivery Time
    7days
  • Supply Ability
    100set/MONTH

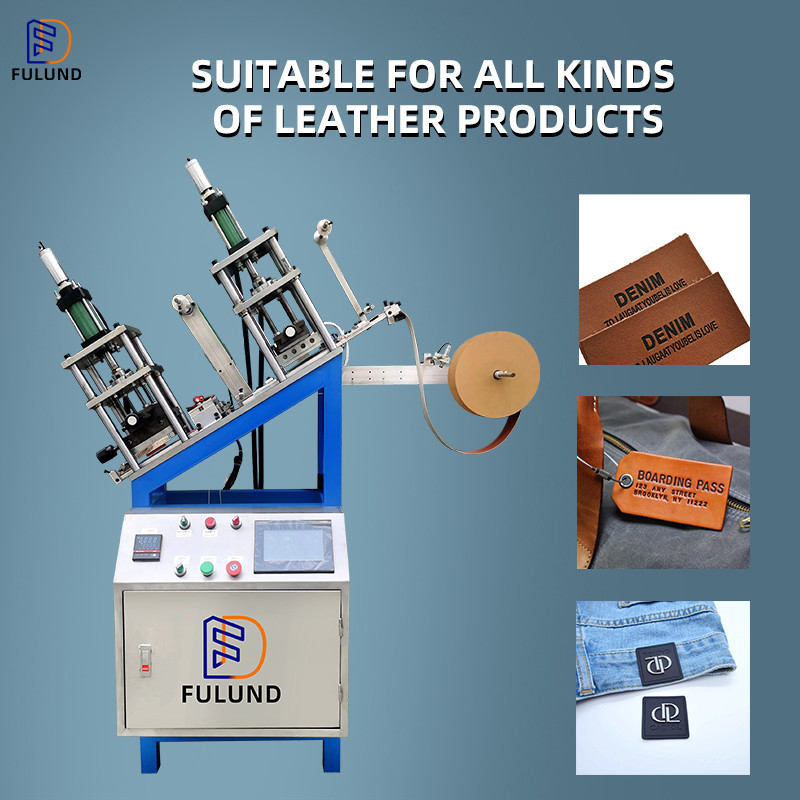

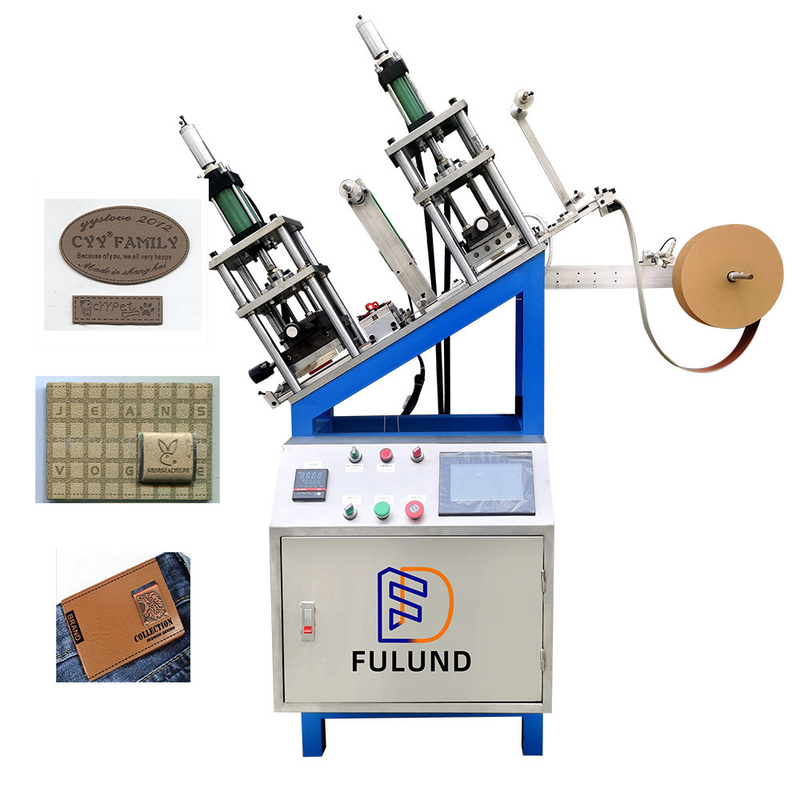

30KN Hydraulic Leather Embossing Machine Left And Right Direction Adjustment

Good Quality Leather Logo Hydraulic Leather Embossing Machine Embossing Machine For Leather

Technical parameters:

Mechanical pressure 30KN
Temperature regulation 10~380°C
Temperature accuracy ±2
Drive way hydraulic
Leather conveying mode servo motor
Transmission accuracy ±0.2MM
biggest pressure 7Mpa
power supply AC380V±5% 50/60HZ
Power: 5KW
Cutting direction adjustment up, down, left, right four directions
Hot press direction adjustment left and right direction
Receiving bronzing paper Automatic
Mode of operation / Inching/automatic
Hot pressing time 0.1S~999S
cutting time 0.1S~999S
Way to work / Manual/automatic
Mechanical pressure 1T -3T
Heating plate area 90×120MM
host volume 1150×1160×1900MM
Upper and lower mold distance 100MM
weight 450KG



1,Automatic constant temperature,

2,Automatic stop for lack of material

3,Quantity control automatic shutdown

4,Automatic counting

5,Four column structure

6,PLC+ touch screen

7,Automatic constant temperature



Machine Parts

Name: Regulator

Brand:Independent research and development

Original: CHINA

Independent research and development, can X axis Y axis adjustment, machine cutting precision
