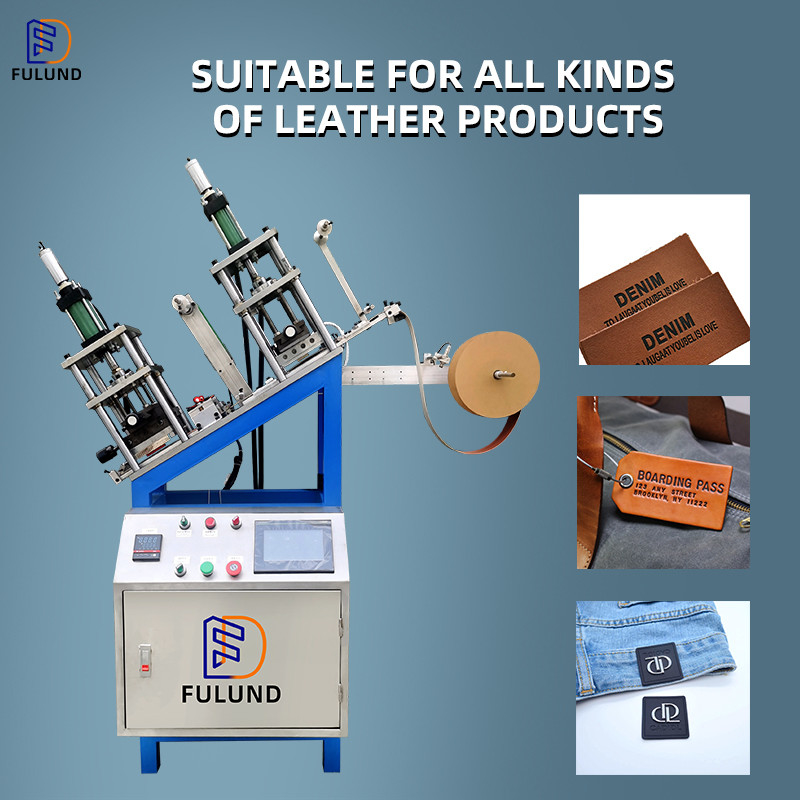

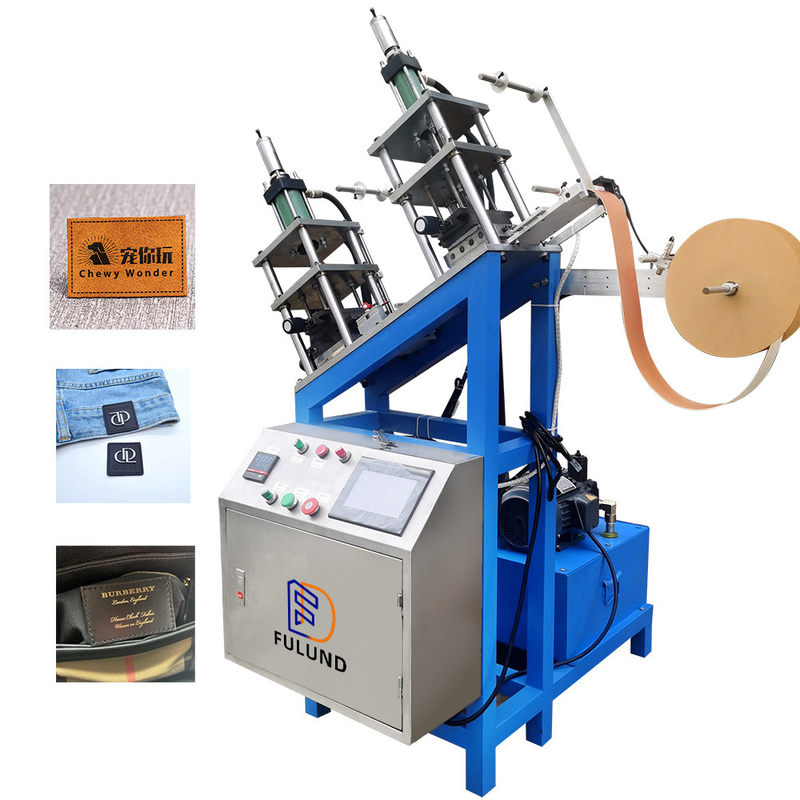

PU Leather Jeans Trademark Machines Automatic Leather Label Brand Press PU Leather Brand Machine
Factory supplies PU leather jeans trademark machines Automatic leather label brand press PU leather brand machine
Technical parameters:
| Mechanical pressure | 30KN |
| Temperature regulation | 10~380°C |
| Temperature accuracy | ±2℃ |
| Drive way | hydraulic |
| Leather conveying mode | servo motor |
| Transmission accuracy | ±0.2MM |
| biggest pressure | 7Mpa |
| power supply | AC380V±5% 50/60HZ |
| Power: | 5KW |
| Cutting direction adjustment | up, down, left, right four directions |
| Hot press direction adjustment | left and right direction |
| Receiving bronzing paper | Automatic |
| Mode of operation | / Inching/automatic |
| Hot pressing time | 0.1S~999S |
| cutting time | 0.1S~999S |
| Way to work | / Manual/automatic |
| Mechanical pressure | 1T -3T |
| Heating plate area | 90×120MM |
| host volume | 1150×1160×1900MM |
| Upper and lower mold distance | 100MM |
| weight | 450KG |
1,Automatic constant temperature,
2,Automatic stop for lack of material
3,Quantity control automatic shutdown
4,Automatic counting
5,Four column structure
6,PLC+ touch screen
7,Automatic constant temperature
Equipment use: pure PVC, EVA or any soft and hard rubber and leather or cloth with more than 10% PVC can be processed for special purposes. Such as leather embossing, leather LOGO embossing, notepad embossing, driver's license cover embossing, business card book cover embossing, etc.
Our products are sold all over the world, you can rest assured.
