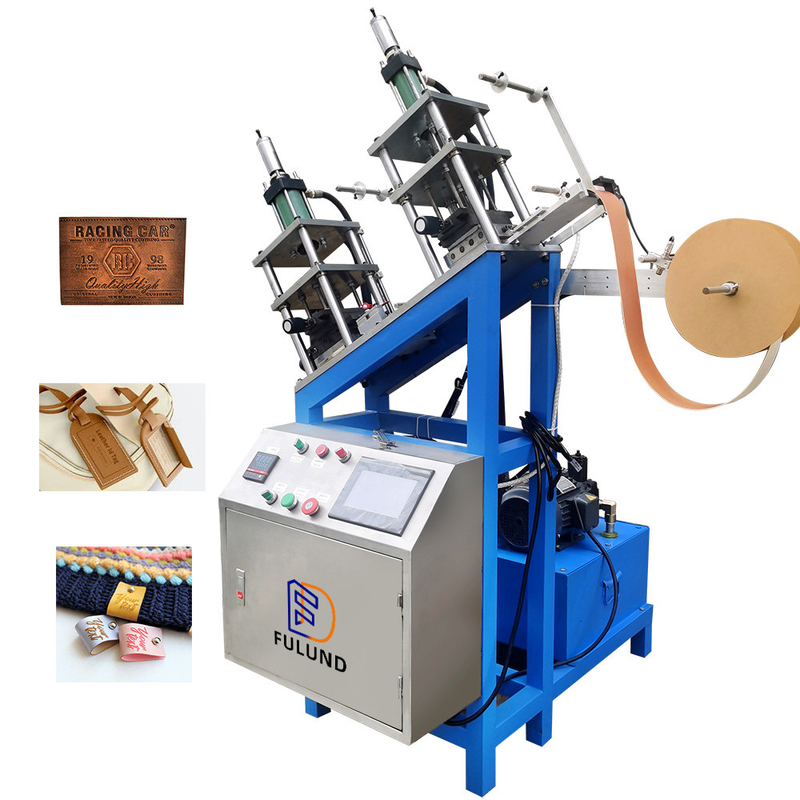

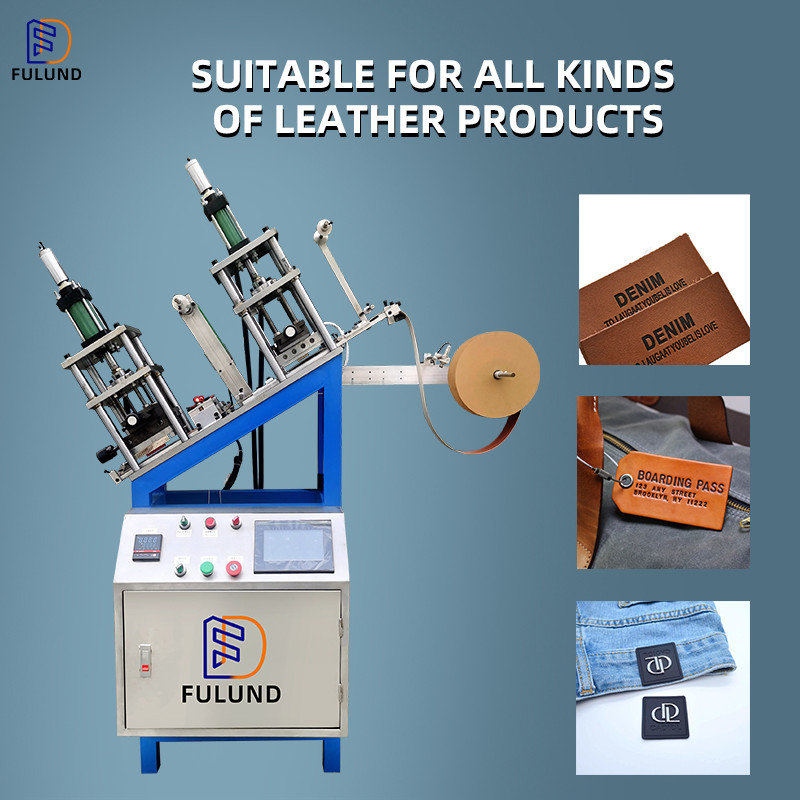

Factory supplies PU leather jeans trademark machines Automatic leather label brand press PU leather brand machine
Technical parameters:
Mechanical pressure | 30KN |
Temperature regulation | 10~380°C |
Temperature accuracy | ±2℃ |
Drive way | hydraulic |
Leather conveying mode | servo motor |
Transmission accuracy | ±0.2MM |
biggest pressure | 7Mpa |
power supply | AC380V±5% 50/60HZ |
Power: | 5KW |
Cutting direction adjustment | up, down, left, right four directions |
Hot press direction adjustment | left and right direction |
Receiving bronzing paper | Automatic |
Mode of operation | / Inching/automatic |
Hot pressing time | 0.1S~999S |
cutting time | 0.1S~999S |
Way to work | / Manual/automatic |
Mechanical pressure | 1T -3T |
Heating plate area | 90×120MM |
host volume | 1150×1160×1900MM |
Upper and lower mold distance | 100MM |
weight | 450KG |
1. Power supply voltage: 380V power 5KW
2. Hydraulic pressure: 1-7Mpa
3. Automatic bronzing function: the receiving speed can be adjusted automatically
4. Easy to operate, directly input the required data on the system, and the machine automatically completes hot pressing and blanking
5. The work efficiency is 8-10 times that of manual production
6. High precision, automatic feeding, fast speed, the fastest can reach 0.2s/PCS
7, automatic constant temperature, room temperature -350 degrees can be adjusted arbitrarily
8. PLC + touch screen operation, servo system controls leather transportation
9. There is a limit device on the top of the hydraulic cylinder, which can control the depth of embossing and cutting, and the positioning of embossing and cutting is accurate.
Mechanical weight: 450 kg,
Machine volume: 1.15*1.16*1.98m
