PLC Touch Screen Leather Label Machine Automatically For Jeans

PLC Touch Screen Leather Label Machine Automatically For Jeans

  • High Light

    Touch Screen Leather Label Machine

    ,

    PLC Leather Label Machine

    ,

    Automatic PU Leather Label Machine

  • Product Name
    Automatic PU Leather Brand Machine
  • Application
    PU Leather Trademark
  • Usage
    Leather
  • Place of Origin
    CHINA
  • Brand Name
    FuLund
  • Certification
    CE
  • Model Number
    FLD-PB1
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    Wooden Case
  • Delivery Time
    7days
  • Supply Ability
    100set/MONTH

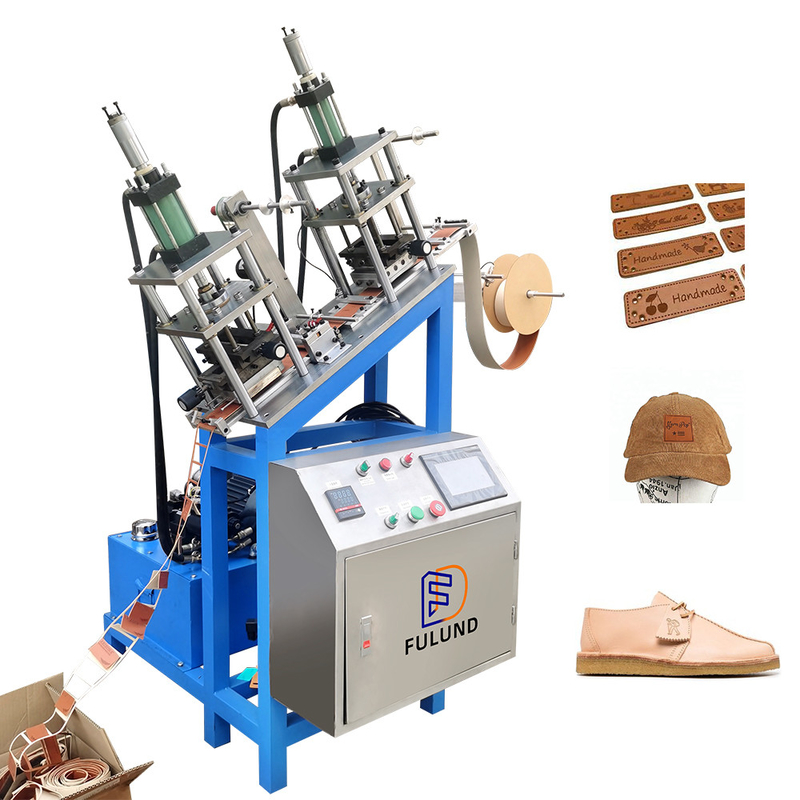

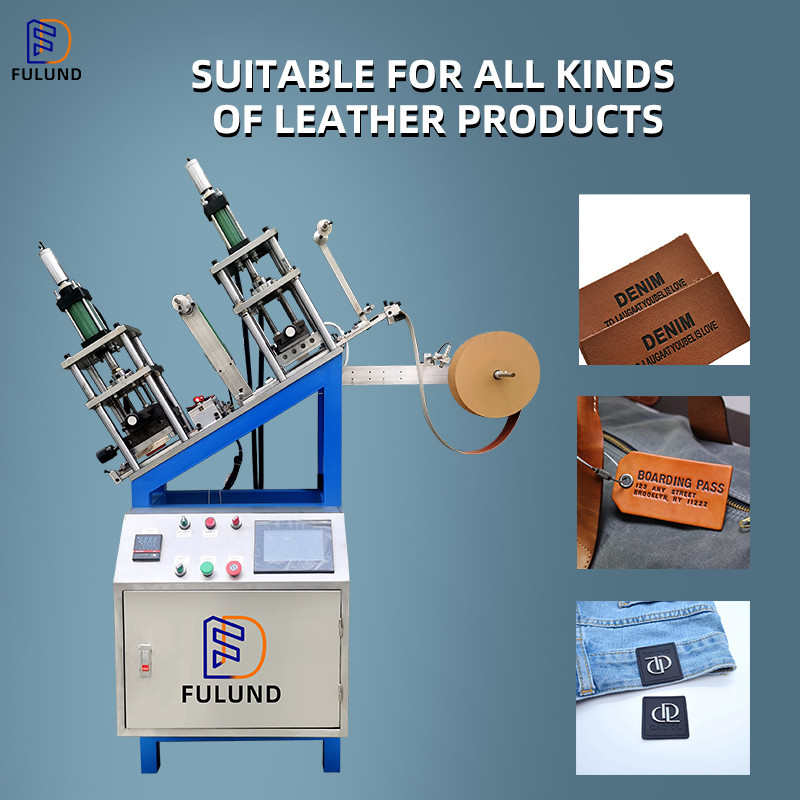

PLC Touch Screen Leather Label Machine Automatically For Jeans

Leather Label Machine A Machine That Automatically Produces Leather Labels For Jeans



1,Automatic constant temperature,

2,Automatic stop for lack of material

3,Quantity control automatic shutdown

4,Automatic counting

5,Four column structure

6,PLC+ touch screen

7,Automatic constant temperature

Technical parameters:

Mechanical pressure 30KN
Temperature regulation 10~380°C
Temperature accuracy ±2
Drive way hydraulic
Leather conveying mode servo motor
Transmission accuracy ±0.2MM
biggest pressure 7Mpa
power supply AC380V±5% 50/60HZ
Power: 5KW
Cutting direction adjustment up, down, left, right four directions
Hot press direction adjustment left and right direction
Receiving bronzing paper Automatic
Mode of operation / Inching/automatic
Hot pressing time 0.1S~999S
cutting time 0.1S~999S
Way to work / Manual/automatic
Mechanical pressure 1T -3T
Heating plate area 90×120MM
host volume 1150×1160×1900MM
Upper and lower mold distance 100MM
weight 450KG





1,Power supply voltage: 380V power 5KW

2,Hydraulic pressure: 1-7Mpa

3,Automatic bronzing function: the receiving speed can be adjusted automatically

4,Easy to operate, directly input the data you want on the system, mechanical automatic completion of hot pressing, blanking

5,work efficiency is 8-10 times that of manual production

6.,High accuracy, automatic feeding, fast speed, the fastest can reach 0.2s/PCS

7,Automatic constant temperature, room temperature -350 degrees arbitrary adjustment

8,PLC + touch screen operation, servo system control leather transportation

9,The limit device on the top of the hydraulic cylinder, the depth of embossing and cutting can be controlled, and the embossing and cutting can be accurately positioned.

mechanical weight: 450 kg,

Machine volume: 1.15*1.16*1.98M
