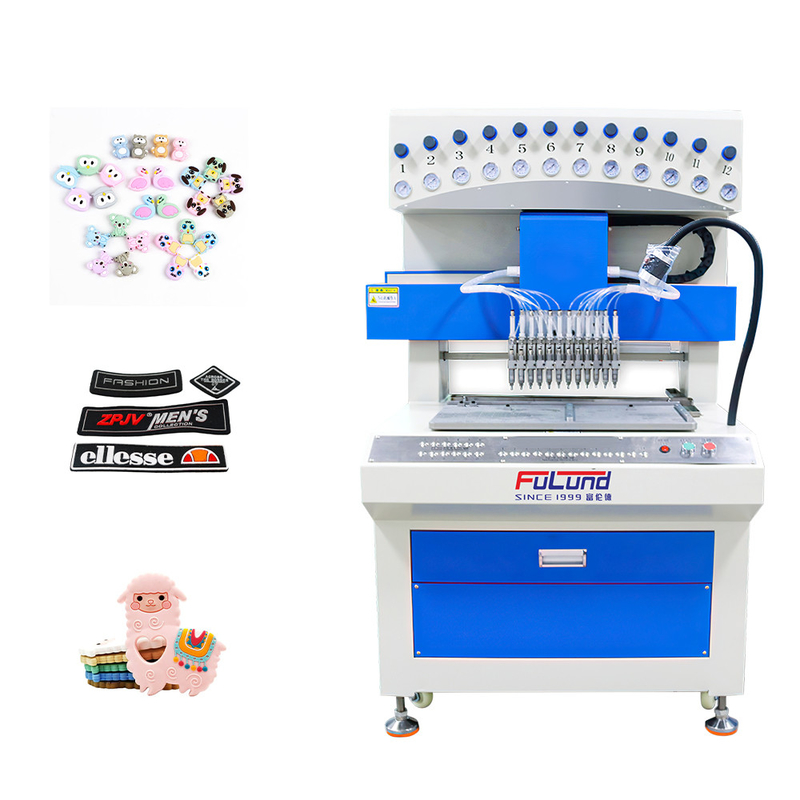

3D pvc label making machine silicone drip mold machine fully auto Rubber Patch Dispensing Machinery factory

3D pvc label making machine silicone drip mold machine fully auto Rubber Patch Dispensing Machinery factory

  • NAME
    Dispensing Machine
  • Automatic Grade
    Full Automatic
  • Core Components
    PLC, Pressure Vessel, Other
  • Dimension(L*W*H)
    950*940*1500mm
  • Product Name
    12 Color Drop Molding Machine
  • Application
    Production Of PVC And Silica Gel Products
  • Mould Life
    100k- 500k Shots
  • Voltage
    220V
  • Weight
    250kg
  • Power (kW)
    1.6
  • Surface Treatment
    Texture
  • Keyword
    Plastic Injection Mold Molding Services
  • Keyword 1
    Silicone Phone Cover Making Machine
  • Keyword 2
    Gluing Dispensing Machine
  • Keyword 3
    Plastic Slippers Making Machine
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-P08D
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

3D pvc label making machine silicone drip mold machine fully auto Rubber Patch Dispensing Machinery factory

3D pvc label making machine silicone drip mold machine fully auto Rubber Patch Dispensing Machinery factory

Automatic type
1. Floor-standing double-liquid dispenser.
2. Spray type automatic glue dispenser (this glue dispenser adopts glue spray valve, online operation, mainly used for PCB board three-proof paint spraying, which plays the role of dust-proof, moisture-proof and insulation).
3. Automatic glue dispensing machine for conductive glue (the difference between this glue dispensing machine and ordinary glue dispensing machine is that the cross section of the conductive glue dispensed is in a triangular distribution state, which is mainly used for electromagnetic shielding glue dispensing).
4. Phosphor jet dispensing machine (this dispensing machine is mainly used in the LED industry).

PVC product process flow diagram:
1, Mixing: According to requirements, according to a certain proportion of PVC materials, mixing evenly;
2, vacuum: The use of our special PVC vacuum equipment to remove bubbles;
3, dispensing: The PVC raw materials into the dispensing machine,
4, drying: After the injection molding table cut pieces into the energy-saving oven or baking mold table, its drying and shaping;
5, filling the bottom material: after the molding table into the automatic bottom material filling machine,
6, dry the bottom material: will fill the bottom material mold again into the energy-saving oven or baking mold table dryingshape;
7, complete: Cooling table take out the product, Trim and tear off the leftover material, the plastic part of PVC product isfinished.

Technical parameters:

Model No. FLD-P08D
Machine Size 950*940*1500mm
Weight 250KG
Electric heating power 1.6KW
Effective Trip 600*350*70mm
Worktable Size 550*350mm





Machine Features:



1: Shortcut keys can be set to facilitate the operation of workers, avoiding the direct operation of the machine in the mode of fixed order. With this function, the machine can be used flexibly. When workers fully master the machine, it can also operate circularly, which can greatly improve the efficiency.

2: Simple operation, multi needle and multi-color, flexible configuration, simple operation, accurate dropping, and continuous feeding without shutdown.

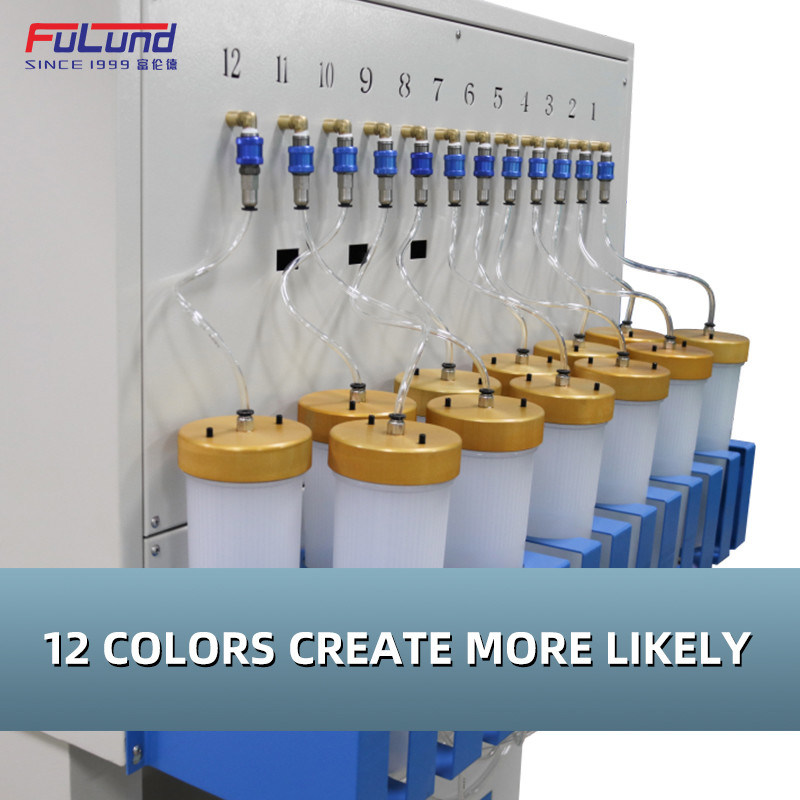

The needle can be extended to 8-18 colors, and multiple needles can be combined at the same time without glue leakage. Full automatic PVC drop plastic dispensing machine, with complete performance, is a professional PVC drop plastic trademark machine.

This machine has the function of synchronous dispensing valve. For example, 12 dispensing valves can be lowered simultaneously for single color trademark, 6 dispensing valves can be lowered simultaneously for double color trademark, 4 dispensing valves can be lowered simultaneously for three color trademark, and so on.

This machine has more functions that other similar machines do not have, that is, 12 different molds can be produced at the same time within the usable range of this machine, which greatly improves the use power of different molds and reduces the concern that some customers think they can't use the glue dispenser if the quantity is small.

3, High precision, high stability, fast and smooth rounding speed and low sound. The accuracy can reach 0.01mm The product quality is very stable, with uniform thickness and weight, and the product qualification rate reaches more than 95%, reducing the waste of raw materials. High stability: work for you continuously for 24 hours to solve the worries of not delivering in time when receiving large orders!

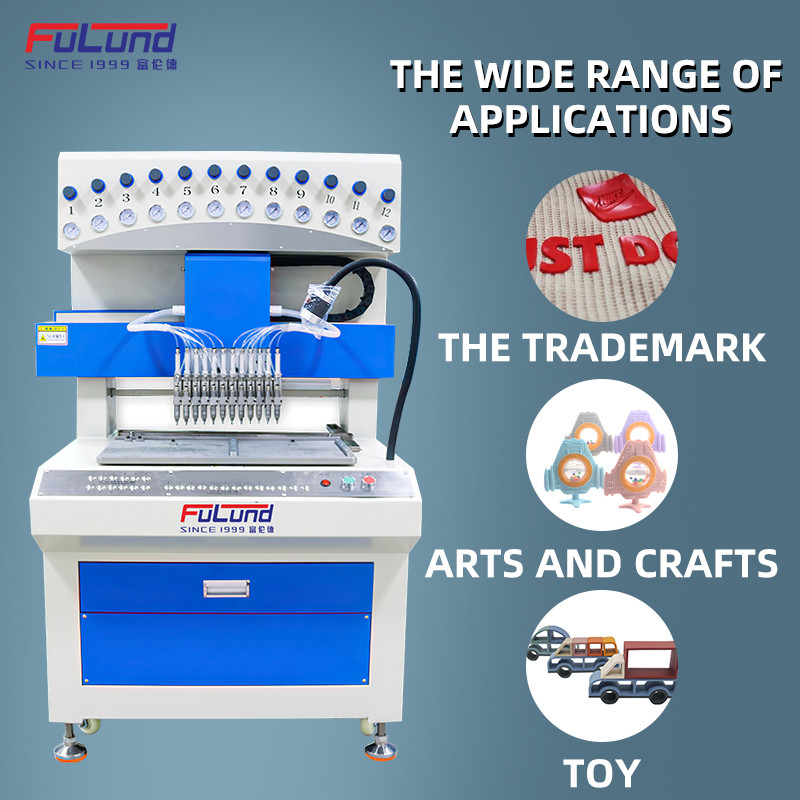

Application scope:

Drop plastic production of PVC trademark and soft rubber label

PVC cartoon and handicraft drop plastic production

Production of PVC shoes, bags and other clothing accessories
