70T Plate Vulcanizing Press Belt Rubber Hydraulic Forming Machine Silicone Rubber Products Heat Press
Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.
Fulund mainly produces: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.

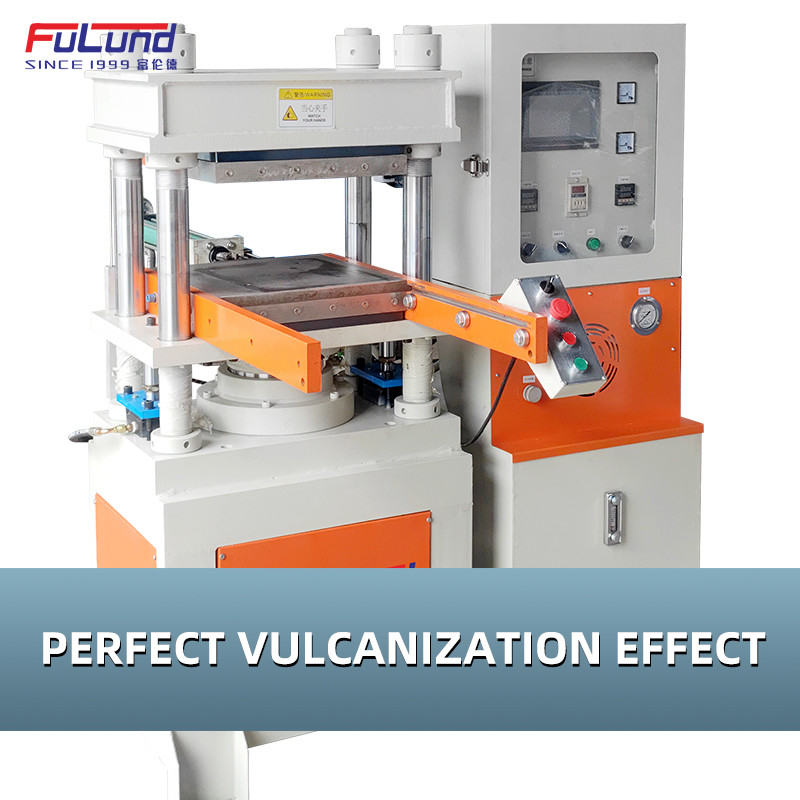

Introduction of Fulund vulcanizer
The functions of pre-heating required for the rubber vulcanization process, automatic exhaust after feeding, pressure-holding vulcanization, timing alarm, automatic mold opening, and product mold release are integrated into one. It is generally controlled by PLC, with automatic and manual operation (customized according to the actual needs of users), which can record the required technological process, remote operation and system management.
The surface temperature of the hot plate is uniform, the temperature is controlled accurately, the temperature controller (see the thermostat in the figure) can accurately record the temperature data, the pressure is stable and reliable, and the operation is safe and convenient. Medium and high-end machines have a short pre-commissioning time for mass production, and the equipment is highly reliable. 99% of the equipment on the market is manufactured on the premise that it can ensure product quality, provide production efficiency, and obtain significant economic benefits.
Introduction to the structure of the vulcanizer:
1. Structural stability: a special four-column structure is adopted, the upper seat is reinforced with medium carbon steel, and the upright column is thickened and hardened to ensure structural stability and accuracy.
2. System: The high plane pressure equalization correction is adopted, and the pressure (18mpa) strengthens the nut leveling device, which can increase the parallelism of the upper and lower heating plates to 0.05mm.
3. Temperature control system: Adjustable from room temperature to 350°C, using intelligent temperature control to control the temperature fluctuation range within ±2°C.
4. Operating system: PLC combined with touch screen, whether debugging or production, can be controlled directly and simply.
5. Operating system: The optimally designed oil circuit and high-quality oil circuit accessories ensure the smooth operation of the entire oil circuit system from the principle and accessories.
6. Energy-saving system: The heating plate adopts the deep hole processing technology, which is closely matched with the heating pipe to reduce the heat loss during the heat transfer process.
7. The intelligent system can automatically push out the mold, thereby reducing the labor time of the staff, increasing efficiency, high output and saving time.
Scope of application:

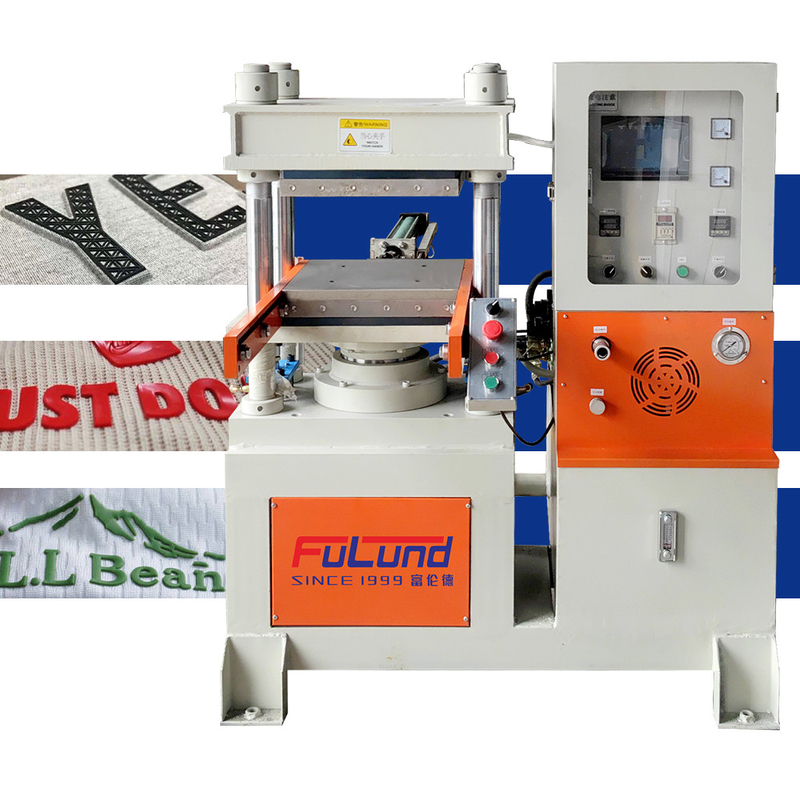

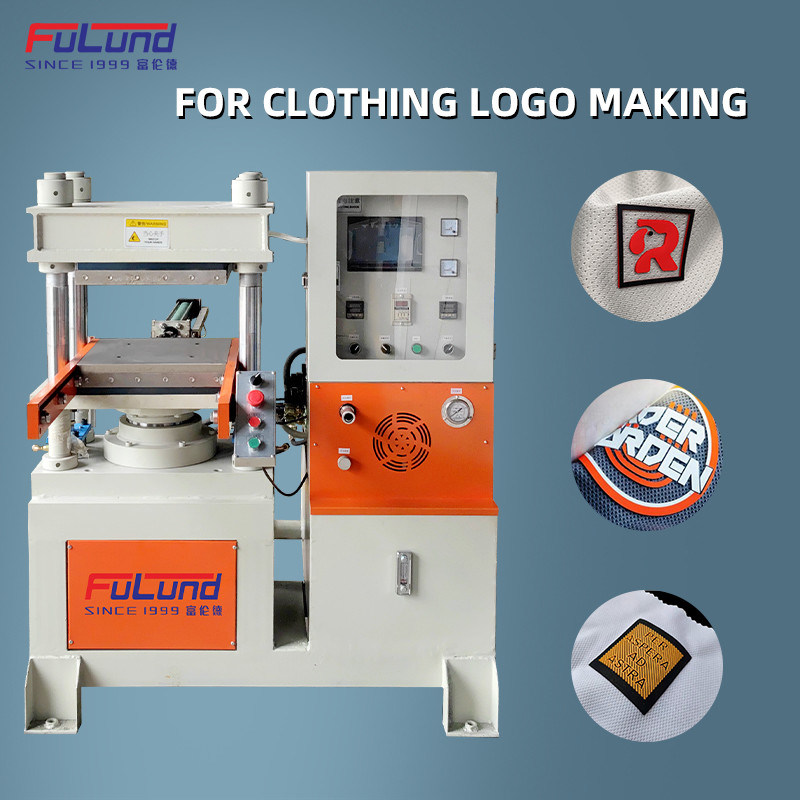

Children's toys, baby products, kitchen supplies, clothing labels, equipment seals, etc.
Technical parameters:
Model No. | FLD-V70T |
Machine size | 1600*1200*1600mm |
Weight | 1100kg |
Power | 13kw |
Hot plate specifications | 400*400mm |
Temperature range | Normal temperature -350℃ |
Hot plate spacing | 200mm |
Way to heat up | Imported heating tube |
Mold opening method | Automatic mold release |
System pressure | 18MPa |
Main column diameter | 210mm |
Clamping stroke | 220mm |
Work level | Upper and lower layers |
Motor power | 3.75kw |
Greatest pressure | 70 tons |
Machine structure | Four-column/single-head model |
Power specifications | 380V/50HZ |
