Flat Press Plate Vulcanizing Machinery Vulcanized Rubber Pressing Machine With 100% Safety

Flat Press Plate Vulcanizing Machinery Vulcanized Rubber Pressing Machine With 100% Safety

  • Machine Type
    Plate Vulcanizing Press, Vulcanizing Press
  • Dimension(L*W*H)
    1600*1200*1600MM
  • Operating Type
    Automatic
  • Voltage
    380V
  • Weight
    1100kg
  • Keyword 1
    Vulcanizer Rubber Mould Machine
  • Keyword 2
    Pneumatic Vulcanizer
  • Keyword 3
    Vulcanizing Machine Price
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-V70T
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

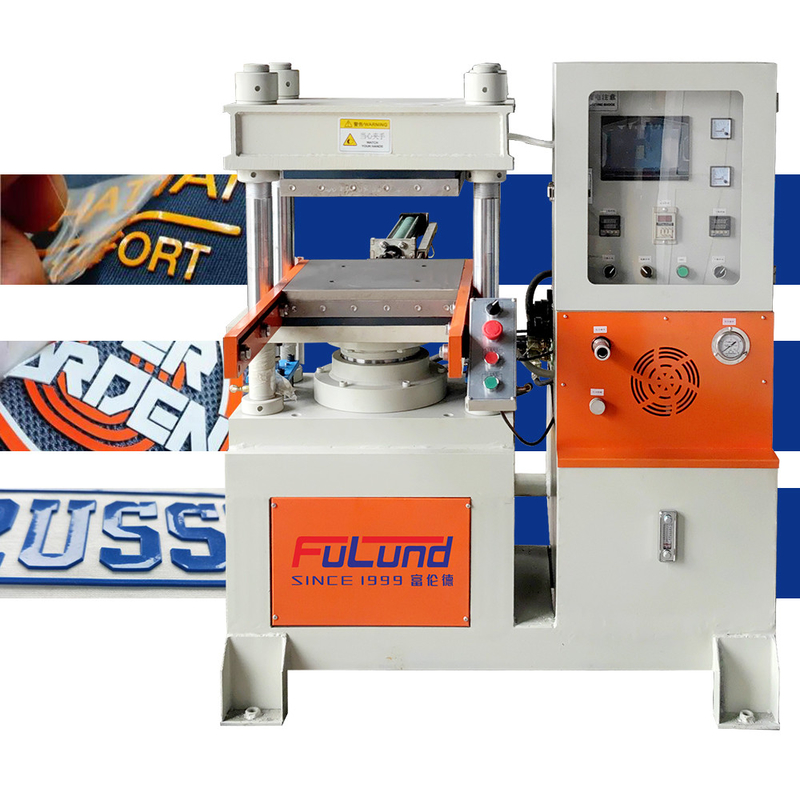

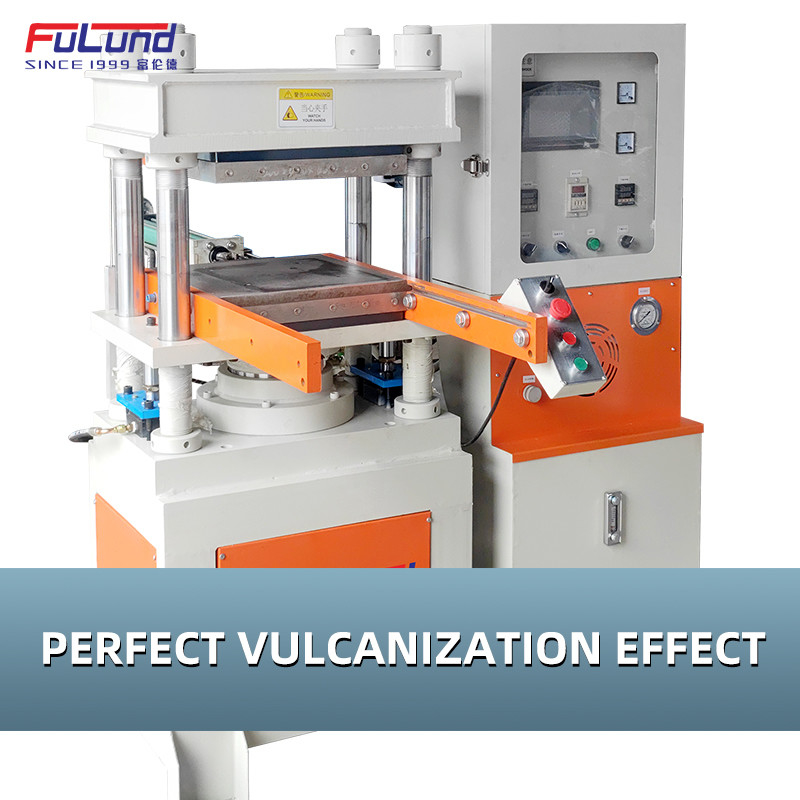

Flat Press Plate Vulcanizing Machinery Vulcanized Rubber Pressing Machine With 100% Safety

Flat Press Plate Vulcanizing Machinery Vulcanized Rubber Pressing Machine With 100% Safety

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.

Fulund mainly produces: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.

Fulund vulcanizer performance introduction
1. PLC, HMI control, can realize manual and automatic control. Automatic control can realize functions such as mold clamping, exhaust, temperature control, vulcanization timing, alarm, mold opening and unloading; the touch screen displays the temperature of each heating area of ​​the hot plate in real time.
2. The hydraulic cylinder is made of ZG270-500 material, and the plunger is made of chilled hard alloy cast iron with dense texture, which is finely ground after casting; the sealing form of the hydraulic cylinder is a YX type sealing ring.
3. Hydraulic automatic top iron is used on the pot side of the hot plate. Under the action of four oil cylinders, the horns on both sides of the hot plate advance and retreat at the same time; the two ends of the hot plate are provided with anti-pillar iron overlapping devices.
4. Each heating area of ​​the hot plate is equipped with a set of temperature-adjusting valve groups. Under the control of PLC, the temperature of each heating area of ​​the hot plate is guaranteed to be uniform.
5. Hydraulic system: Using the hydraulic station of well-known brands at home and abroad, under the control of PLC, it can realize automatic: mold clamping, exhaust, mold opening and unloading.
6. Mechanical synchronous balance mechanism: There is a synchronous shaft running through the unit under the platform, and the two ends of the shaft are provided with racks and pinions to ensure the horizontal lifting of the platform.
7. Clamping guide device: There are mold clamping guides on both sides of the lower bed, the frame plate and the platform are installed with a guide seat, the guide seat is processed with an inclined plane, and the distance of the inclined plane can be adjusted by the top wire.
8. Mould opening assist mechanism: When the mould is opened, the four oil cylinders located under the platform act to pull the platform down forcibly to prevent the sticking pan from being unable to open the mould.



Introduction to the structure of the vulcanizer:

1. Structural stability: a special four-column structure is adopted, the upper seat is reinforced with medium carbon steel, and the upright column is thickened and hardened to ensure structural stability and accuracy.

2. System: The high plane pressure equalization correction is adopted, and the pressure (18mpa) strengthens the nut leveling device, which can increase the parallelism of the upper and lower heating plates to 0.05mm.

3. Temperature control system: Adjustable from room temperature to 350°C, using intelligent temperature control to control the temperature fluctuation range within ±2°C.

4. Operating system: PLC combined with touch screen, whether debugging or production, can be controlled directly and simply.

5. Operating system: The optimally designed oil circuit and high-quality oil circuit accessories ensure the smooth operation of the entire oil circuit system from the principle and accessories.

6. Energy-saving system: The heating plate adopts the deep hole processing technology, which is closely matched with the heating pipe to reduce the heat loss during the heat transfer process.

7. The intelligent system can automatically push out the mold, thereby reducing the labor time of the staff, increasing efficiency, high output and saving time.



Scope of application:

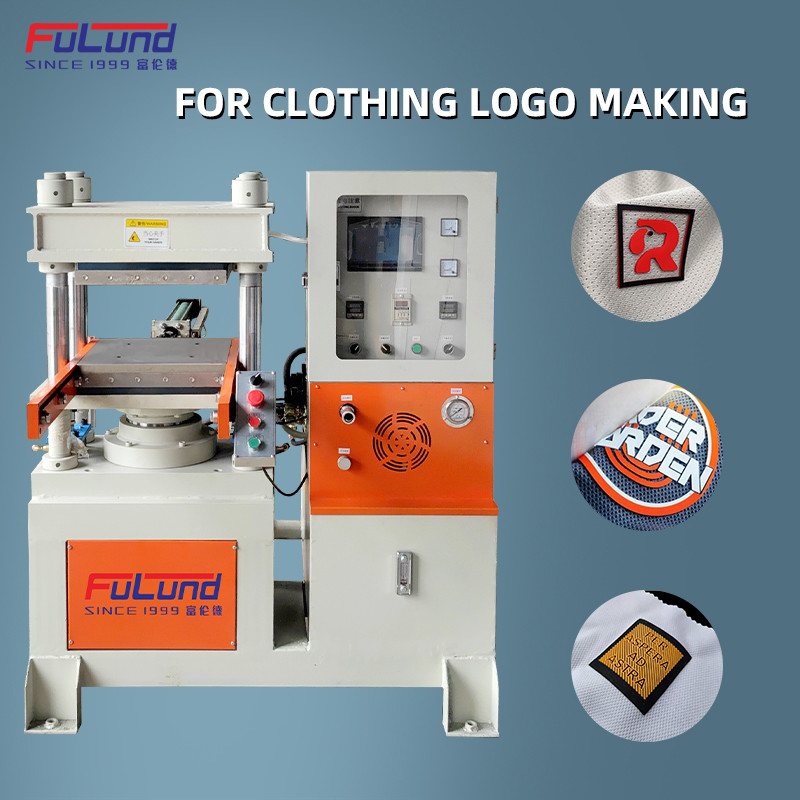

Children's toys, baby products, kitchen supplies, clothing labels, equipment seals, etc.

Technical parameters:



Model No. FLD-V70T
Machine size 1600*1200*1600mm
Weight 1100kg
Power 13kw
Hot plate specifications 400*400mm
Temperature range Normal temperature -350℃
Hot plate spacing 200mm
Way to heat up Imported heating tube
Mold opening method Automatic mold release
System pressure 18MPa
Main column diameter 210mm
Clamping stroke 220mm
Work level Upper and lower layers
Motor power 3.75kw
Greatest pressure 70 tons
Machine structure Four-column/single-head model
Power specifications 380V/50HZ
