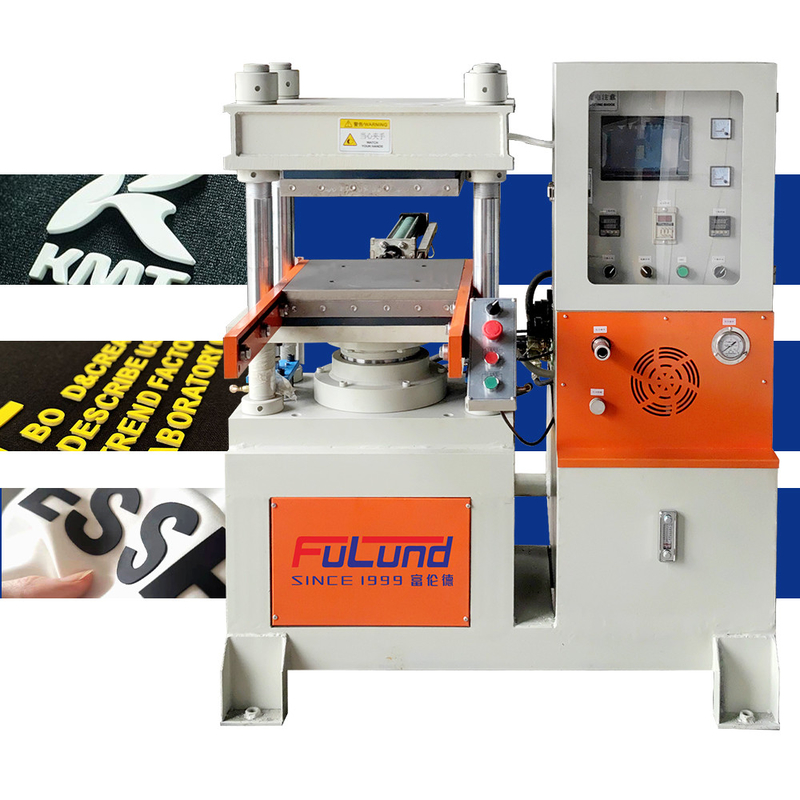

Factory Good Price Vulcanizer Auto Hydraulic Vulcanizing Press Machine

Factory Good Price Vulcanizer Auto Hydraulic Vulcanizing Press Machine

  • Machine Type
    Plate Vulcanizing Press, Vulcanizing Press
  • Dimension(L*W*H)
    1600*1200*1600MM
  • Operating Type
    Automatic
  • Voltage
    380V
  • Weight
    1100kg
  • Keyword 1
    Automatic Car Tyre Vulcanizing Equipment
  • Keyword 2
    Vulcanizing Hot Patch Machine
  • Keyword 3
    Vulcanizing Molding Machine
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-V70T
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

Factory Good Price Vulcanizer Auto Hydraulic Vulcanizing Press Machine

Factory Good Price Vulcanizer Auto Hydraulic Vulcanizing Press Machine

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.

Fulund mainly produces: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.

The bottom plate of Fulund vulcanizer is mostly ordinary carbon steel. The tires are vulcanized by high-temperature steam. During this process, part of the water condensed penetrates into the surface of the bottom plate, causing the surface of the bottom plate to be partially corroded and uneven. Because the surface of the bottom plate is seriously corroded, the surface of the insulation board cannot be closely matched, and the insulation board is easily damaged under high pressure. The traditional method is mainly to re-machine or replace new equipment after surfacing welding. At present, polymer composite materials can be used for on-site repair. Because the material has excellent adhesion, good corrosion resistance and good compressive strength, it can effectively solve the unevenness caused by the condensed water on the bottom plate of the vulcanizer during the operation of the bottom plate, thereby avoiding the damage of the heat insulation board and providing the user equipment. It provides a good guarantee for normal operation and safe production.

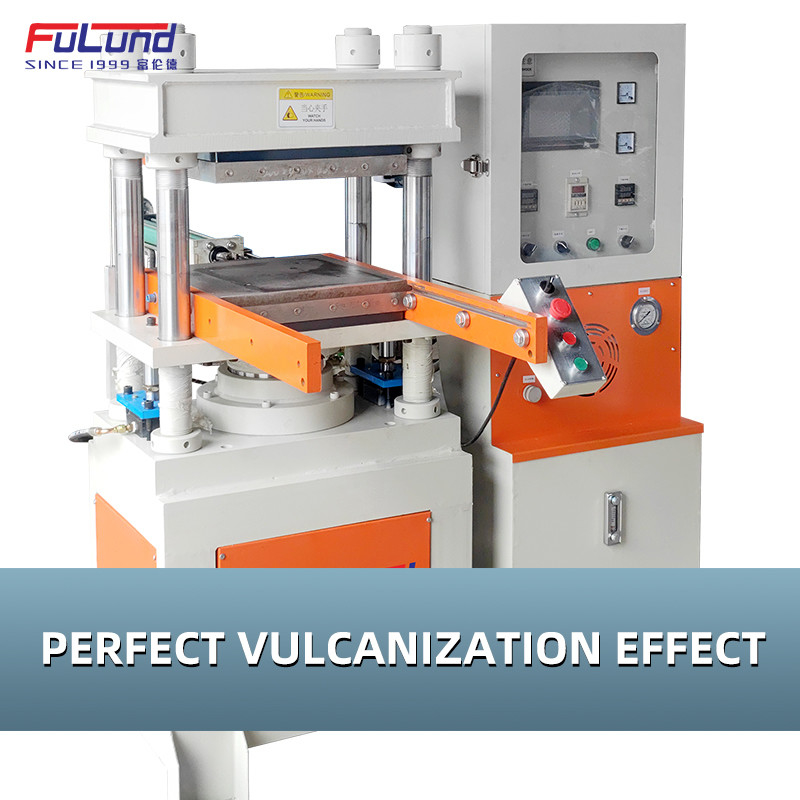

Introduction to the structure of the vulcanizer:

1. Structural stability: a special four-column structure is adopted, the upper seat is reinforced with medium carbon steel, and the upright column is thickened and hardened to ensure structural stability and accuracy.

2. System: The high plane pressure equalization correction is adopted, and the pressure (18mpa) strengthens the nut leveling device, which can increase the parallelism of the upper and lower heating plates to 0.05mm.

3. Temperature control system: Adjustable from room temperature to 350°C, using intelligent temperature control to control the temperature fluctuation range within ±2°C.

4. Operating system: PLC combined with touch screen, whether debugging or production, can be controlled directly and simply.

5. Operating system: The optimally designed oil circuit and high-quality oil circuit accessories ensure the smooth operation of the entire oil circuit system from the principle and accessories.

6. Energy-saving system: The heating plate adopts the deep hole processing technology, which is closely matched with the heating pipe to reduce the heat loss during the heat transfer process.

7. The intelligent system can automatically push out the mold, thereby reducing the labor time of the staff, increasing efficiency, high output and saving time.



Scope of application:

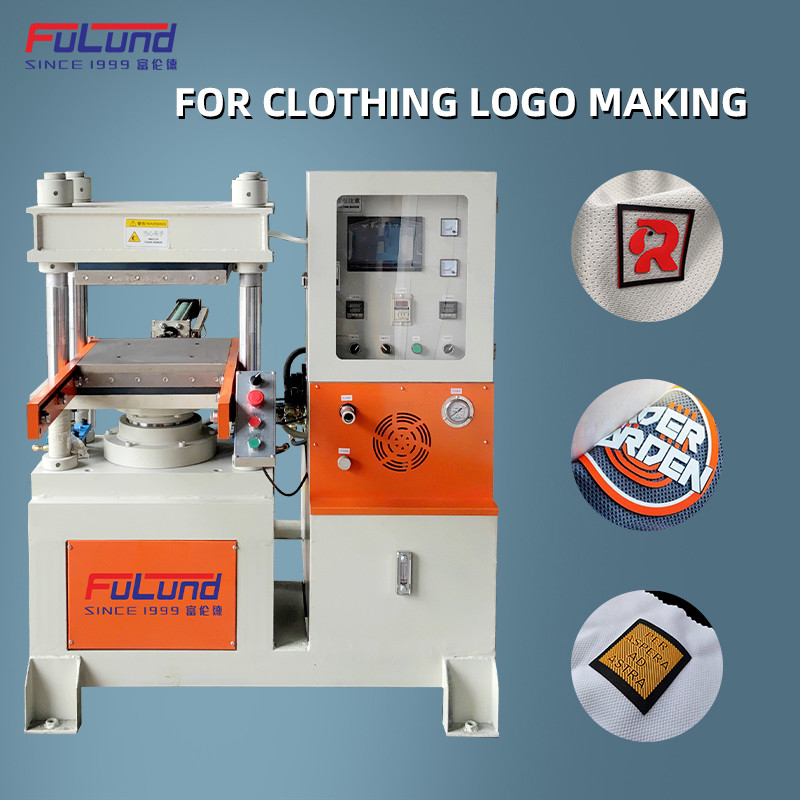

Children's toys, baby products, kitchen supplies, clothing labels, equipment seals, etc.

Technical parameters:



Model No. FLD-V70T
Machine size 1600*1200*1600mm
Weight 1100kg
Power 13kw
Hot plate specifications 400*400mm
Temperature range Normal temperature -350℃
Hot plate spacing 200mm
Way to heat up Imported heating tube
Mold opening method Automatic mold release
System pressure 18MPa
Main column diameter 210mm
Clamping stroke 220mm
Work level Upper and lower layers
Motor power 3.75kw
Greatest pressure 70 tons
Machine structure Four-column/single-head model
Power specifications 380V/50HZ
