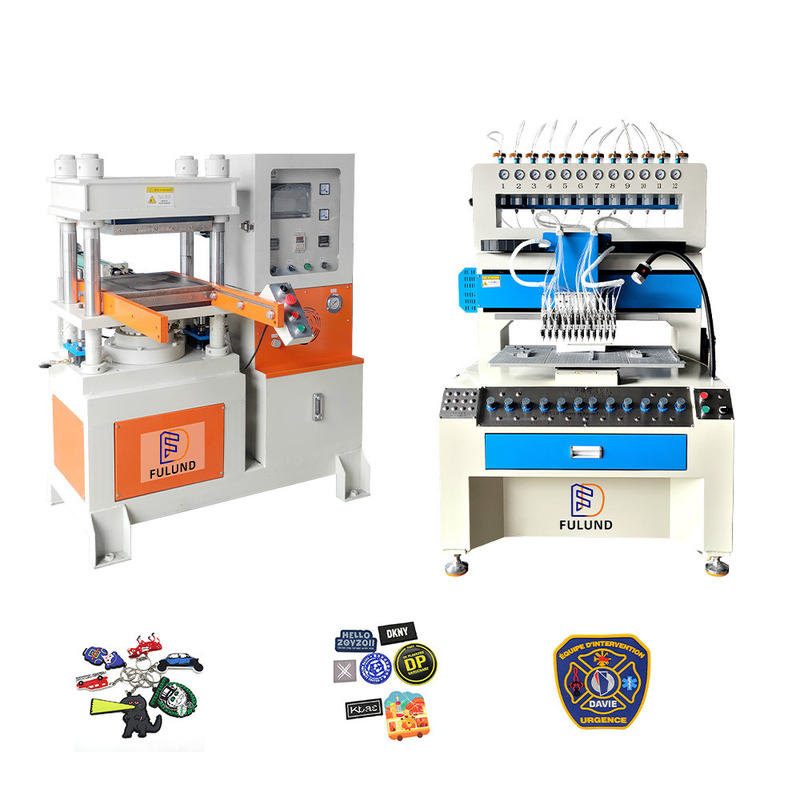

Press Hot Patch Silicone Products Making Machine , Rubber Vulcanizing Machine OEM ODM

Best Selling Product Press Hot Patch Silicone Rubber Vulcanizing Machine

The bottom plate of the vulcanizer is mostly ordinary carbon steel, and the tire is vulcanized by high-temperature steam. During this process, part of the water condensed penetrates into the surface of the bottom plate, causing the surface of the bottom plate to be partially corroded and uneven. Because the surface of the bottom plate is seriously corroded, the surface of the insulation board cannot be closely matched, and the insulation board is easily damaged under high pressure. The traditional method is mainly to re-machine or replace new equipment after surfacing welding. At present, polymer composite materials can be used for on-site repair. Because the material has excellent adhesion, good corrosion resistance and good compressive strength, it can effectively solve the unevenness caused by the condensed water on the bottom plate of the vulcanizer during the operation of the bottom plate, thereby avoiding the damage of the heat insulation board and providing the user equipment. It provides a good guarantee for normal operation and safe production.

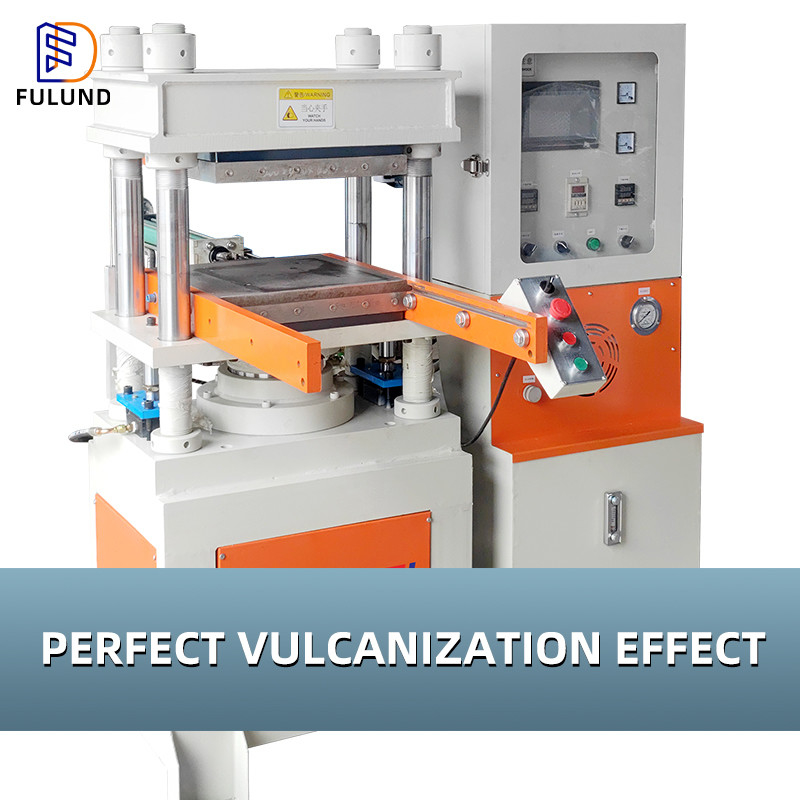

Introduction to the structure of the vulcanizer:

1. Structural stability: a special four-column structure is adopted, the upper seat is reinforced with medium carbon steel, and the upright column is thickened and hardened to ensure structural stability and accuracy.

2. System: The high plane pressure equalization correction is adopted, and the pressure (18mpa) strengthens the nut leveling device, which can increase the parallelism of the upper and lower heating plates to 0.05mm.

3. Temperature control system: Adjustable from room temperature to 350°C, using intelligent temperature control to control the temperature fluctuation range within ±2°C.

4. Operating system: PLC combined with touch screen, whether debugging or production, can be controlled directly and simply.

5. Operating system: The optimally designed oil circuit and high-quality oil circuit accessories ensure the smooth operation of the entire oil circuit system from the principle and accessories.

6. Energy-saving system: The heating plate adopts the deep hole processing technology, which is closely matched with the heating pipe to reduce the heat loss during the heat transfer process.

7. The intelligent system can automatically push out the mold, thereby reducing the labor time of the staff, increasing efficiency, high output and saving time.

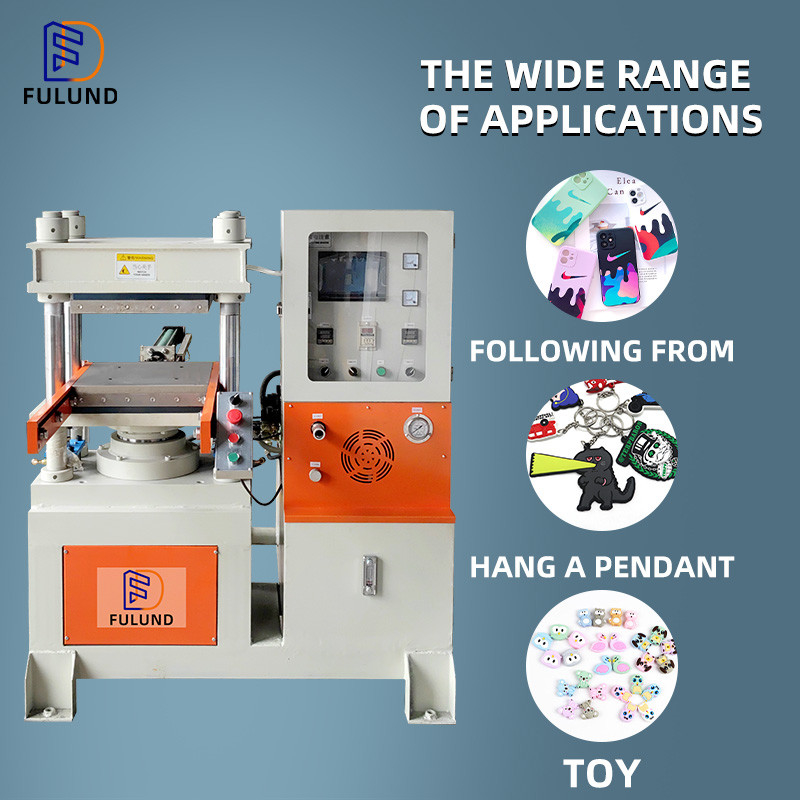

Scope of application:

Children's toys, baby products, kitchen supplies, clothing labels, equipment seals, etc.
