Pneumatic Silicone Products Making Machine , Vulcanizing Hot Press Machine For Rubber

Pneumatic Silicone Products Making Machine , Vulcanizing Hot Press Machine For Rubber

  • High Light

    Pneumatic Silicone Products Making Machine

    ,

    Silicone Products Making Machine Hot Press

    ,

    Vulcanizing Hot Press Machine For Rubber

  • Machine Type
    Plate Vulcanizing Press, Vulcanizing Press
  • Dimension(L*W*H)
    1600*1200*1600MM
  • Operating Type
    Automatic
  • Voltage
    380V
  • Weight
    1100kg
  • Keyword 1
    Rubber Stamp Vulcanizing Press
  • Keyword 2
    Rubber Shoe Sole Vulcanizing Press Machine
  • Keyword 3
    Pvc Vulcanizing Press
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-V70T
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

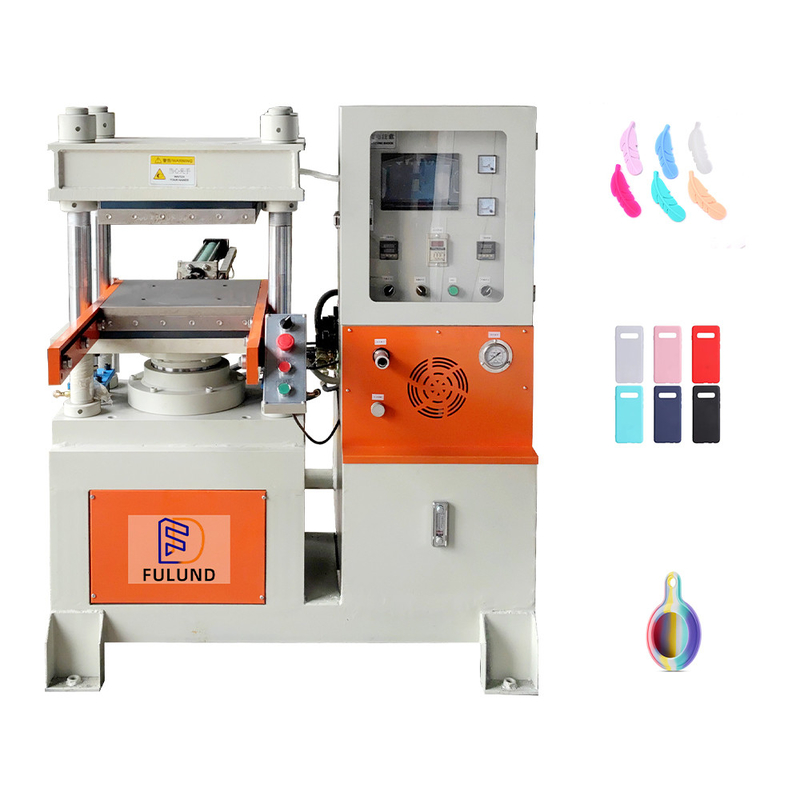

Pneumatic Silicone Products Making Machine , Vulcanizing Hot Press Machine For Rubber

New Type Plate Portable Hot Press Automatic Pneumatic Vulcanizing Machine

Temperature control of vulcanizing machine template:
Flat Vulcanized Oil Heaters Features:
1 Computer touch control, easy to operate.
2 Japan imported microcomputer dual-group P.I.D temperature control table, touch-type internal storage, automatic calculation, saving more than 35% of electricity.
3. Perfect safety protection and fault indication system.
4 Imported advanced components, long service life.
5. The heating and cooling speed is fast, and the temperature is accurate and stable.
6 Unique dual-power heating design, suitable for use in different temperature-controlled places, with obvious energy-saving effect.
7Stainless steel is integrally formed, the tube loss is small, and the heating is even.
8. Automatic exhaust function when booting.
9 Mold return oil temperature detection table.

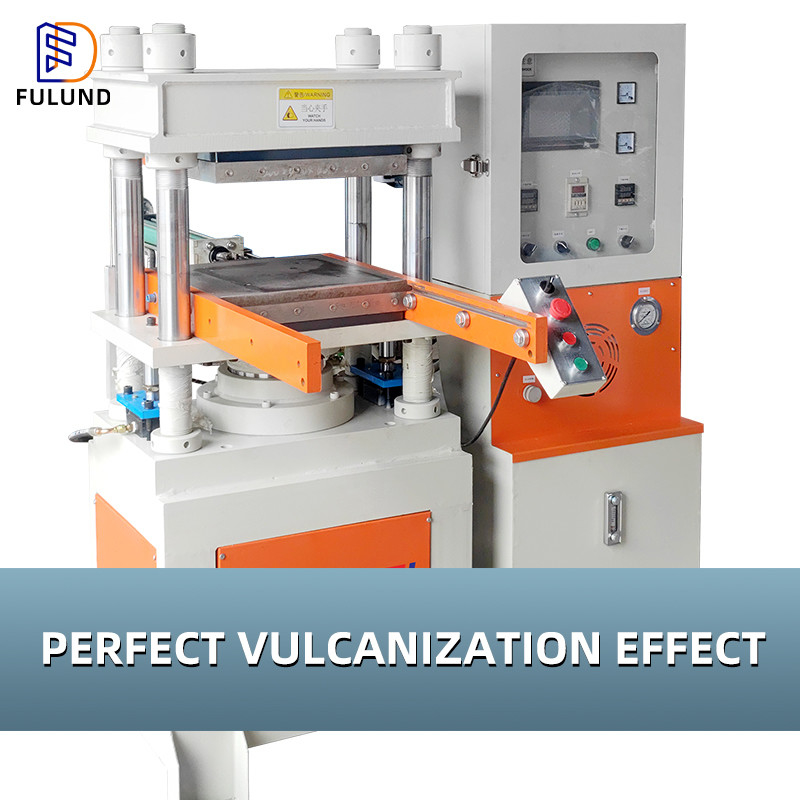

Introduction to the structure of the vulcanizer:

1. Structural stability: a special four-column structure is adopted, the upper seat is reinforced with medium carbon steel, and the upright column is thickened and hardened to ensure structural stability and accuracy.

2. System: The high plane pressure equalization correction is adopted, and the pressure (18mpa) strengthens the nut leveling device, which can increase the parallelism of the upper and lower heating plates to 0.05mm.

3. Temperature control system: Adjustable from room temperature to 350°C, using intelligent temperature control to control the temperature fluctuation range within ±2°C.

4. Operating system: PLC combined with touch screen, whether debugging or production, can be controlled directly and simply.

5. Operating system: The optimally designed oil circuit and high-quality oil circuit accessories ensure the smooth operation of the entire oil circuit system from the principle and accessories.

6. Energy-saving system: The heating plate adopts the deep hole processing technology, which is closely matched with the heating pipe to reduce the heat loss during the heat transfer process.

7. The intelligent system can automatically push out the mold, thereby reducing the labor time of the staff, increasing efficiency, high output and saving time.

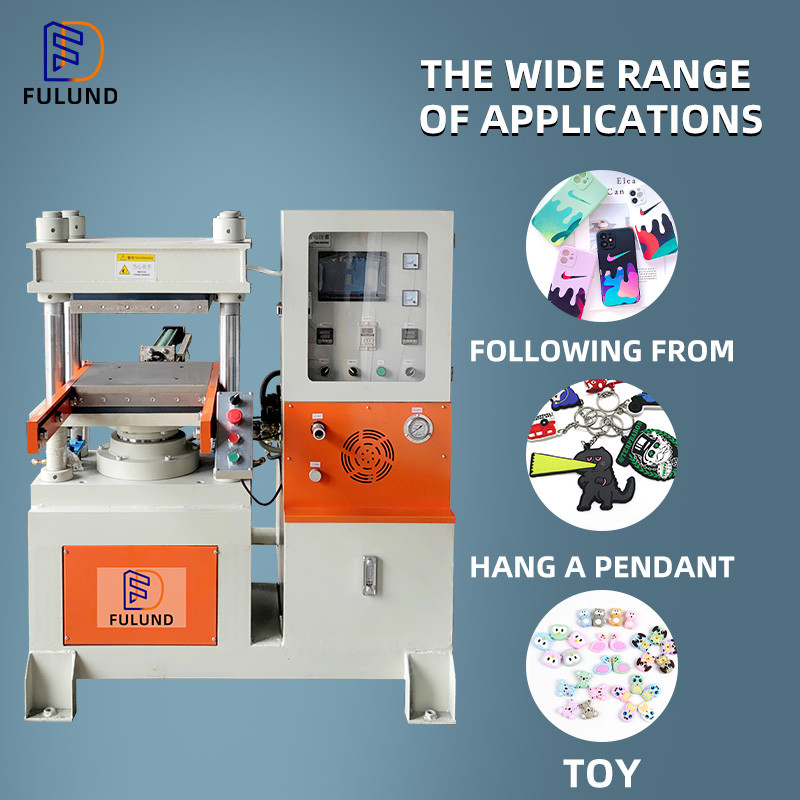

Scope of application:

Children's toys, baby products, kitchen supplies, clothing labels, equipment seals, etc.

Technical parameters:



Model No. FLD-V70T
Machine size 1600*1200*1600mm
Weight 1100kg
Power 13kw
Hot plate specifications 400*400mm
Temperature range Normal temperature -350℃
Hot plate spacing 200mm
Way to heat up Imported heating tube
Mold opening method Automatic mold release
System pressure 18MPa
Main column diameter 210mm
Clamping stroke 220mm
Work level Upper and lower layers
Motor power 3.75kw
Greatest pressure 70 tons
Machine structure Four-column/single-head model
Power specifications 380V/50HZ
