70 Tons Shoe Vulcanizing Machine 380V 50HZ For Rubber Sole Making

70 Tons Shoe Vulcanizing Machine 380V 50HZ For Rubber Sole Making

  • High Light

    70 Tons Shoe Vulcanizing Machine

    ,

    50HZ Shoe Vulcanizing Machine

    ,

    Sole Rubber Vulcanizing Machine

  • Machine Type
    Plate Vulcanizing Press, Vulcanizing Press
  • Dimension(L*W*H)
    1600*1200*1600MM
  • Operating Type
    Automatic
  • Voltage
    380V
  • Weight
    1100kg
  • Keyword 1
    Auto Vulcanizing Press Machine
  • Keyword 2
    Vulcanizing Machine For Phone Case
  • Keyword 3
    Rubber Vulcanizing Machine
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-V70T
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

70 Tons Shoe Vulcanizing Machine 380V 50HZ For Rubber Sole Making

CE passed FuLund Good Quality Cheap Hot Machine 70T Rubber Shoe Sole Vulcanizing Press

The working principle of the vulcanizer
When the vulcanizing machine is working, the lifting cylinder drives the upper die to rise along the guide column, forming a cavity in the frame, the tire loading device turns into the tire loading, the upper and lower rings of the central mechanism rise, the tire embryo is positioned, and the tire loading device exits after unloading the tire. The lifting cylinder drives the upper mold to descend along the guide column to close the mold, and the mold is closed after the embryo is shaped.

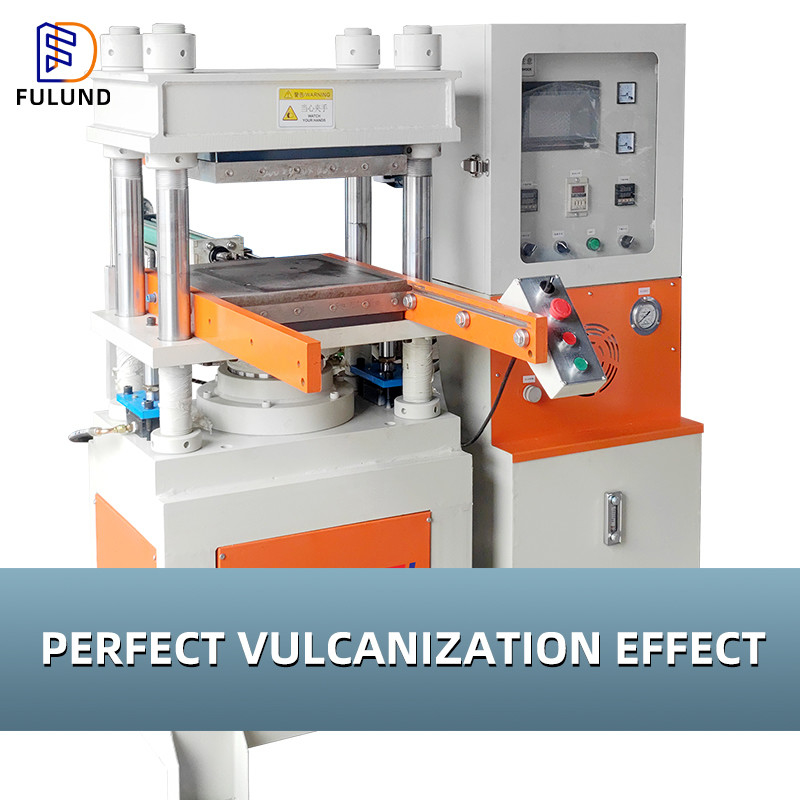

Introduction to the structure of the vulcanizer:

1. Structural stability: a special four-column structure is adopted, the upper seat is reinforced with medium carbon steel, and the upright column is thickened and hardened to ensure structural stability and accuracy.

2. System: The high plane pressure equalization correction is adopted, and the pressure (18mpa) strengthens the nut leveling device, which can increase the parallelism of the upper and lower heating plates to 0.05mm.

3. Temperature control system: Adjustable from room temperature to 350°C, using intelligent temperature control to control the temperature fluctuation range within ±2°C.

4. Operating system: PLC combined with touch screen, whether debugging or production, can be controlled directly and simply.

5. Operating system: The optimally designed oil circuit and high-quality oil circuit accessories ensure the smooth operation of the entire oil circuit system from the principle and accessories.

6. Energy-saving system: The heating plate adopts the deep hole processing technology, which is closely matched with the heating pipe to reduce the heat loss during the heat transfer process.

7. The intelligent system can automatically push out the mold, thereby reducing the labor time of the staff, increasing efficiency, high output and saving time.

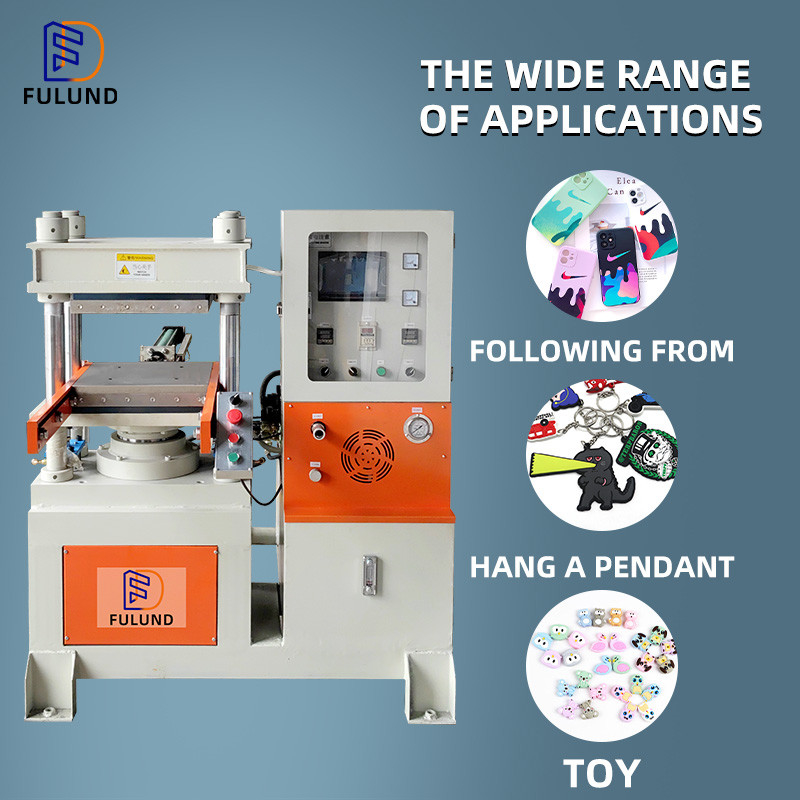

Scope of application:

Children's toys, baby products, kitchen supplies, clothing labels, equipment seals, etc.

Technical parameters:



Model No. FLD-V70T
Machine size 1600*1200*1600mm
Weight 1100kg
Power 13kw
Hot plate specifications 400*400mm
Temperature range Normal temperature -350℃
Hot plate spacing 200mm
Way to heat up Imported heating tube
Mold opening method Automatic mold release
System pressure 18MPa
Main column diameter 210mm
Clamping stroke 220mm
Work level Upper and lower layers
Motor power 3.75kw
Greatest pressure 70 tons
Machine structure Four-column/single-head model
Power specifications 380V/50HZ
