Vulcanizing Hydraulic Press For Rubber Moulding Machine 380V 50HZ

Vulcanizing Hydraulic Press For Rubber Moulding Machine 380V 50HZ

  • High Light

    50HZ Hydraulic Press For Rubber Moulding

    ,

    380V Hydraulic Press For Rubber Moulding

    ,

    Vulcanizing rubber pressing machine

  • Machine Type
    Plate Vulcanizing Press, Vulcanizing Press
  • Dimension(L*W*H)
    1600*1200*1600MM
  • Operating Type
    Automatic
  • Voltage
    380V
  • Weight
    1100kg
  • Keyword 1
    Large Vulcanizing Rubber Press
  • Keyword 2
    Hydraulic Vulcanizing Press Machine
  • Keyword 3
    Platen Vulcanizing Press
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-V70T
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    WOODEN CASE
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100PCS/MONTH

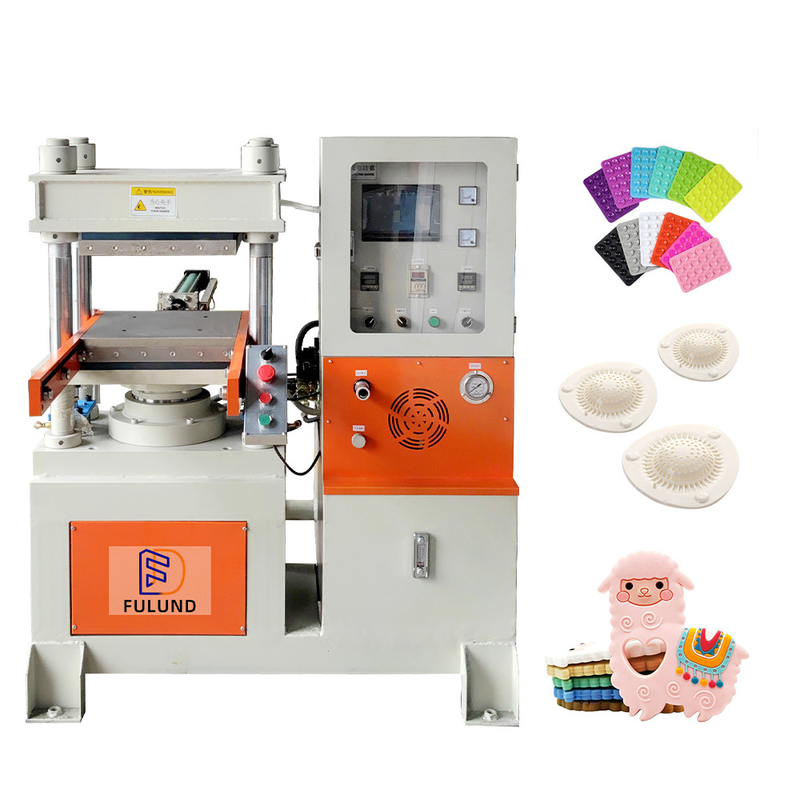

Vulcanizing Hydraulic Press For Rubber Moulding Machine 380V 50HZ

textile fabric O Ring rubber Vulcanizer Hydraulic Vulcanization Rubber Car Mat Vulcanizing Press Machine

Features of flat vulcanizer:
1. The classic four-column three-beam structure is adopted, the medium carbon steel thickens the upper seat, and the thickened and hardened columns ensure the stability of the structure.
2. The use of technical plane equalization correction and pressure (200kg) nut leveling device can increase the parallelism of the upper and lower heating plates to 0.05mm.
3. Adjustable from room temperature to 400°C, using intelligent temperature control to control the temperature fluctuation range within ±2°C.
4. The combination of PLC and touch screen can be operated directly and simply whether it is debugging or production.
5. The oil circuit and the oil circuit accessories of the optimized design keep stable during the operation of the entire oil circuit system of the hydraulic press from the principle and accessories.
6. The heat in the hydraulic circuit is taken away in time, the oil circuit runs at a proper temperature, and the working life of the hydraulic system.
7. The heating plate adopts the deep hole processing technology, which is closely matched with the heating pipe to reduce the heat loss during the heat transfer process, so as to achieve the purpose of energy saving.
8. Special customization can be made according to customer needs.

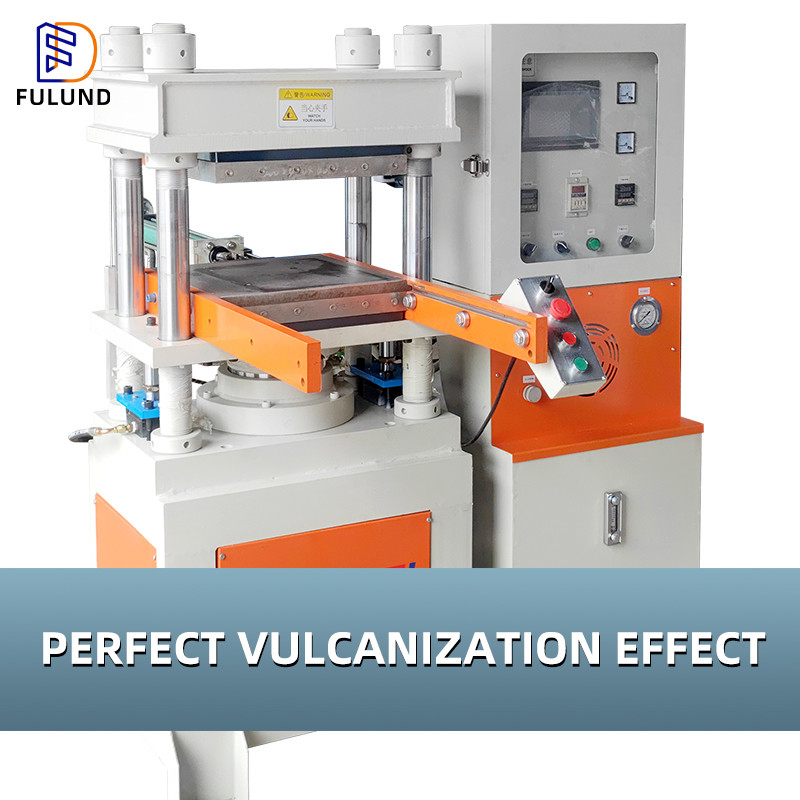

Introduction to the structure of the vulcanizer:

1. Structural stability: a special four-column structure is adopted, the upper seat is reinforced with medium carbon steel, and the upright column is thickened and hardened to ensure structural stability and accuracy.

2. System: The high plane pressure equalization correction is adopted, and the pressure (18mpa) strengthens the nut leveling device, which can increase the parallelism of the upper and lower heating plates to 0.05mm.

3. Temperature control system: Adjustable from room temperature to 350°C, using intelligent temperature control to control the temperature fluctuation range within ±2°C.

4. Operating system: PLC combined with touch screen, whether debugging or production, can be controlled directly and simply.

5. Operating system: The optimally designed oil circuit and high-quality oil circuit accessories ensure the smooth operation of the entire oil circuit system from the principle and accessories.

6. Energy-saving system: The heating plate adopts the deep hole processing technology, which is closely matched with the heating pipe to reduce the heat loss during the heat transfer process.

7. The intelligent system can automatically push out the mold, thereby reducing the labor time of the staff, increasing efficiency, high output and saving time.

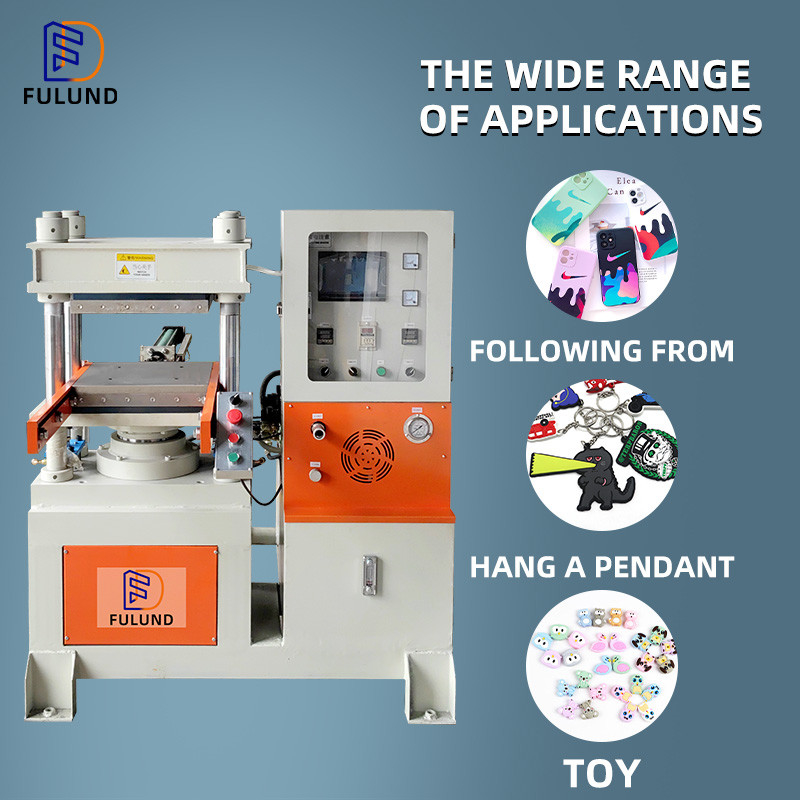

Scope of application:

Children's toys, baby products, kitchen supplies, clothing labels, equipment seals, etc.

Technical parameters:



Model No. FLD-V70T
Machine size 1600*1200*1600mm
Weight 1100kg
Power 13kw
Hot plate specifications 400*400mm
Temperature range Normal temperature -350℃
Hot plate spacing 200mm
Way to heat up Imported heating tube
Mold opening method Automatic mold release
System pressure 18MPa
Main column diameter 210mm
Clamping stroke 220mm
Work level Upper and lower layers
Motor power 3.75kw
Greatest pressure 70 tons
Machine structure Four-column/single-head model
Power specifications 380V/50HZ
