Nike Aj Adidas Air pressure type pressure Small hot press desktop type hot press
What are the classifications of hot stamping machines?
1. Manual hot stamping machine: There are various models from small to large, which can be stamped from small to famous, large to folio size, but the speed is slow.
2. Versionless hot stamping machine: suitable for industries, such as: printing, card making, signage, video, gifts, personalized greeting cards, celebrations, Spring Festival couplets and other industries.
(1) There is no need to make a zinc plate for processing gold and silver, and computer typesetting, instant printing, etc.
(2) Special software control to eliminate the problem that complex patterns cannot be processed.
(3) Value-for-money yellow processing format, the paper feed width is 350mm, the actual printing is 252mm, and the length is not limited. It can be printed on rolls or A3.
(4) Printing media include: leather, notebook, cardboard, coated paper, binding paper, self-adhesive, plastic, cloth, ribbon, etc.

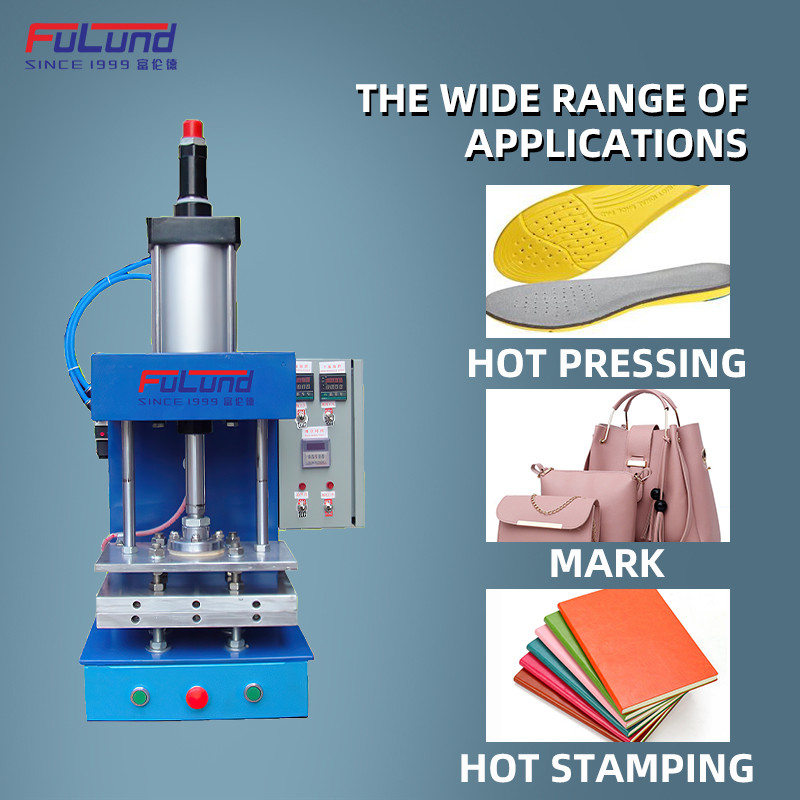

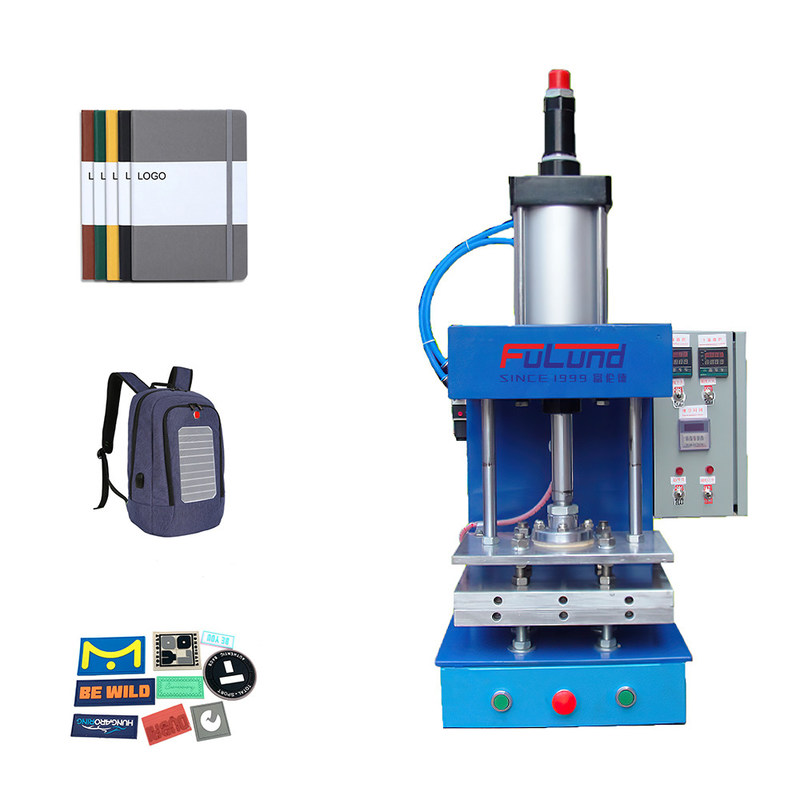

Features of heat press machine:
1. Powered by compressed air, the descending speed is adjustable
2. Mini table C type model
3. The adjustable stroke of the cylinder is easy to adjust, and the downward speed of the cylinder is adjustable
4. The mechanical start method has a double button switch (or optional foot switch) design
5. The cylinder is equipped with anti-rotation double guide rods to make the work more accurate; in addition, the output of the cylinder can be adjusted by the pressure regulating valve
6. The upper and lower molds have heating function (for hot pressing, stamping, branding, bronzing, printing, etc.)
7. Use pressure (air pressure): 4-7KG/square centimeter Maximum mechanical stroke: 120MM adjustable 50MM
8. Adjustable temperature: normal temperature -250 degrees, adjustable up and down independent temperature control Mechanical appearance: W400*D600*H500MM
9. Hot pressing time: 0.01S-99.99H can be adjusted arbitrarily; heating plate area: 200*300MM (size can be customized)
10. Power of the whole machine: 5KW Power supply voltage: 380/220V (single-phase) Mechanical weight: 70KG
Hot press setting machine parameters
1. Automatic constant temperature,
2. Automatic timing
3. Automatic counting
4. C frame construction
5. Double start switch
| Heating plate area | 200MM*300MM | 300MM*400MM |
| Temperature regulation | Room temperature~300°C can be adjusted arbitrarily | Room temperature~300°C can be adjusted arbitrarily |
| Temperature control | Automatic constant temperature | Automatic constant temperature |
| temperature accuracy | ±2℃ | ±2℃ |
| Air pressure | 0.4-0.7Mpa | 0.4-0.7Mpa |
| power supply | AC220V±5% 50/60HZ | AC380V±5% 50/60HZ |
| Power | 3.6KW | 5.6KW |
| Hot pressing time | 0.1S~99.99H | 0.1S~99.99H |
| Mechanical pressure | 300KG -800KG Adjusted | 300KG -800KG Adjusted |
| cylinder can adjust the distance | 50MM | 50MM |
| host volume | 550×480×960MM | 650*500*980MM |
| Upper and lower mold distance | 150MM | 150MM |
| weight | 90KG | 130KG |
Our products are sold all over the world, you can rest assured.
