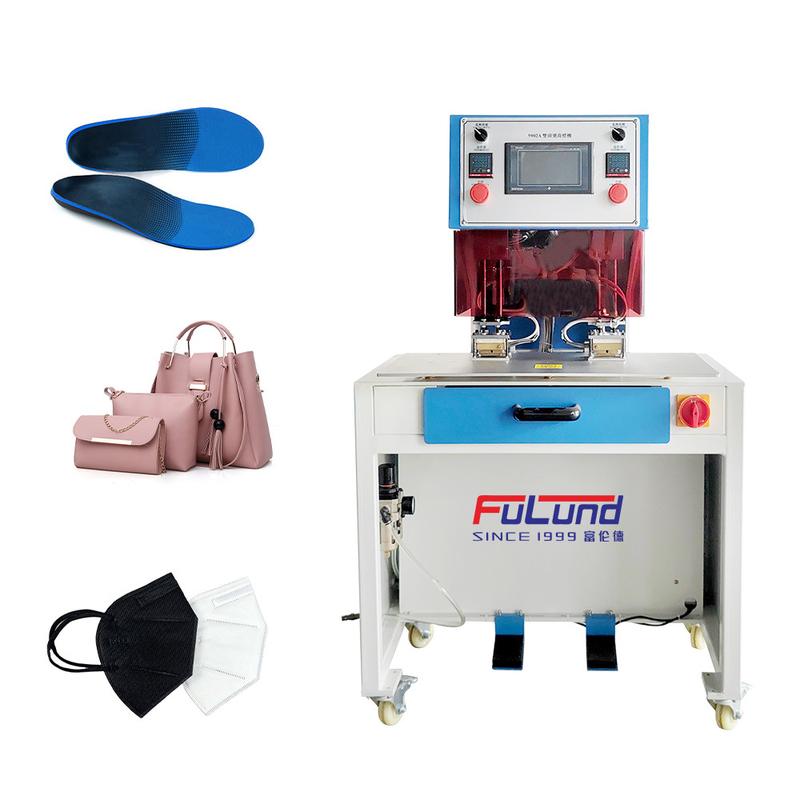

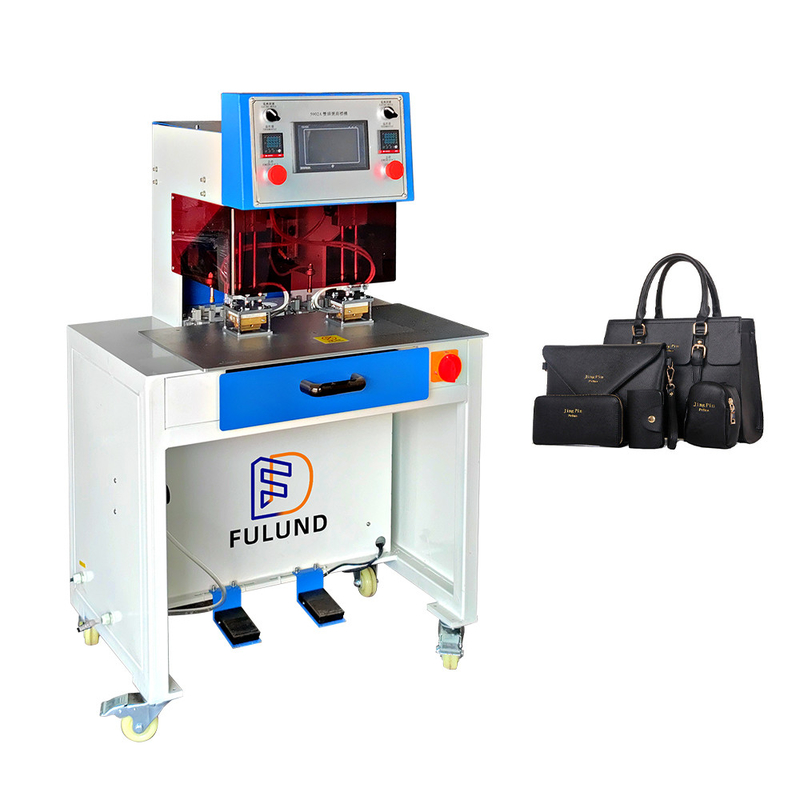

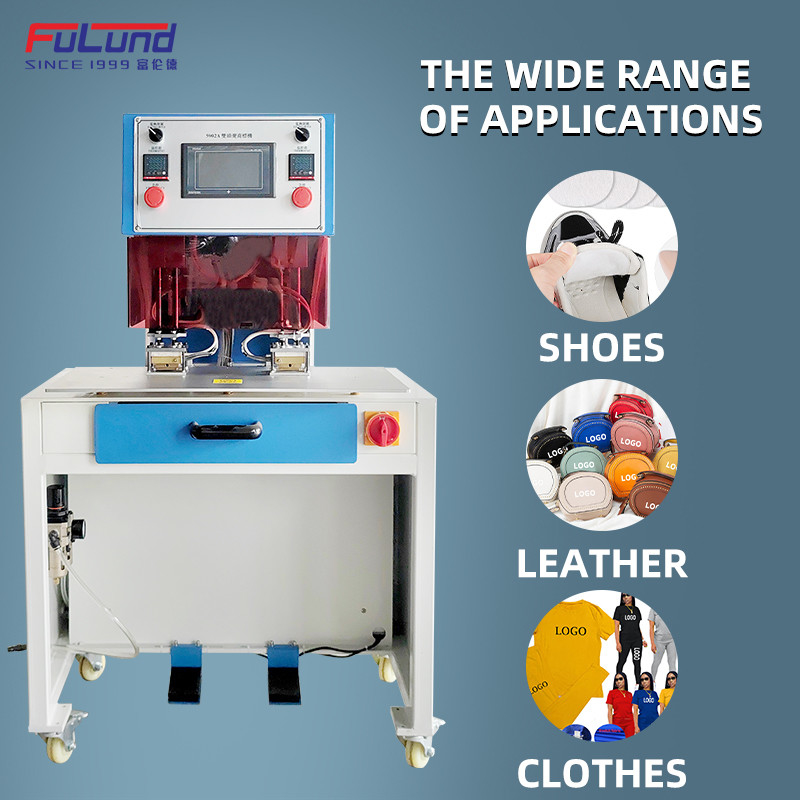

Nike shoe machine Automatic Pneumatic Hot press stamping Machine For Leather Paper shoe wooden Fabric And Plastic
Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.
Fulund mainly products: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.
In recent years, the shoe industry has experienced an unprecedented reshuffle. While large shoe companies represented by Anta and Xtep have continued to grow bigger and stronger, small and medium-sized shoe factories have gradually been eliminated.
Features:
1, Intellectualized human- machine interface, Chinese/English/Vietnamese systems, easy to operate.

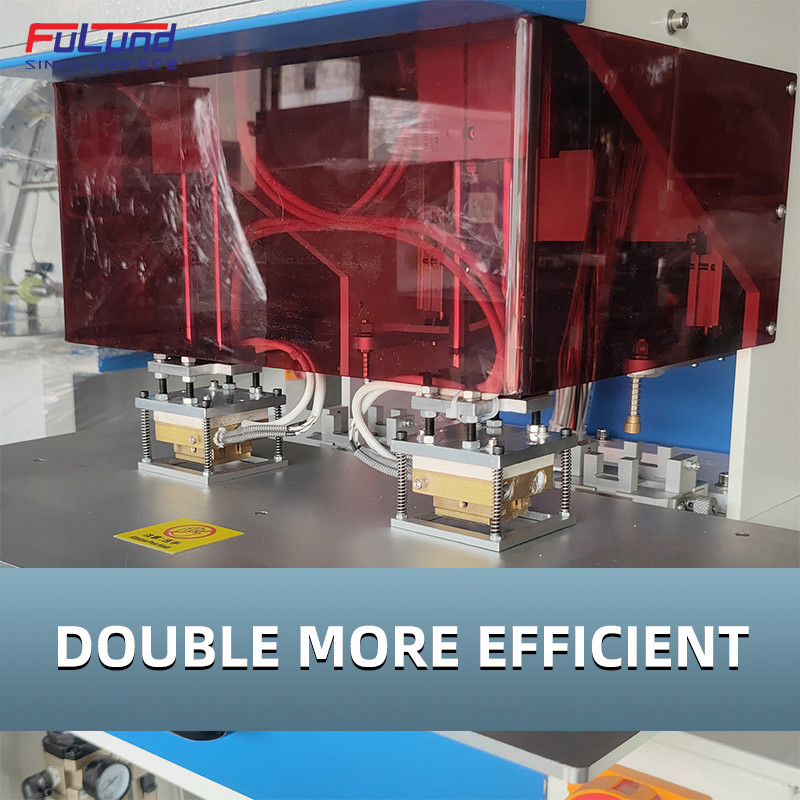

2, Double-position, it is more suitable for the material which is bigger size and longer pressing time, intersecting working of two positions, when put the material on one position, the other position is on pressing at the same time, save the waiting time, thus production efficiency is effectively improved.
3, Can form a dedicated label printer, can print the label timely according to the requirements.
4, Easy to operate, worker only need put the material according the locating piece, novices can easy to handle, greatly reduce the factory training cost, and the output will not decrease when the skilled worker leaves.
5, High precision and high efficiency, the efficiency is 1.5 times of the traditional process
6, Temperature, pressure, pressing time can be adjusted according to the press effect, and also can set the trouble alarm of temperature trouble alarm, pneumatic pressure to ensure the product quality.
| Model No. |
Machine measure(mm) |
Wood case measure(mm) |
N.W/ G.W (kgs) | Capacity |
| FLD-5902A | 900*620*1370 | 970*700*1440 | 145/180 | 1300pcs/hour |
| Voltage | Air pressure | Power |
Heat transfer temperature |
|
| AC220V/50HZ | 0.45~0.55mpa | 1.5kW | 30~280℃ |
Contrast:
| Capacity | The impact of skilled and novice | Operator | Feeding way | Infeeding label way | Precision of putting label | |
|
Traditional machine |
800 pcs/hour |
big | 1 |
Manual |
manual infeeding label |
±1mm |
| FLD-5902A |
1300 pcs/hour |
small | 1 |
Manual |
Automatic infeeding label |
±0.1mm |
Conclustion:1,Use FLD-5902A, higher accuracy location than manual location, high efficiency, can save more labor cost. For example: Monthly labor cost $547, if use the FLD-5902A, the label cost can save 547x12x1.5=$9846 one year.
2, FLD-5902A is less depending on skilled, ensure the daily capacity.
