Transfer Embossing Shoe Making Machine Automatic For Screen Printing

Transfer Embossing Shoe Making Machine Automatic For Screen Printing

  • High Light

    Embossing Shoe Making Machine

    ,

    Screen Printing Shoe Making Machine

    ,

    multifunctional Screen Printing Machine

  • Color & Page
    Single Color
  • Automatic Grade
    Automatic
  • Usage
    Label Printer, Other
  • Product Name
    Printing Logos On T Shirts Machine
  • Other Names
    Print Logo Machine
  • Plate Type
    Screen Printer
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-688C
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    Wooden Case
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100set/MONTH

Transfer Embossing Shoe Making Machine Automatic For Screen Printing

Nike Adidas Custom Logo Print Transfer Embossing Making Machine For Screen Printing

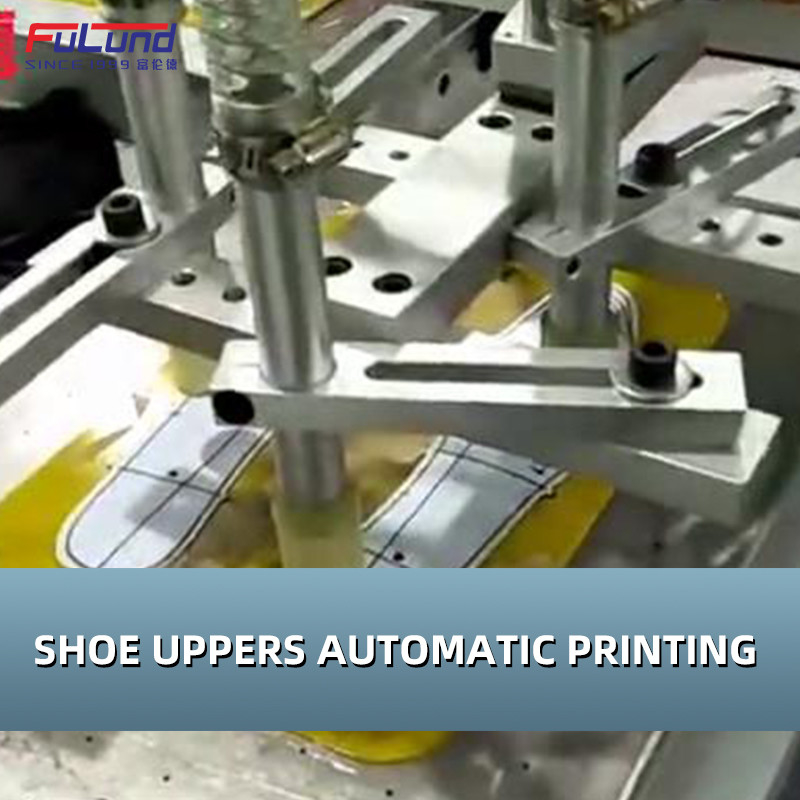

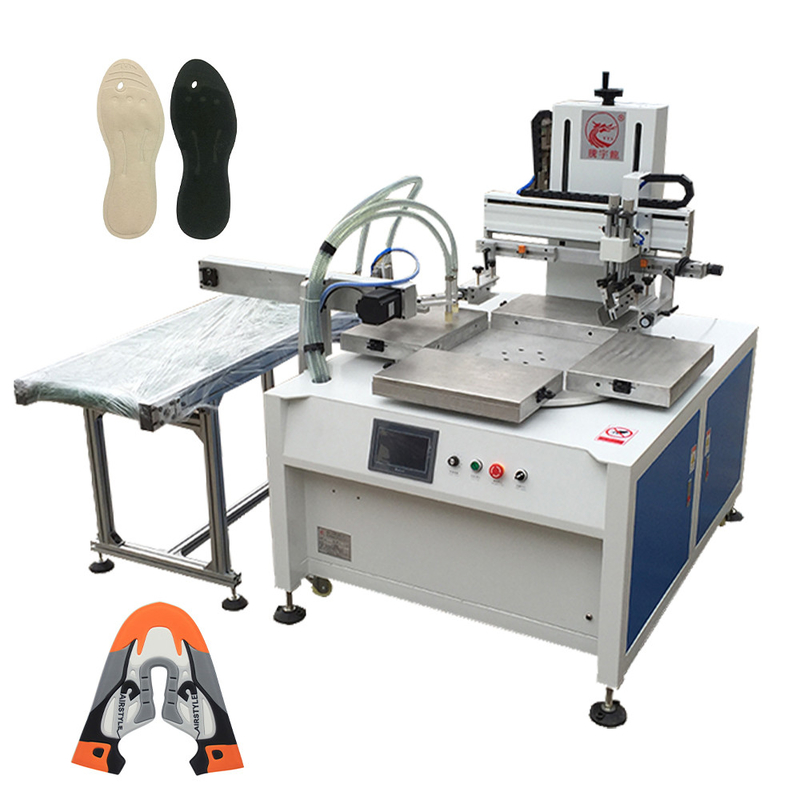

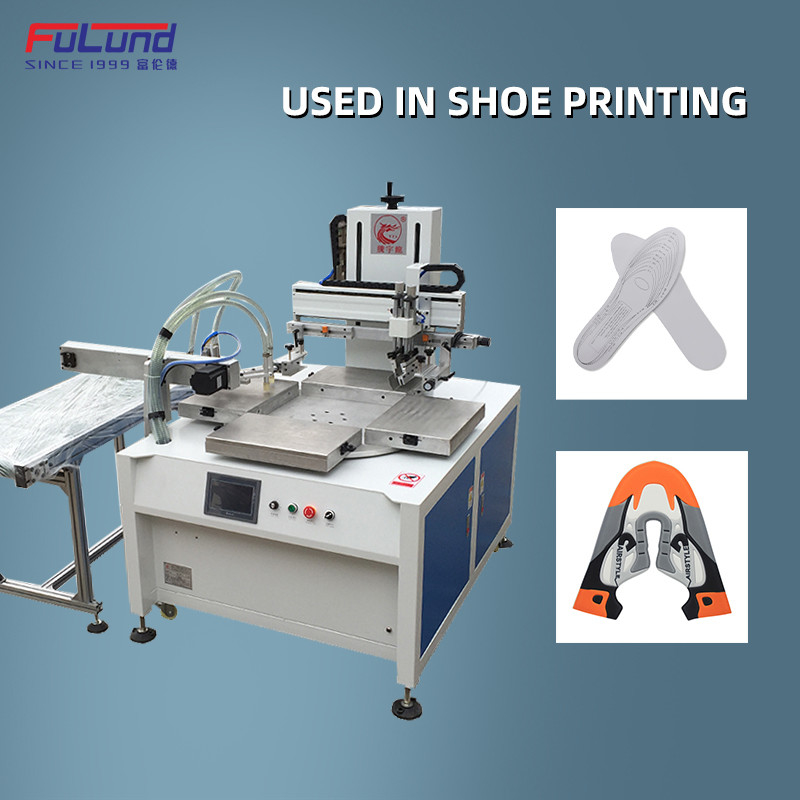

FLD-688C four-station disc printer: this machine is mainly used for automatic printing of insole and upper and automatic material collection.
Machine features:
Automatic printing, automatic material collection, material stacking according to the set output, no manual count directly packed
Manual release of materials has no requirements on the material shape, with a wide range of application
Quick positioning, easy to change plate, simple operation
To reduce the manual printing and material collection process, the manual only needs to place the materials, the operation is simple and the efficiency is fast, reaching 2S/ time, and the efficiency is more than 1.5 times of the traditional process



Model No.

Machine

measure(mm)

Wood case

measure(mm)

N.W/ G.W (kg) Capacity

Max printing

size

FLD-688C 1740*1500*1530 1830*1570*1650 450/550 1500times/hour 450*300mm
Voltage Air pressure Power

Printing

thickness

Printing

platform

220V 4.5~6kpa 6.9kw 0~50mm 600mm

Contrast:

  Capacity Feeding way Receiving way Printing way Operator
Traditional machine 800times/hour Manual Manual Manual put label 1
FLD-688C 1500times/hour Manual Automatic Automatic put label 1

Conclustion:Use FLD-688C, four-station, factory can become automatic, one person can operate one set machine, workers only need put the material, no need manual print, can reduce operator fatigue, higher efficiency, can save more labor cost. For example: Monthly labor cost $547, the label cost can save 547x12x1.5=$9846 one year.

Transfer Embossing Shoe Making Machine Automatic For Screen Printing 0Transfer Embossing Shoe Making Machine Automatic For Screen Printing 1Transfer Embossing Shoe Making Machine Automatic For Screen Printing 2Transfer Embossing Shoe Making Machine Automatic For Screen Printing 3Transfer Embossing Shoe Making Machine Automatic For Screen Printing 4
