Nike Adidas Clothes Printer Screen Printing Machine Automatic Blanking Widely Use In The Printing Of Mid-sole, Bags

Nike Adidas Clothes Printer Screen Printing Machine Automatic Blanking Widely Use In The Printing Of Mid-sole, Bags

  • Name
    Printing Machine
  • Brand
    Fulund
  • Partner
    Nike Adidas
  • Keyword 1
    Automatic Flatbed Screen Printing Machine
  • Keyword 2
    Small Automatic Screen Printing Machine
  • Keyword 3
    Fully Automatic Silk Screen Printing Machine
  • Place of Origin
    CHINA
  • Brand Name
    Fulund
  • Certification
    CE
  • Model Number
    FLD-688C
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    Wooden Case
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    100set/MONTH

Nike Adidas Clothes Printer Screen Printing Machine Automatic Blanking Widely Use In The Printing Of Mid-sole, Bags

Nike Adidas Clothes Printer Screen Printing Machine Automatic Blanking Widely Use In The Printing Of Mid-sole, Bags

According to the degree of automation, screen printing machines can be divided into manual screen printing machines, semi-automatic screen printing machines and automatic screen printing machines. There are few manual screen printing machines that can print curved surfaces. There are two types of semi-automatic screen printing machines and fully automatic screen printing machines: curved screen printing machines and flat screen printing machines. It is common on the market that manual screen printing machines and semi-automatic printing machines do not have a curing system, and use self-drying ink, which is relatively less environmentally friendly. More fully automatic screen printing machines now use uv curing, which is more environmentally friendly.
It is recommended to directly use the automatic screen printing machine for mass production. Most of the automatic screen printing machines can be equipped with automatic feeding system, pre-press processing, curing and visual inspection, which greatly improves work efficiency and printing quality.



Scope of application:

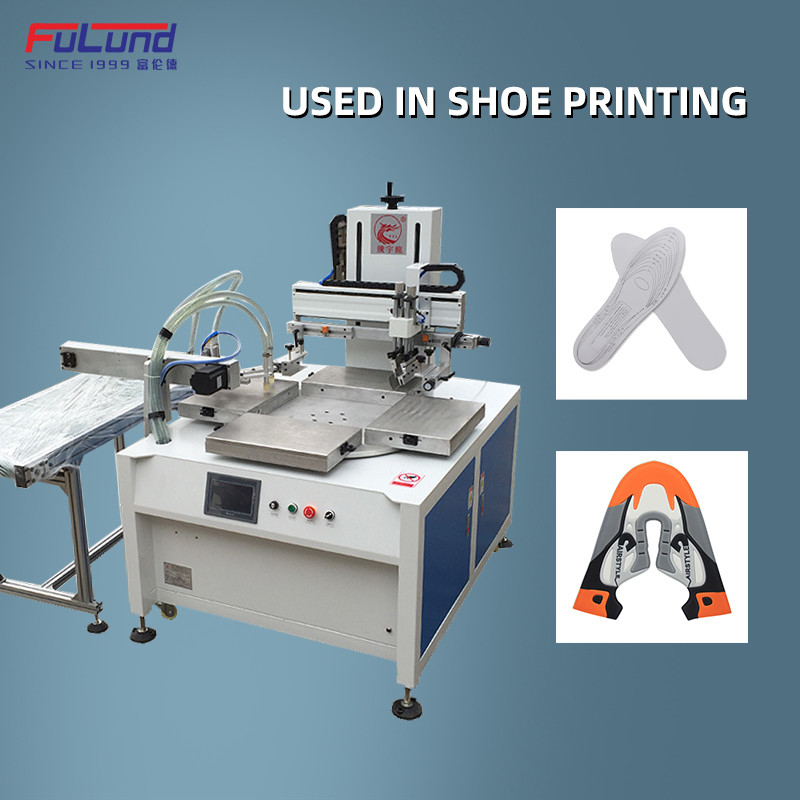

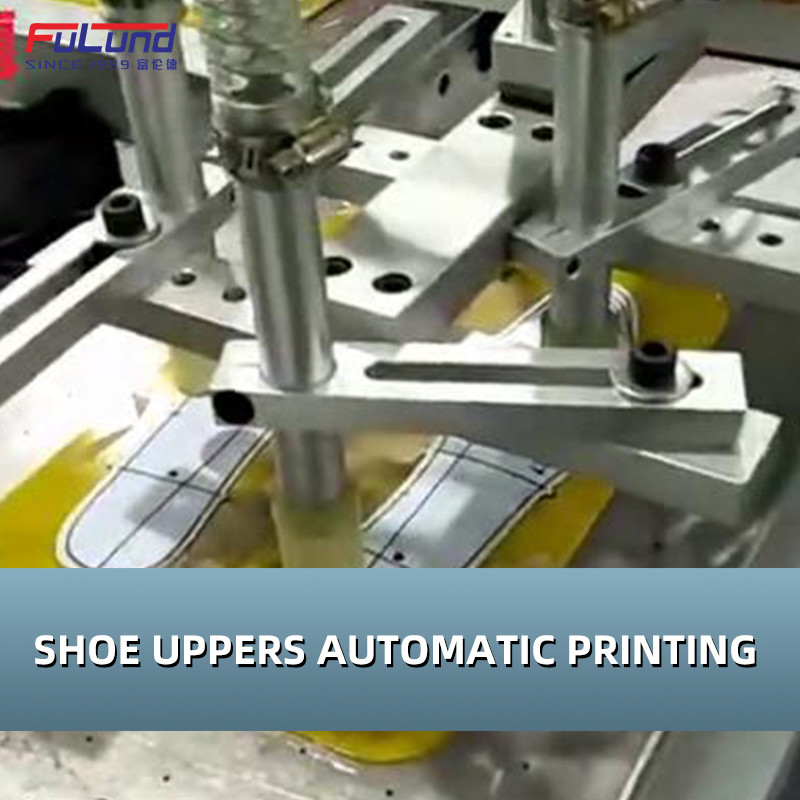

Widely use in the printing of gloves, insoles, shoes upper, mid-sole, bags and other industries , print the position line, mark line and other various shape of cut-parts .



Features:

1, Automatic printing, automatic receiving, can stack according to the setting quantity, no need manual count and can packaging directly.

2, Manual feeding material , suit for any shape material, broad scope.

3, Positioning rapid, change printing plate easily, simple to operate.

4, Reduce manual printing and receiving process, workers only need put the material, high efficiency, 2 Seconds one time, the efficiency is 1.5 times of the traditional process.



Model No.

Machine

measure(mm)

Wood case

measure(mm)

N.W/ G.W (kg) Capacity

Max printing

size

FLD-688C 1740*1500*1530 1830*1570*1650 450/550 1500times/hour 450*300mm
Voltage Air pressure Power

Printing

thickness

Printing

platform

220V 4.5~6kpa 6.9kw 0~50mm 600mm

Contrast:

  Capacity Feeding way Receiving way Printing way Operator
Traditional machine 800times/hour Manual Manual Manual put label 1
FLD-688C 1500times/hour Manual Automatic Automatic put label 1

Conclustion:Use FLD-688C, four-station, factory can become automatic, one person can operate one set machine, workers only need put the material, no need manual print, can reduce operator fatigue, higher efficiency, can save more labor cost. For example: Monthly labor cost $547, the label cost can save 547x12x1.5=$9846 one year.
