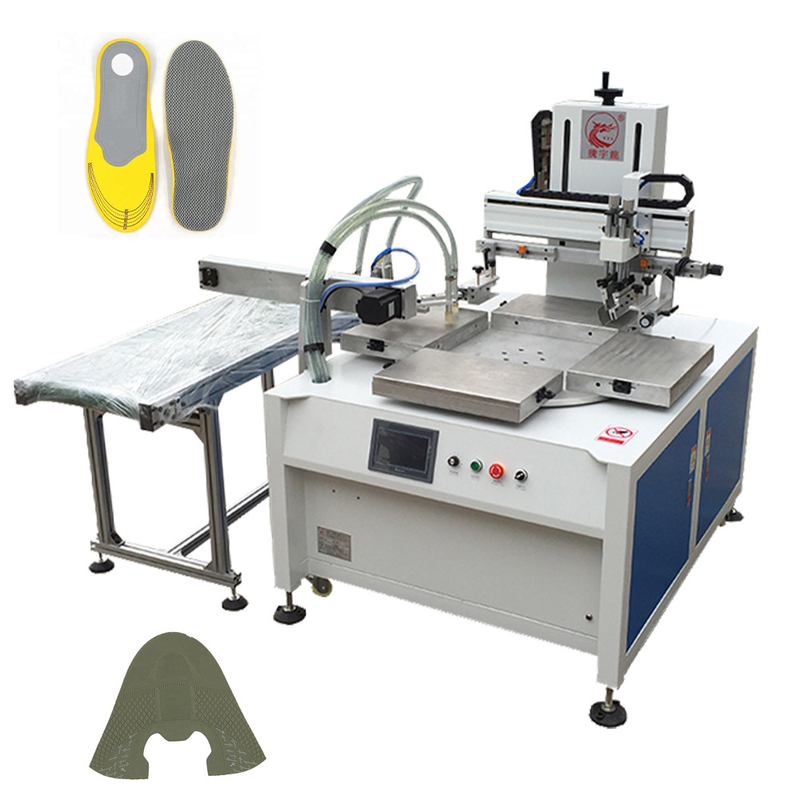

Nike Adidas Silk Printer Tshirt Small Automatic Screen Printing Machine With Automatic Material Receiving Function
By usage
(1) Manual screen printing machine: It is generally composed of hinge support, printing platform and screen plate, and all actions are manually operated.
(2) Semi-automatic screen printing machine: Various actions during printing are partially automatic, and the rest are still manual screen printing machines. - Generally speaking, the squeegee, ink distribution and screen frame automatic are 1/4 automatic screen printing machine, and the squeegee, ink distribution, screen frame and substrate adsorption are all automatic as 1/2 automatic screen printing machine printing press. In addition, the substrate feeding can also be automatically 3/4 automatic screen printing machine.
(3) Automatic screen printing machine: The automatic printing lifting, conveying, drying and collecting and stacking mechanisms are added before and after the 3/4 automatic screen printing machine. The printing speed is significantly higher than that of the semi-automatic machine, up to 1500 prints. /hour or more.
(4) Screen printing linkage machine: It is composed of several groups of printing, drying devices and bronzing, creasing, film coating, die-cutting and other devices in series. The substrate is continuously fed in a roll type, with automatic unwinding, automatic winding and positioning control mechanism, which can ensure stable speed, accurate overprinting and consistent tension. The whole machine can be controlled by computer. It is a high-efficiency and full-featured screen printing machine for printing multi-color prints.
Scope of application:

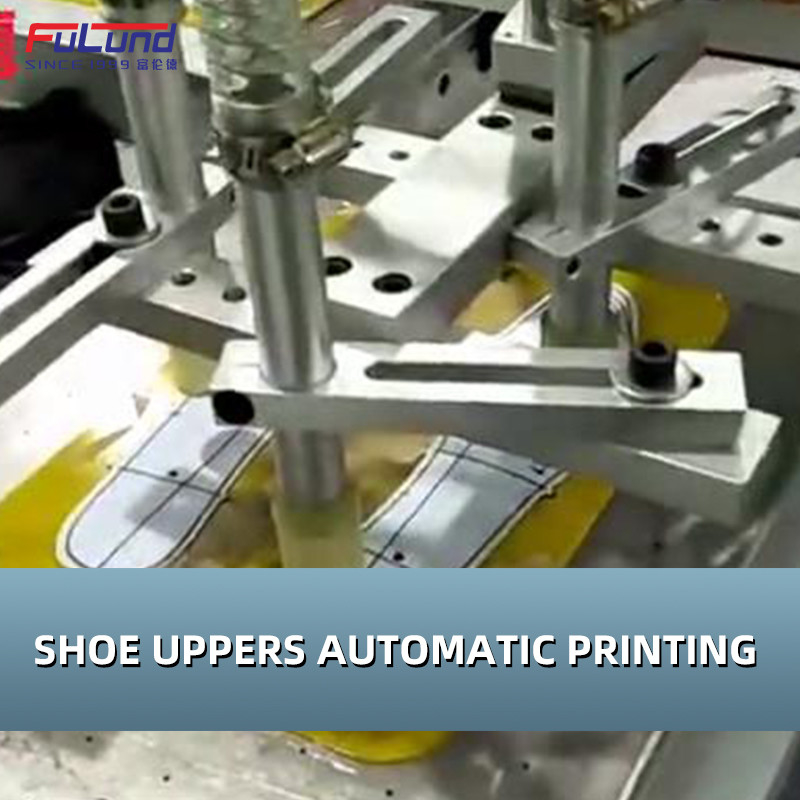

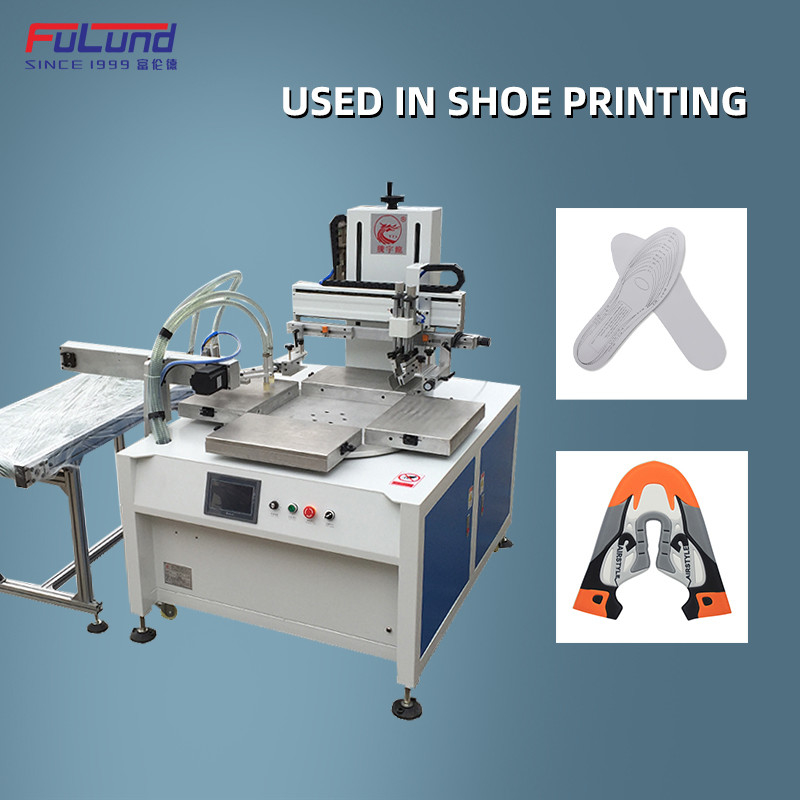

Widely use in the printing of gloves, insoles, shoes upper, mid-sole, bags and other industries , print the position line, mark line and other various shape of cut-parts .
Features:
1, Automatic printing, automatic receiving, can stack according to the setting quantity, no need manual count and can packaging directly.
2, Manual feeding material , suit for any shape material, broad scope.
3, Positioning rapid, change printing plate easily, simple to operate.
4, Reduce manual printing and receiving process, workers only need put the material, high efficiency, 2 Seconds one time, the efficiency is 1.5 times of the traditional process.
| Model No. |
Machine measure(mm) |
Wood case measure(mm) |
N.W/ G.W (kg) | Capacity |
Max printing size |
| FLD-688C | 1740*1500*1530 | 1830*1570*1650 | 450/550 | 1500times/hour | 450*300mm |
| Voltage | Air pressure | Power |
Printing thickness |
Printing platform |
|
| 220V | 4.5~6kpa | 6.9kw | 0~50mm | 600mm |
Contrast:
| Capacity | Feeding way | Receiving way | Printing way | Operator | |
| Traditional machine | 800times/hour | Manual | Manual | Manual put label | 1 |
| FLD-688C | 1500times/hour | Manual | Automatic | Automatic put label | 1 |
Conclustion:Use FLD-688C, four-station, factory can become automatic, one person can operate one set machine, workers only need put the material, no need manual print, can reduce operator fatigue, higher efficiency, can save more labor cost. For example: Monthly labor cost $547, the label cost can save 547x12x1.5=$9846 one year.
Our products are sold all over the world, you can rest assured.
