FuLund Hot sale supplier silicone/rubber machine/Hydraulic press plate press vulcanizing
Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.
Fulund mainly products: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.

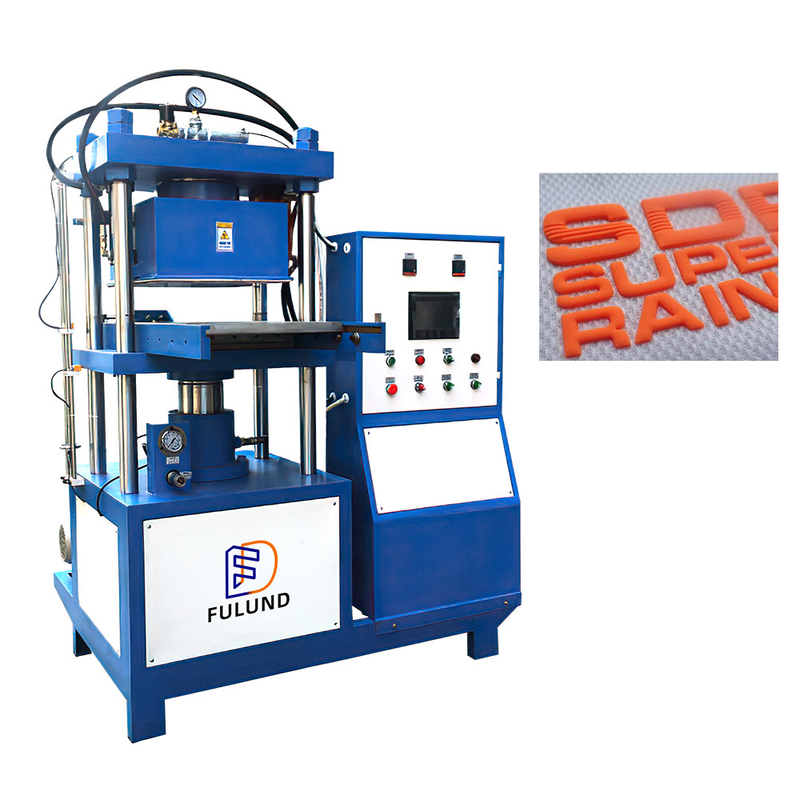

The use of Fulund vulcanizer
Fulund vulcanizers are suitable for vulcanized rubber of various plastic products. They are necessary for plastics, vulcanized rubber cannons, bakelite products, and various thermosetting raw materials. The machines and equipment are widely used and can be used in the metallurgical industry. , chemical industry, metal mines, power stations, seaports, ports and other on-site bonding of transport joints of belt conveyors.
1. Automatic constant temperature
2. Automatic timing
3. Automatic counting
4. Four column structure
| Model | 30T | 40T | 50(63)T |
| Temperature regulation | At room temperature ~ 300 | At room temperature ~ 300 | At room temperature ~ 300 |
| normal temperature-200 degrees heating speed | about15min | about15min | about15min |
| Temperature precision | automatic/±2°C | automatic/±2°C | automatic/±2°C |
| Machine operation | control Circuit | control Circuit | PLC touch-screen |
| Drive way | hydraulic | hydraulic | hydraulic |
| pressure | 10-20Mpa | 10-20Mpa | 10-20Mpa |
| power supply | AC380V ± 5%50/60Hz | AC380V ± 5%50/60Hz | AC380V ± 5%50/60Hz |
| Power: | 12KW | 15KW | 18KW |
| Motor Power | 4KW | 4KW | 5.5KW |
| Heating plate distance | 200MM | 200MM | 200MM |
| Oil cylinder stroke | 200MM | 200MM | 200MM |
| Movement mode of skateboard | Automatic | Automatic | Automatic |
| Speed of rise and fall | ≥15mm/s | ≥15mm/s | ≥25mm/s |
| Pressure regulation mode | Pressure relay | Pressure relay | Digital modulation |
| Hot pressing time | 0.1s to 999s | 0.1s to 999s | 0.1s to 999s |
| Maximum pressure | 300KN | 400KN | 500(630)KN |
| Sliding plate area | 440 * 500MM | 440 * 500MM | 460 * 550MM |
| Heating plate area |
400 × 400MM
|
400 * 400MM
|
400 * 450MM
|
| host volume | 1400 × 2000 × 1600MM | 1400 × 2000 × 1700MM | 1500 × 2000 × 1800MM |
| weight | 1200KG | 1350KG |
1500KG |
Our products are sold all over the world, you can rest assured.
