FuLund Silicone rubber making machine eyeglass strap paste egg form savage silicone production maker Textile Machinery
Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.
Fulund mainly products: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.

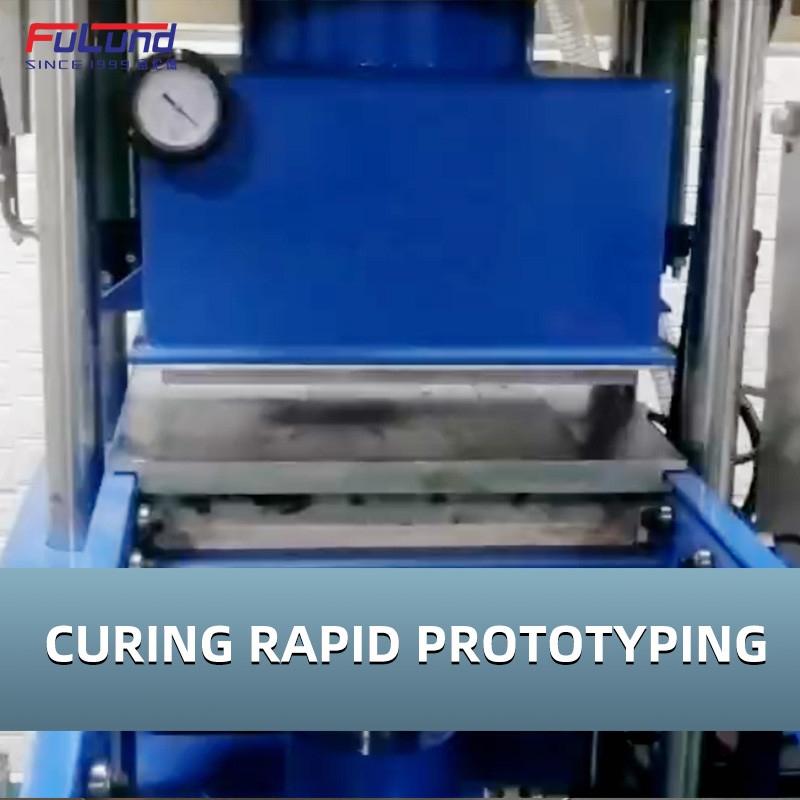

Fulund rubber belt vulcanization is a process from raw rubber to cooked rubber, in which pressure, temperature, and vulcanization time need to be controlled. The vulcanizing machine satisfies this process, the frame and the hydraulic plate provide pressure, and the electric control box and the heating plate provide the temperature and control the vulcanization time. - - Generally, the vulcanization temperature of domestic ordinary rubber belts is 145 degrees, the vulcanization pressure does not exceed 1.5mpa, and the vulcanization time varies from 30 to 60 minutes depending on the tape.
1. Automatic constant temperature
2. Automatic timing
3. Automatic counting
4. Four column structure
| Model | 30T | 40T | 50(63)T |
| Temperature regulation | At room temperature ~ 300 | At room temperature ~ 300 | At room temperature ~ 300 |
| normal temperature-200 degrees heating speed | about15min | about15min | about15min |
| Temperature precision | automatic/±2°C | automatic/±2°C | automatic/±2°C |
| Machine operation | control Circuit | control Circuit | PLC touch-screen |
| Drive way | hydraulic | hydraulic | hydraulic |
| pressure | 10-20Mpa | 10-20Mpa | 10-20Mpa |
| power supply | AC380V ± 5%50/60Hz | AC380V ± 5%50/60Hz | AC380V ± 5%50/60Hz |
| Power: | 12KW | 15KW | 18KW |
| Motor Power | 4KW | 4KW | 5.5KW |
| Heating plate distance | 200MM | 200MM | 200MM |
| Oil cylinder stroke | 200MM | 200MM | 200MM |
| Movement mode of skateboard | Automatic | Automatic | Automatic |
| Speed of rise and fall | ≥15mm/s | ≥15mm/s | ≥25mm/s |
| Pressure regulation mode | Pressure relay | Pressure relay | Digital modulation |
| Hot pressing time | 0.1s to 999s | 0.1s to 999s | 0.1s to 999s |
| Maximum pressure | 300KN | 400KN | 500(630)KN |
| Sliding plate area | 440 * 500MM | 440 * 500MM | 460 * 550MM |
| Heating plate area |
400 × 400MM
|
400 * 400MM
|
400 * 450MM
|
| host volume | 1400 × 2000 × 1600MM | 1400 × 2000 × 1700MM | 1500 × 2000 × 1800MM |
| weight | 1200KG | 1350KG |
1500KG |
Our products are sold all over the world, you can rest assured.
