Industrial glass automatic screen printing machine
The composition unit of the glass processing automatic production line is divided into three sections: feeding, printing and discharging. It can be combined with the front and rear processes to form a production line. It has the functions of automatic glass online connection, automatic positioning and printing, and automatic return after printing.
Industrial glass automatic screen printing machine
In order to improve the degree of automation, the front section of the wire body can be automatically reclaimed by a robot, and the rear section can be automatically stacked or automatically transported to the drying unit by a robot. Mechanical lifting screen, automatic positioning and printing, automatic upper and lower glass, etc. There are vertical double-column and vertical four-column.
Professionally used in flat glass, acrylic plate, light guide plate, metal plate type precision screen printing.
Scope of application:

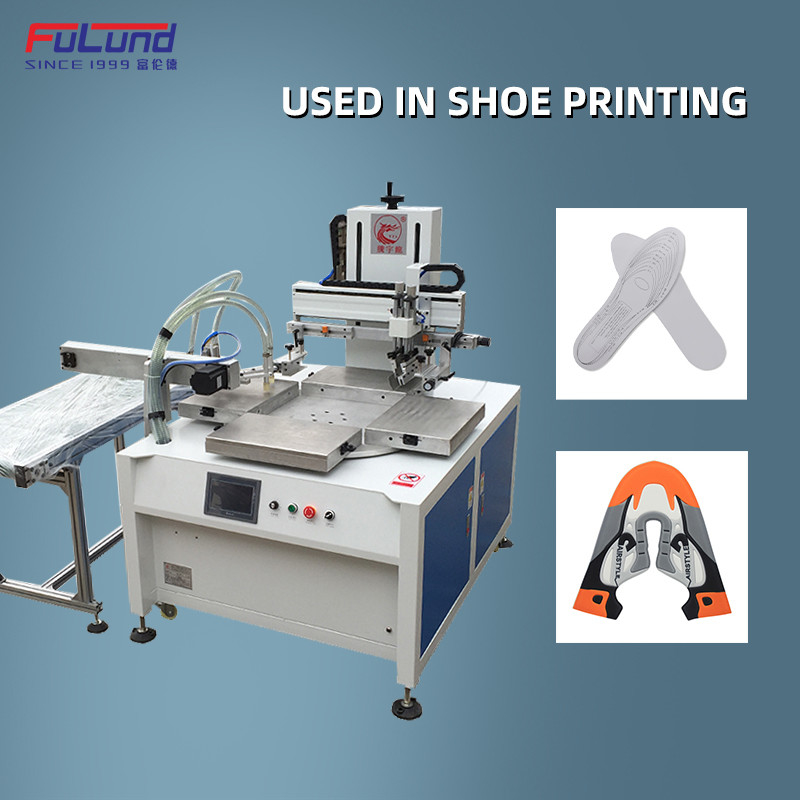

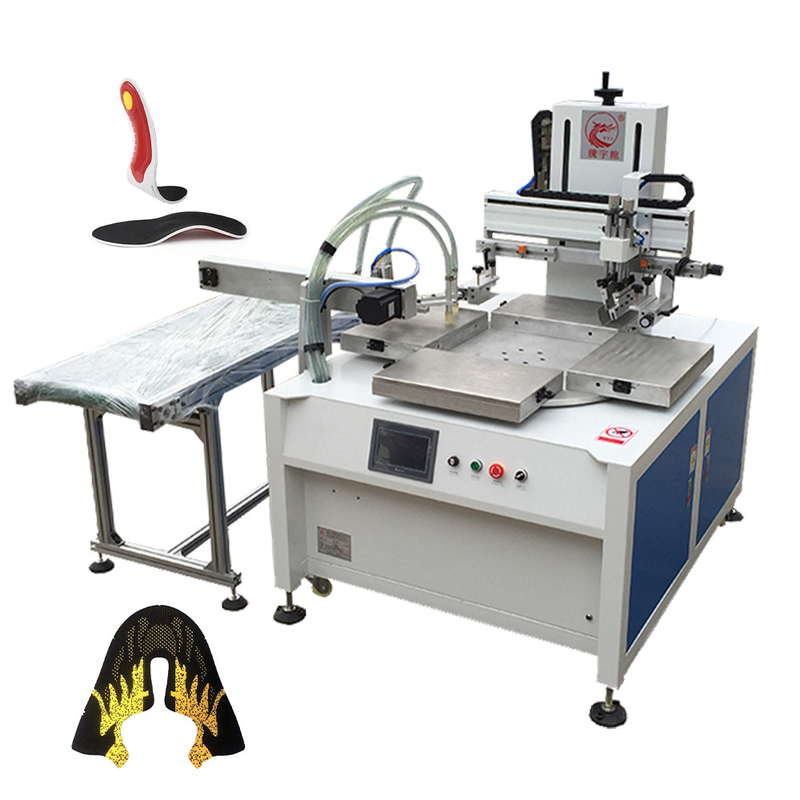

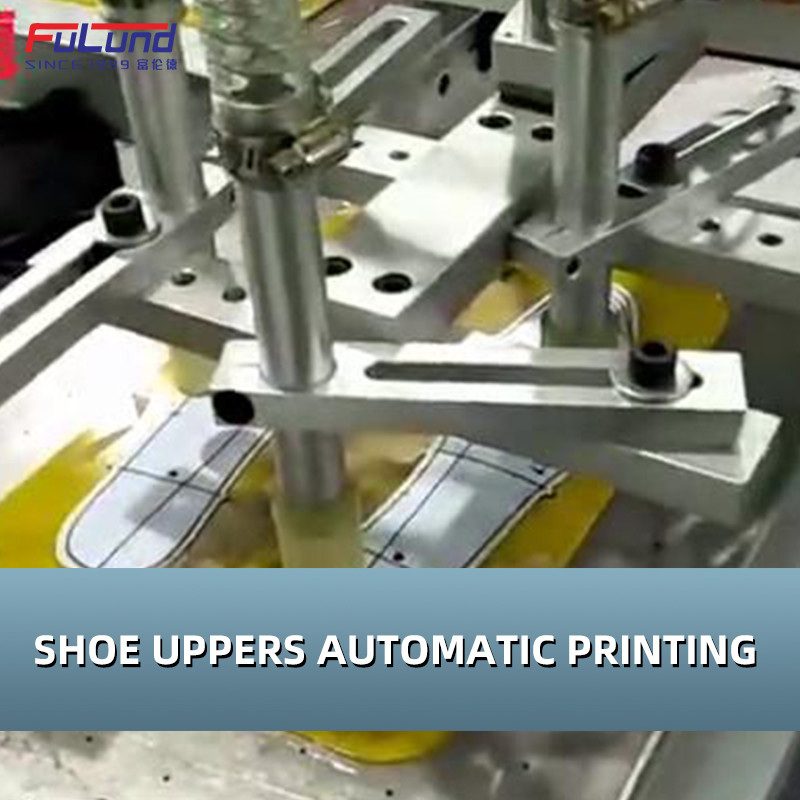

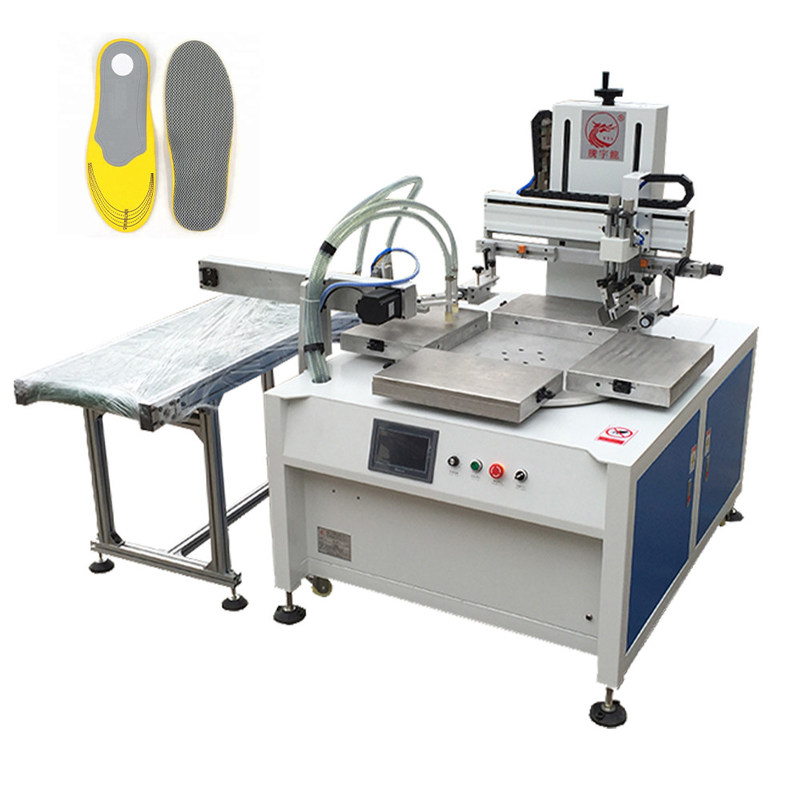

Widely use in the printing of gloves, insoles, shoes upper, mid-sole, bags and other industries , print the position line, mark line and other various shape of cut-parts .
Features:
1, Automatic printing, automatic receiving, can stack according to the setting quantity, no need manual count and can packaging directly.
2, Manual feeding material , suit for any shape material, broad scope.
3, Positioning rapid, change printing plate easily, simple to operate.
4, Reduce manual printing and receiving process, workers only need put the material, high efficiency, 2 Seconds one time, the efficiency is 1.5 times of the traditional process.
| Model No. |
Machine measure(mm) |
Wood case measure(mm) |
N.W/ G.W (kg) | Capacity |
Max printing size |
| FLD-688C | 1740*1500*1530 | 1830*1570*1650 | 450/550 | 1500times/hour | 450*300mm |
| Voltage | Air pressure | Power |
Printing thickness |
Printing platform |
|
| 220V | 4.5~6kpa | 6.9kw | 0~50mm | 600mm |
Contrast:
| Capacity | Feeding way | Receiving way | Printing way | Operator | |
| Traditional machine | 800times/hour | Manual | Manual | Manual put label | 1 |
| FLD-688C | 1500times/hour | Manual | Automatic | Automatic put label | 1 |
Conclustion:Use FLD-688C, four-station, factory can become automatic, one person can operate one set machine, workers only need put the material, no need manual print, can reduce operator fatigue, higher efficiency, can save more labor cost. For example: Monthly labor cost $547, the label cost can save 547x12x1.5=$9846 one year.
Our products are sold all over the world, you can rest assured.
